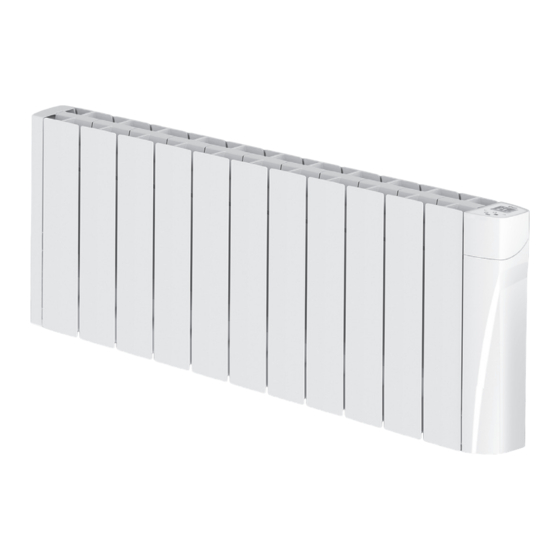

- Page 1 TCP Smart Wi-Fi conservatory radiator Digital electric radiator with thermal fluid and Wi-Fi inside module INSTRUCTION & INSTALLATION GUIDE...
- Page 2 This product is filled with a precise amount of special oil that does not need any maintenance. Any repairs requiring the opening of the oil tank must only be done by an competent professional or TCP Smart after- sales service personnel, who should also be notified should an oil leak be noticed.
-
Page 3: Table Of Contents
4.3. Turn On and Off.........................7 4.4. Submenu configuration ......................8 4.5. Locking touchpad ........................9 4.6. Selecting MANUAL, AUTOMATIC or PILOTE WIRE ..............9 4.7. Advance features of the TCP Smart radiator .................12 4.8. Wi-Fi pairing ..........................12 5. Maintenance & Cleaning ........................13 6. Guarantee............................14... -
Page 4: Tcp Smart Technical Specifications
1. TCP Smart Technical Specifications CRI1100RADC CRI1300RADC CRI1500RADC MODEL No. Elements DIMENSIONS 1,140 1,300 Width (mm) Height (mm) Depth (mm) Installed Depth (mm) MECHANICAL CHARACTERISTICS Armoured steel heating element High purity aluminium Thermal fluid Fireproof PC/ABS panel with keypad Fireproof left side cover PC/ABS 18.5... -
Page 5: Tcp Smart Radiator Installation
The control panel should be located at least 600 mm distance from any wet areas. 3. TCP Smart radiator Installation 3.1. Mounting The product works by means of natural air convection (Figure 1). -
Page 6: Template Measurements Per Model
364 mm 444 mm 1500RADC 880 mm 400 mm 444 mm 4. TCP Smart radiator Information & Instructions 4.1. Touchpad Settings / Back ON/OFF / Confirm Decrease temperature / Move down Increase temperature / Move up Manual mode/ Automatic mode... -
Page 7: Screen
4.2. Screen Hourly programming Selected temperature Wi-Fi connection Current time and day indicator Heating element on Open Windows indicator Comfort mode Energy consumption indicator Eco mode Anti-Frost mode Locked keypad Manual mode Automatic mode Pre-program mode 4.3. Turn On and Off To turn the product on press the button once. -
Page 8: Submenu Configuration
4.4. Submenu configuration Press the button to access the configuration menu. Then use the buttons to navigate to settings. Press the button to access. 4.4.1. Set the day and time To set the day or time select the CLOCK option. Use the buttons to select the correct time and press the button to confirm. -
Page 9: Locking Touchpad
4.5. Locking touchpad To lock the keypad, press and hold the buttons together for 3 seconds. The symbol will appear to the right of the screen.To unlock the keypad, press and hold th buttons together for 3 seconds. The symbol will disappear from the right of the screen. 4.6. - Page 10 4.6.2 AUTOMATIC mode When automatic mode is selected, the programming already established in the product will be activated. You can choose between the four pre-installed schedules in your TCP Smart product: PRE-PROGRAM 1 Mon-...
- Page 11 If you want to create your own programming: STEP 1 1. Select COMFORT: Temperature between: 19 – 30°C Use the buttons to adjust the temperature. Press to confirm. 2. Select ECO: Temperature between: 7.5 – 18.5°C Use the buttons to adjust the temperature. Press to confirm.
-
Page 12: Advance Features Of The Tcp Smart Radiator
4.7. Advanced features of the TCP Smart radiator The TCP Smart radiator includes four advanced functions. To activate or deactivate one of the functions below, press the button to access the settings menu. Use the buttons to scroll through the menu until you find the POWER submenu. Press the button to access the submenu: 1. -
Page 13: Maintenance & Cleaning
The symbol of the container crossed out over a horizontal line is marked on all of TCP Smart products to remind the consumer of the obligation to separate them on disposal. The consumer should contact the local authority or original point of sale to learn more about the correct... -
Page 14: Guarantee
TCP Smart. 6.1. Any incident that you might detect in your TCP Smart product can be sorted by the product seller or quickly by the manufacturer. Please check https://www.tcpsmart.eu/faq/ for help and technical support. -
Page 15: Information Requirements For Erp Directive. Commission Regulation (Eu) 2015/1188
The defective parts or parts removed or replaced shall become the property of TCP Smart. 6.4. The technical service of TCP Smart will advise you if you need to buy any parts not covered under the guarantee or out of guarantee. - Page 16 This also applies to products already on order provided that such alterations can be made without subsequent changes to specifications already agreed. All trademarks in this material are the property of TCP Spmart. TCP Smart...
