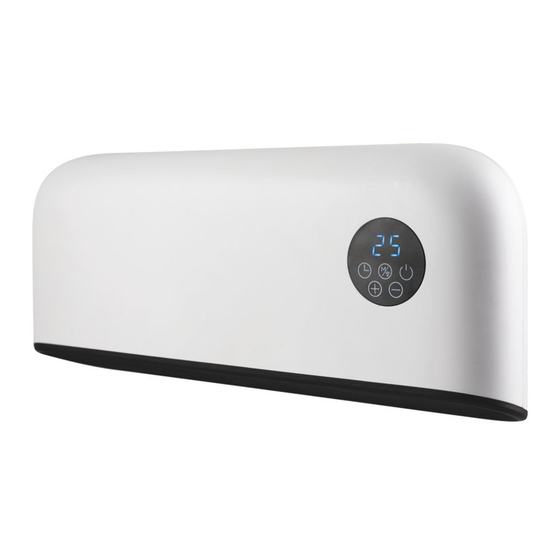

WIFI WALL HEATER
TCP Smart Wifi app-controlled Wall Heater is a perfect for quickly heating your room. Perfect for bathrooms and
home office environments. The powerful 2000W ceramic heater is installed directly to the wall and is powered
through a 13A socket. Exceptional style and size provides the perfect heating solution. The Smart features
allow for full voice via Alexa and Google or direct control via the TCP Smart App. You can set schedules and
times and accurately control your desired heating temperature through the electronic thermostat. Provided with
a handy remote control especially if installed at a high level. Save money through efficiently heating the room
and not the home.
This product is only suitable for well insulated spaces or occasional use.
USER INSTRUCTIONS
MODEL
SMAWHHEAT2000WHOR705
IMPORTANT:
These instructions are for your safety. Please read thoroughly before use and
retain for future reference.
If you are in any doubt about installing this product, consult a
INSTALLATION
INSTRUCTIONS
This product is suitable for indoor use only. It is IP
attach to surfaces which are damp, freshly painted or otherwise electrically conductive (eg metallic
surfaces).
ø 8mm
5-7mm
Warning:
POWER
AC2 0V 50-60Hz 2000W Class II
qualified electrician.
360mm
rated. Cannot be used underwater. Do not
1
2
Advertisement
Table of Contents
Related Manuals for TCP Smart SMAWHHEAT2000WHOR705
Summary of Contents for TCP Smart SMAWHHEAT2000WHOR705
- Page 1 13A socket. Exceptional style and size provides the perfect heating solution. The Smart features allow for full voice via Alexa and Google or direct control via the TCP Smart App. You can set schedules and times and accurately control your desired heating temperature through the electronic thermostat. Provided with a handy remote control especially if installed at a high level.
-
Page 2: Location Of Installation
Warning: Before using the heater, make sure it’s mounted tightly on the wall. LOCATION OF INSTALLATION This product can be installed in a bathroom but only in the area designated by the IP rating – Zone 3 – see location information below. Suitable for indoor only. -
Page 3: Control Panel
WARNINGS Always use the heater in an upright position. If the supply cord is damaged, it must be replaced by the manufacturer, their service agent or a similarly qualified person in order to avoid a hazard. Do not use this heater in the immediate surroundings of a bath, a shower or a swimmingpool. -
Page 4: On/Off Button
Press once to turn the device on. Press again to turn the device off. This feature can be performed using the TCP Smart App. Please note: The fan will continue to emit heat for 60 seconds before turning off completely. - Page 5 01:00am – 07:00am ECO mode 07:00am – 00:00am comfort mode. (Monday-Friday) Pre-programmed schedule. Please note: this schedule cannot be adjusted. 00:00am – 01:00am comfort mode, 01:00am – 05:00am ECO mode 05:00am – 09:00am comfort mode, 09:00am – 19:00pm ECO mode 19:00pm –...
-
Page 6: Timer Button
Use these buttons to increase or decrease the temperature, and to increase or decrease time within timer function This feature can be performed using the TCP Smart App. TIMER BUTTON 9 Hr Timer Press once, the screen will display “... -
Page 7: Open Window Function
This feature can be performed using the TCP Smart App. Clock and day of the week setting Press the button for 3 seconds. The screen display will show Press to select the day: ” ”. -
Page 8: Certification Conformity
CERTIFICATION CONFORMITY Hereby, Technical Consumer Products Ltd declares that the radio equipment type TCP Smart Wifi Fan 1500W – White, TCP Smart Wifi Fan 1500W – Black, is in accordance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address –... - Page 9 3 seconds until it bleeps and the W i Fi LED light blinks rapidly, the device is now in paring mode. In the TCP Smart App, enter your WiFi password and follow the instructions in the App to connect.
- Page 10 USING THE APPLIANCE W HE N C O NNE C TE D TO WIFI Main screen showing functions Provides information on the various functions Target Room Temperature Current Room Temperature Selected Mode: Comfort, Eco, P1, P2, P3 and Anti Frost Target Room Temperature Timer function Eco Mode...
- Page 11 When the ambient temperature drops by 4℃ within 2mins, the heater will register the possibility of an open window in the room. If this happens, it will stop heating and enter standby mode. TCP LTD, 1 EXCHANGE COURT, COTTINGHAM ROAD, CORBY, NN17 1EW...
- Page 12 Contact details TCP LTD, 1 EXCHANGE COURT, COTTINGHAM ROAD, CORBY, NN17 1EW...
