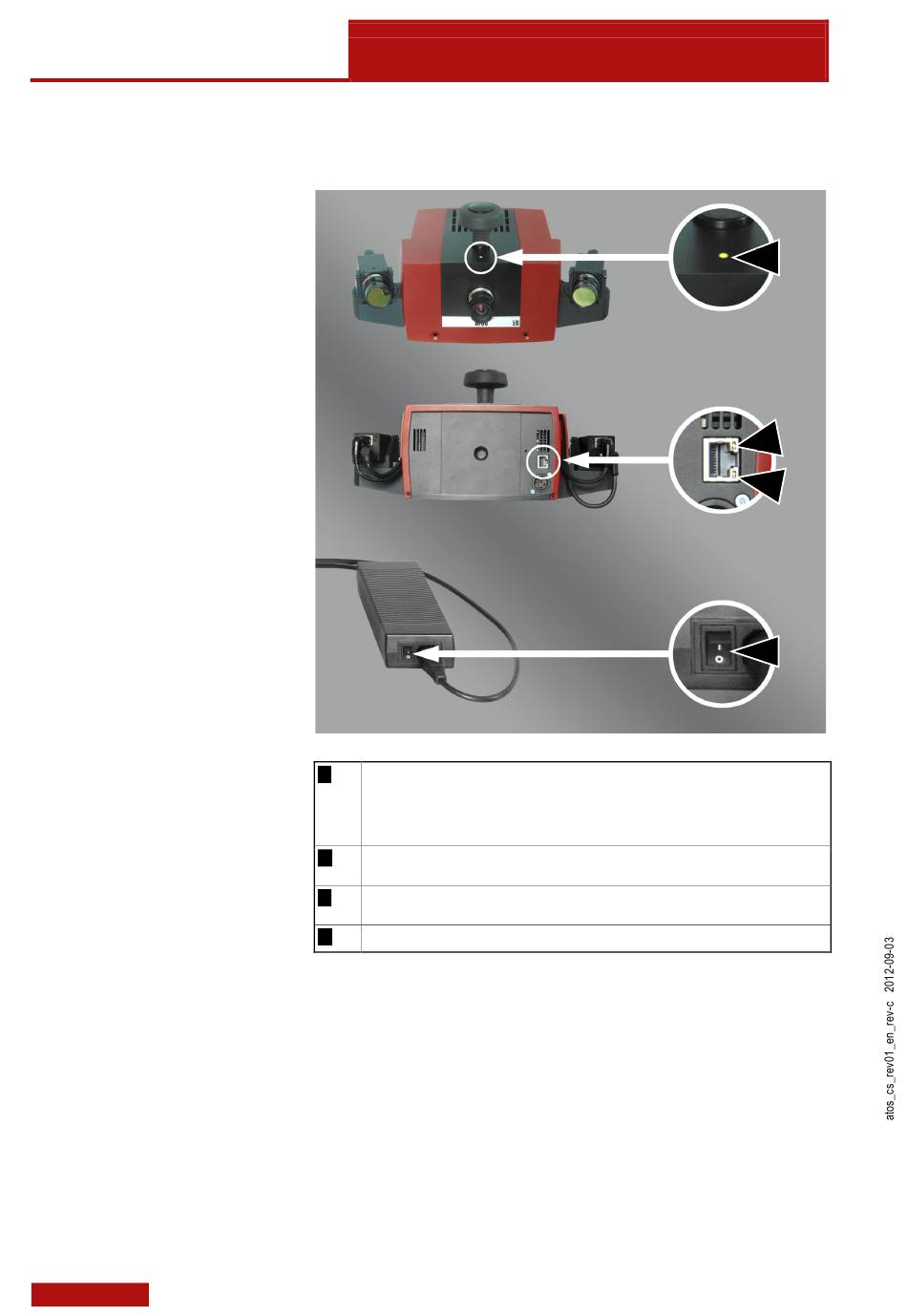

Standard Control Elements and LED Indicators

6. Standard Control Elements and LED Indicators
a
•
Shows green light if the sensor is ready for operation.
• Shows orange light while the operating system of the sensor starts.
• Shows red light in the moment of being switched on or in case of a failure. You
will find additional status information on the Web interface of the sensor, see 6.1.
b
• Yellow LED, illuminates in case of active Gigabit transmission at interface CAM L.
c
•
Green LED, illuminates in case of data transmission at interface CAM L.
d
•
Power switch to switch the sensor on and off.
a
b
c
d
