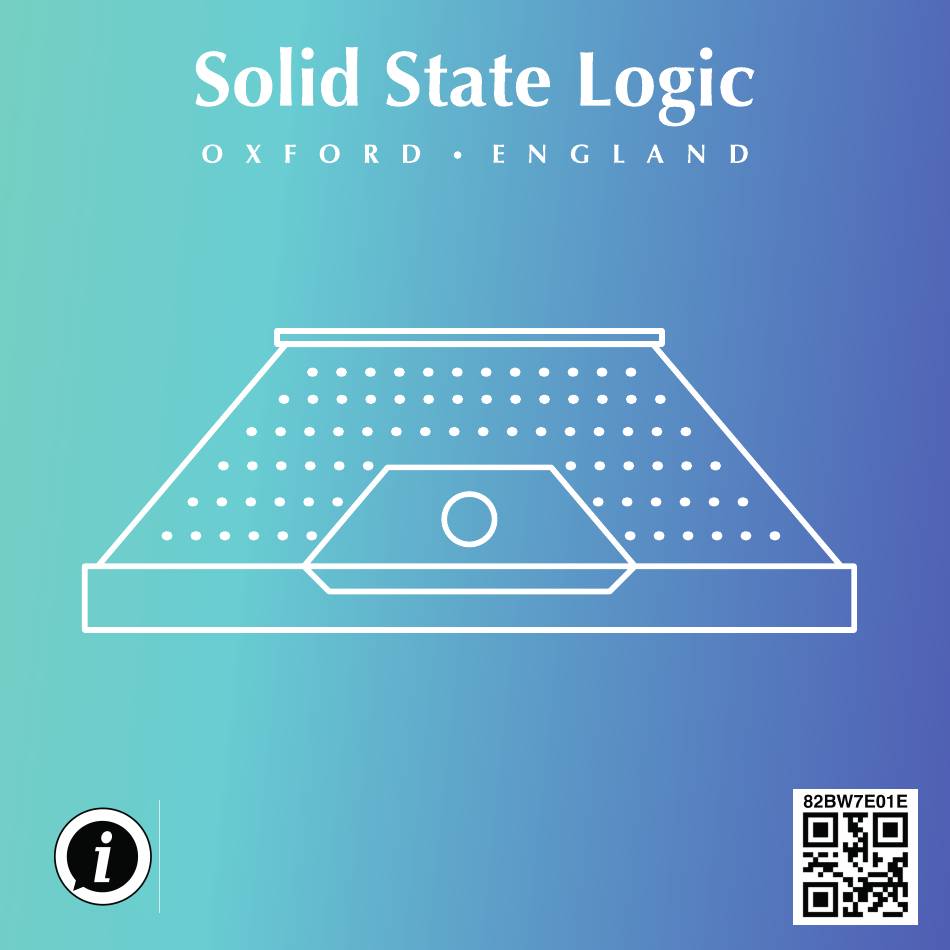

SSL CONNEX
Quick Start Guide
Important
Information Inside
82BW7E01C

Advertisement

loading
Need help?

Need help?

Do you have a question about the SSL CONNEX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Solid State Logic SSL CONNEX

Summary of Contents for Solid State Logic SSL CONNEX

  • Page 1 SSL CONNEX Quick Start Guide Important Information Inside 82BW7E01C...
  • Page 2 In The Box SSL CONNEX Unit ¼” Thread Adapter SSL CONNEX 2 m USB C-C Cable USB A-C Adapter Quick Start Guide Quick Start & Safety Important Guide Information Inside 82BW7E01C...
  • Page 3 Features • Quad microphone array for recording and video conferencing applications • Optimised signal processing modes • Automatic smart mixer for group calls • High quality headphone output with mic loopback option for ambient monitoring • Touch-sensitive controls to adjust headphone level and mute the mic •...
  • Page 4 Setting Up Camera Mic Stand Tripod (¼”)

  • Page 5: Usb Connection

    USB Connection Apple OSx 10.14 (Mojave) or later. Microsoft Windows 10 or later* User Guide Solo/Group Modes - Ch 1 & 2 : Dual Mono Vocal/Music Modes - Ch 1 & 2 : Stereo Ch 3 - 6 : Discrete mics (refer to User Guide)* *Visit solidstatelogic.com/support for multichannel Windows drivers...
  • Page 6 Controls • Tap SSL logo to toggle mic mute • Red = Mic muted • Push To Talk While muted, tap & hold to unmute mic temporarily • Cough Switch While unmuted, tap & hold to mute mic temporarily Tap to adjust Red = Headphones headphone volume muted (vol 0)
  • Page 7 Settings & Audio Modes • Hold & buttons for 2s to enter setup • SSL logo pulses when in setup mode • Audio Mode: Tap SSL logo to change mode. Logo colour indicates selection: Solo (directional; e.g. conf. calls, podcasting) Group (e.g.

  • Page 8: Troubleshooting And Faqs

    Troubleshooting and FAQs Visit the Solid State Logic Help Centre to check compatibility with your system and fi nd answers to your questions. www.solidstatelogic.com/support https:/ /www.solidstatelogic.com/support Solid State Logic Help Centre SSL Connex Results Scan QR code on unit for full product details...
