Thank you for purchasing Huepar 360° Self-leveling Cross Line Laser Level.
Before using the product, please read this manual thoroughly to ensure proper use.
• Product Overview
• Safety Instructions
• Charging and Battery Safety
• LCD Display & LED Indicator
• Operation
• Remote Control (Optional)
• Huepar Bluetooth APP/APK (Optional)
• Specifications
• Warranty

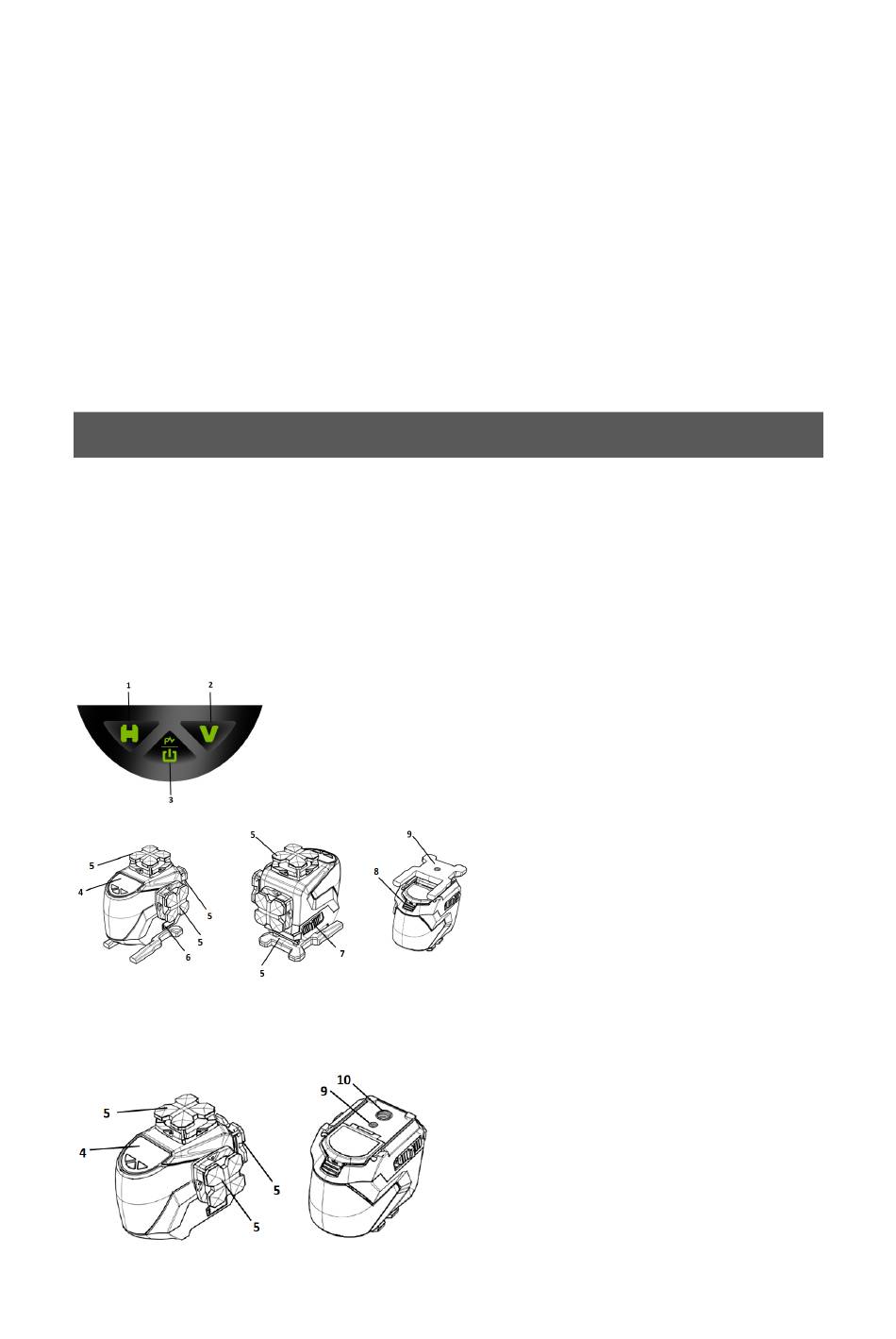

Product Overview
1.
Switch Horizontal Line(s)
2.
Switch Vertical Lines
3.
ON / OFF Button & Pulse Mode Button
4.
LCD Display or LED Indicator
5.
Laser Windows
6.
Type-C Charging Port
7.
Pendulum / Transit Lock
8.
Battery Compartment
9.
1/4"-20 Threaded Mount
10. 5/8"-11 Threaded Mount
S04CG/S04CR & S04CG-L/S04CR-L:
S03CG/S03CR & S03CG-L/S03CR-L:
S03DG/S03DR & S03DG-L/S03DR-L:
Advertisement
Table of Contents
Related Manuals for Huepar S02CG
Summary of Contents for Huepar S02CG
- Page 1 Thank you for purchasing Huepar 360° Self-leveling Cross Line Laser Level. Before using the product, please read this manual thoroughly to ensure proper use. • Product Overview • Safety Instructions • Charging and Battery Safety • LCD Display & LED Indicator •...
-
Page 2: Safety Instructions
S02CG/S02CR Safety Instructions Please read thoroughly and comply with the Safety Instructions and User Manual before using this product. Failure to read and follow may void the warranty. WARNING! CLASS Ⅱ LASE R PRODUCT COMPLIES WITH CFR 1040.10 AND 1040.11 Max. -
Page 3: Lithium Battery Safety
User Guide, Maintenance and Care • When not in use please power OFF the tool and place the pendulum lock in locked position. • The laser tool is sealed and calibrated at the plant to the accuracy specified. • It’s recommended to carry out an accuracy check before its first use and periodic checks during future use especially for precise layouts. - Page 4 15 minutes, and seek emergency care immediately. LCD Display & LED Indicator Different models have different status display indicators. Please confirm the purchased model according to the label on the machine. If you have any questions, please contact the dealer. S02CG S03CG S03DG S04CG S03CG-L...
-
Page 5: Power Indicator
Icons on LCD Display: A. Icons Introduction 1. Battery Level 2. Pendulum Locked & Unlocked Status 3. X Axis Tilt Angle 4. Y Axis Tilt Angle 5. X/Y Axis Tilt Direction 6. Pulse Mode Icon B. Battery Level Icon on LCD Display: •... -
Page 6: Operation
• The pendulum lock and unlock status icon ( ) will be displayed on the LCD and Huepar APP/APK software page to indicate that it is currently in self-leveling mode or manual mode. Turn OFF the laser tool: A. - Page 7 again to the Locked Position to turn OFF the laser tool. • Method 2: When the pendulum is in the Locked Position, press and hold for ≥ 2 seconds to Turn OFF the laser tool. C. Automatic Power OFF: • In Manual Mode, when all laser lines are switched OFF as well as the LCD is still ON, the laser tool will Automatically Turn OFF after about 5 minutes of inactivity.
- Page 8 Connect the laser tool to Bluetooth APP/APK: Step 1: Download Huepar APP/APK Method 1: Scan the QR code Method 2: Search "Huepar" in iPhone App Store or Google Play Method 3: Click the link: http://xwayserver.pairlink.com.cn/79813391439 Step 2: Turn on Bluetooth on your phone...
-
Page 9: Function Introduction
Function Introduction: 1. Smart Pendulum Lock Status: The unlocked or locked icon indicates the status of the pendulum. 2. Bluetooth Connection Status 3. Laser Tool Status Reminder: Under self-leveling mode, icon (3) will be displayed as reminder if the tool is beyond self-leveling range. 4. -
Page 10: Specifications
Bluetooth in the vicinity of medical devices(eg., cardiac pacemakers, hearing aids). This may cause interference. • The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Huepar is under license. Specifications Model... -
Page 11: Warranty
Battery) S03DG(-L): About 7hrs S03DR(-L): About 9 hrs S04CG(-L): About 5 hrs S04CR(-L): About 7 hrs S02CG: About 2 hrs S02CR: About 3.5 hrs Reference Operating Time S03CG(-L): About 1.5 hrs S03CR(-L): About 2.5 hrs (with ˝AA˝ Battery above S03DG(-L): About 1.5 hrs S03DR(-L): About 2.5 hrs... - Page 12 You can enjoy a 12 months limited warranty but it can be up to 24 months if you register as a member through the product registration. Please scan the QR code to activate your priority. If you encounter any question or confusion about the product, please feel free to contact us: support@huepar.com...
- Page 13 FCC ID: 2AXME-S04CG FCC Caution This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
