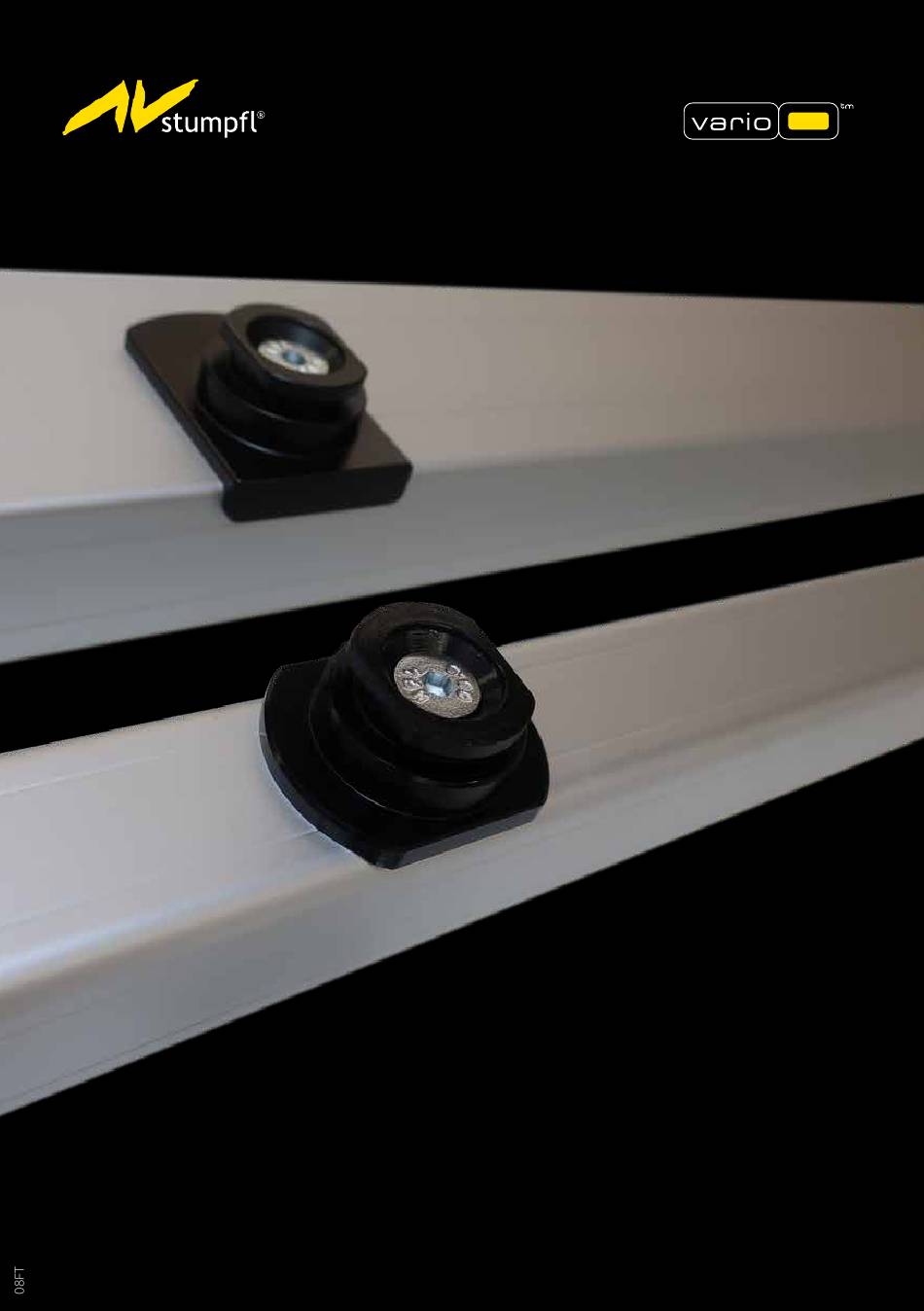

- Page 1 SHIFT-LEG ADAPTION INSTRUCTION FOR VARIO SCREENS...
-
Page 2: Table Of Contents
INDEX GENERAL STANDARDS, REGULATIONS AND TECHNICAL SPECIFICATION SAFETY OPERATION, MAINTENANCE AND SERVICE WARRANTY VARIO FRAME MODIFICATION HEIGHT, LEG LENGTH AND ADAPTER POSITIONING ADAPTER IN THE BASIC FRAME THROUGH HOLE 6MM EXTENSION HOLE 8MM ADAPTER MOUNTING... -
Page 3: General
The safety section provides information about important safety aspects for the protection of persons, frame and projection materials. Task-related warnings/notes are also contained in the individual chapters. Read instructions through completely before proceeding and keep for future reference. You can find manuals electronically on our website: www.AVstumpfl.com/downloads PACKAGING MATERIAL WARNING Danger of suffocation! •... - Page 4 SET UP-ASSEMBLY MECHANICAL HAZARDS Danger of injury due to improper assembly. Make sure all frame parts assembled correctly and all hinges and joints are locked before raising screen to standing position. Falling parts can cause severe injury or death! Projection surface damage in case of faulty assembly or set up. Make sure all frame parts assembled correctly and all hinges and joints are locked before one unfold and attach the projection surface.
- Page 5 WARNING Mobile projection screens are developed for indoor use only. Failure to follow warning may result in personal injury due to unforeseen acts of nature. Any damage and consequential damage caused by outdoor use is not covered by warranty. BASIC SAFETY REQUIREMENTS Basic safety requirements for „flying“...
-
Page 6: Operation, Maintenance And Service
DISASSEMBLY For disassembly the same safety instructions apply as for assembly and set up. Bring down a projection screen with the appropriate number of people to avoid falling over of the screen. Falling parts can cause severe injury or death! OPERATION, MAINTENANCE and SERVICE FRAME ELEMENTS, LEGS and ACCESSORIES: The frame elements, legs and additional elements are maintenance-free. -
Page 7: Warranty
Mobile projection screens are developed for indoor use only. Any damage and consequential damage caused by outdoor use is not covered by warranty. The general terms and conditions are available at http://avstumpfl.com/agb LIMITATION OF LIABILITY All the details in this manual were compiled in consideration of the standards and legal regulations applicable at this time, as well as the experience of the manufacturer and qualified staff. -
Page 8: Vario Frame Modification
VARIO FRAME MODIFICATION ADAPTION FOR SHIFT LEGS All VARIO projection screens that are already in use can be easily adapted subsequently for use with SHIFT legs. You just have to drill a hole and attach an adapter onto the plug-in profiles. As an option, we offer a factory modification with subsequent attachment of additional insert nuts with spacers in order to be able to mount the frame adapter for SHIFT-legs. -
Page 9: Height, Leg Length And Adapter Positioning
HEIGHT, LEG LENGTH AND ADAPTER POSITIONING Determination of the adapter position and leg length according to the frame height and the desired setup height (s). (Picture Vario 64) (Picture Vario 32) 1. SETUP HEIGHT: Choice of setup height A For maximum installation heights, please refer to the corresponding data sheet for the type of leg used. 2. -
Page 10: Adapter In The Basic Frame
3.2. Distance from the open profile end (B): 3.3. Distance from the profile end (side of plug-in profile): VARIO 32: 135mm VARIOCLIP LOCK 64: 170mm VARIO 64: 170mm VARIOCLIP CLAMP: 170mm VARIO LOCK 64: 170mm VARIOCLIP 64: 170mm ADAPTER IN THE BASIC FRAME (Picture Vario 32) (Picture Vario 64) With low frame heights (less than 350cm) it may be necessary to use an adapter in the upper corner... -
Page 11: Through Hole 6Mm
THROUGH HOLE 6mm First select the position according to the specified minimum distances (see page 9-10). The hole must be drilled at a distance of 16mm from the outer edge of the profile. For a perfectly fitting, vertical drilling, we recommend using a column drill with a vice. Optionally mark the hole on each side accordingly and drill only one wall thickness. -
Page 12: Adapter Mounting
ADAPTER MOUNTING Insert the M6 sleeve nut and mount the frame adapter. A Phillips screwdriver and a 4mm hex key are required. Beware of pinch points! (Picture Vario 32) (Picture Vario 64) - Page 13 AV Stumpfl GmbH | Mitterweg 46 | 4702 Wallern AVstumpfl@AVstumpfl.com | www.AVstumpfl.com | +43 7249 42811...
