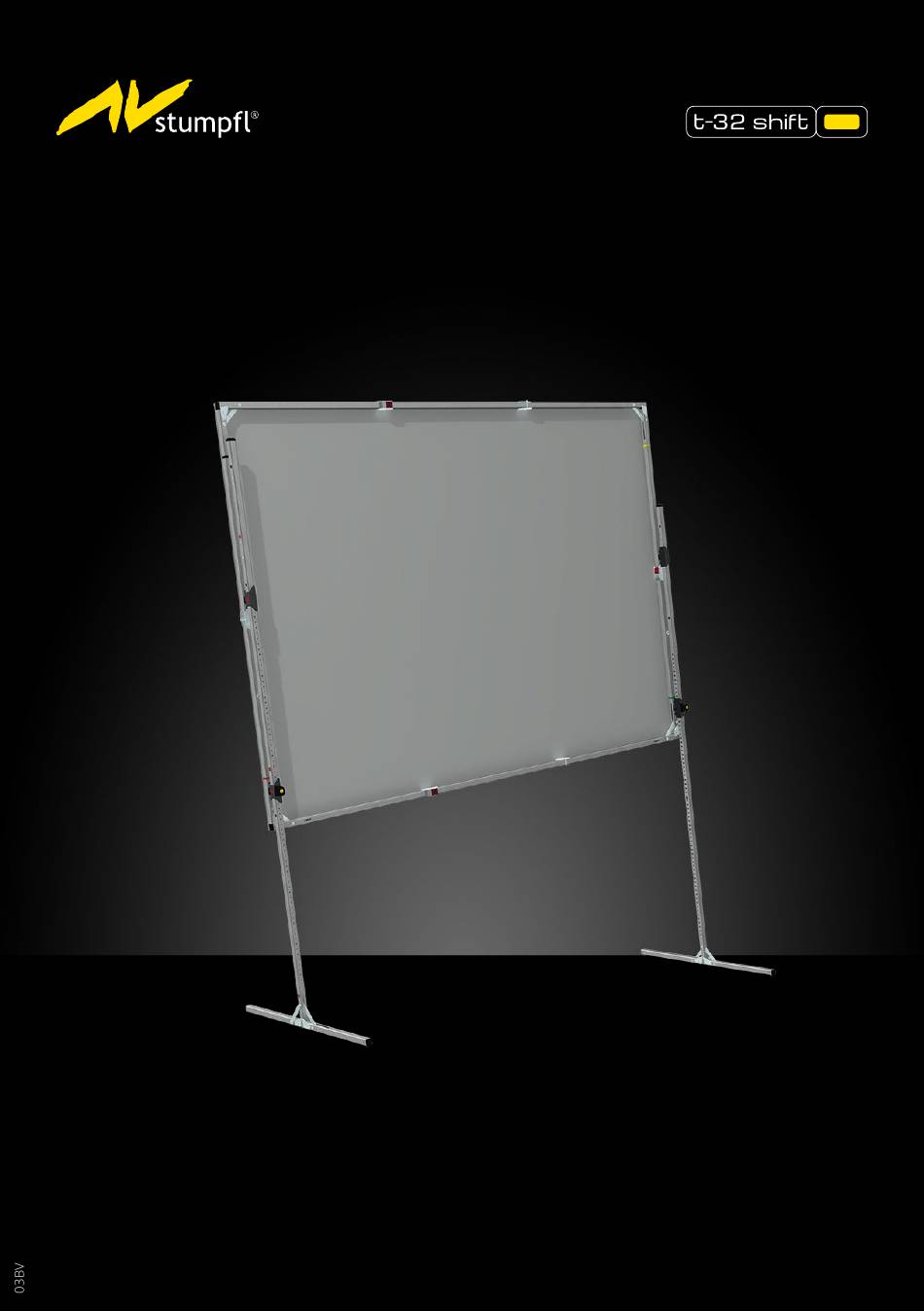

- Page 1 T32-SHIFT INSTRUCTION FOR MOBILE PROJECTION SCREENS...
- Page 2 MONOBLOX 32 MONOCLIP 32 Compact transport volume due to patented snap joint technology Special extruded and hardened aluminum alloy allows maximum stability at minimum weight. T32-SHIFT EXTENSION 110 cm T32-SHIFT ENDMODULE T32-SHIFT EXTENSION 55 cm FRAME ADAPTER Frame adapter und transport lock in yellow bag.
- Page 3 SOFTBAG WITH WHEELS padded , tearproof nylonbag with wheels and carrying straps small 128x25x30 cm big 133x31x35 cm T32-SHIFT BASIC MODULE 116 cm LOCKING- AND SLIDING MODULE on transport profile ASSEMBLY INSTRUCTION...
-
Page 4: Table Of Contents
SAFETY ........................ 5 OPERATION, MAINTENANCE AND SERVICE ..........8 WARRANTY ......................9 LEG VARIANTS ....................10 ADAPTION AND ASSEMBLY .................11 ADAPTERS ......................12 ATTACHING THE T32-SHIFT LEGS ..............13 EXTENSION PARTS ..................15 HEIGHT ADJUSTMENT...................16 DISASSAMBLY ....................17 TRANSPORT LOCK BOLTS ................17 SUBSEQUENT VARIO FRAME MODIFICATION ........18... -
Page 5: General
BACK GENERAL The T32-SHIFT leg makes it possible for JUST ONE person to easily adjust a mobile projection screen‘s height, without having to disassemble it first. The T32-SHIFT can be combined with all existing AV Stumpfl screen systems. STANDARDS, REGULATIONS AND... - Page 6 BACK SET UP-ASSEMBLY MECHANICAL HAZARDS Danger of injury due to improper assembly. Make sure all frame parts assembled correctly and all hinges and joints are locked before raising screen to standing position. Falling parts can cause severe injury or death! Projection surface damage in case of faulty assembly or set up.
- Page 7 BACK WARNING Mobile projection screens are developed for indoor use only. Failure to follow warning may result in personal injury due to unforeseen acts of nature. Any damage and consequential damage caused by outdoor use is not covered by warranty. BASIC SAFETY REQUIREMENTS Basic safety requirements for „flying“...
-
Page 8: Operation, Maintenance And Service
BACK DISASSEMBLY For disassembly the same safety instructions apply as for assembly and set up. Bring down a projection screen with the appropriate number of people to avoid falling over of the screen. Falling parts can cause severe injury or death! OPERATION, MAINTENANCE AND SERVICE FRAME ELEMENTS, LEGS AND ACCESSORIES The frame elements, legs and additional elements are maintenance-free. -
Page 9: Warranty
Mobile projection screens are developed for indoor use only. Any damage and consequential damage caused by outdoor use is not covered by warranty. The general terms and conditions are available at www.AVstumpfl.com/agb LIMITATION OF LIABILITY All the details in this manual were compiled in consideration of the standards and legal regulations applicable at this time, as well as the experience of the manufacturer and qualified staff. -
Page 10: Leg Variants
49“ (125 cm) max: 49“ (125 cm) T32-SHIFT legs can be assembled in four different lengths. According to the screen frame height and the desired set-up height the leg can be assembled with the following lengths: 46“ (118cm), 68“... -
Page 11: Adaption And Assembly
ADAPTION AND ASSEMBLY To prepare your mobile projection screen for use with the T32-SHIFT legs, you have to attach adapters to the backside of the frame – once only. 1-7 Unfold the screen frame with the backside facing upwards. Open the folded frame horizontally 1-3 and then vertically 4-5. -
Page 12: Adapters
BACK ADAPTERS 1-4 Attach the frame adapters to the round „spacers“ on the backside of the screen, with the enclosed countersunk screws, using the hexagonal spanner. 5-7 Flip the frame and attach the projection surface. Beware of pinch points! -
Page 13: Attaching The T32-Shift Legs
BACK ATTACHING THE T32-SHIFT LEGS 1-2 Lay out the leg components next to each bottom corner of the frame. Each component is labeled either with a red or green square, which indicates the corresponding side of the frame. 3 Start with the base module. - Page 14 BACK 4-5 Loosen the locking mechanism. Just pull the button and turn it counterclockwise. 6-7 Next, slide the locking-module onto the lowest point of the base module. Make sure that the colored squares match. 8-9 Lift the base module and place the locking module onto the frame adapter in a horizontal position.
-
Page 15: Extension Parts
BACK EXTENSION PARTS 1-2 Next, start to assemble the extension parts and the end module. Just plug together the components so that the colored labels are on the same side. The snap-lock will engage automatically. 3-6 Attach the sliding module in a slightly off axis angle. -
Page 16: Height Adjustment
BACK HEIGHT ADJUSTMENT 1-7 To adjust the screen height, one can start at the bottom of the scale and simply move the screen up to the preferred position. The T32- SHIFT will lock automatically. The height can be adjusted in one-inch steps (2,54cm). No extra measuring is needed to ensure the frame is level, due to clearly marked height scales. -
Page 17: Disassambly
1-2 The snap lock is released by the red button. The profiles then can be separated. TRANSPORT LOCK BOLTS 1-4 To allow a single person to lift and move the screen, optional transport lock bolts can be attached. For that turn the transport lock bolt against the T32-SHIFT leg. -
Page 18: Subsequent Vario Frame Modification
Optionally we offer a factory-based service of a subsequent attachment of additional insert nuts with spacers to mount frame adapters for SHIFT legs. Beware of pinch points! (picture VARIO 32) AV Stumpfl GmbH | Mitterweg 46 | 4702 Wallern AVstumpfl@AVstumpfl.com | www.AVstumpfl.com | +43 7249 42811...
