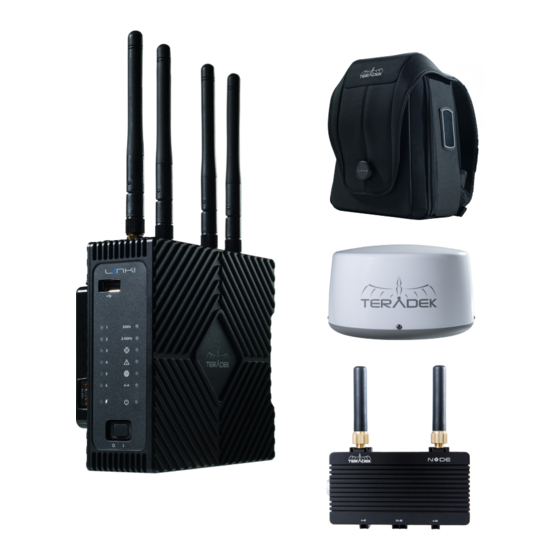

Teradek Link Pro Instructions

DUAL-BAND
WIRELESS
ACCESS POINT
Link Pro packs professional
network bonding into a high
performance Wi-Fi access point,
giving broadcasters, production
companies, and first responders
reliable, high speed internet
access at any location.
A
E
F
G
B
C
A: USB port F: 2.4 GHz status
B: Modem status G: Bonding status
C: Battery status H: Fault/Error
D: Power switch I: WAN status
E: 5 GHz status
Teradek regularly releases new firmware versions to improve performance, add new features, or to fix vulnerabilities.
Visit https://www.teradek.com to update your device with the latest firmware.
O
L
P
M
Q
N
J: LAN status N: LAN port
K: Power status O: USB port
L: Reset button P: Power input
M: WAN port Q: Node inputs
ASSEMBLY AND POWER
Attach the Wi-Fi antennas.
1
If using Link Pro with a cable/DSL modem, connect an Ethernet cable between the modem
2
and Link Pro's WAN port .
Power the router using AC power, or install a battery if Link Pro is equipped with a battery plate.
3
CONNECT
CONNECT VIA Wi-Fi
Connect to one of Link Pro's Wi-Fi networks: Link
1
XXXXX or Link-Pro-XXXXX 5G (XXXXX is the last five
digits of the device's serial number).
Open a web browser and navigate to https://172.16.2.1.
2
CONNECT VIA ETHERNET
Connect the Ethernet cable between your computer or a network switch and Link Pro's LAN port
1
Note: If connecting Link Pro to a network with an existing DHCP server, you must disable Link Pro's
built-in DHCP server.
Open a web browser and navigate to Link Pro's IP address.
2
Log in to Link Pro's configuration interface using the default
3
credentials shown to the right
CONNECT NODES TO LINK PRO
You can use up to four Teradek Nodes to
increase your bandwidth and establish
an Internet connection when another
connection is unavailable.
Connect Node(s) to Link Pro using the
1
included 18" 4-pin to 4-pin cables.
Node's power LED should illuminate
2
immediately. The network LED will also
illuminate once an Internet connection
is established.
NEED MORE HELP?
Support: http://support.teradek.com → Contains tips, information and all the latest firmware & software updates.
TERADEK SUPPORT STAFF: support@teradek.com or call 888−941−2111 ext2 (Mon−Fri 6am to 6pm PST)
Wi-Fi DEFAULTS
Pro
- -
SSID (2.4GHz) Link-Pro-XXXXX
SSID (5GHz) Link-Pro-XXXXX 5G
Password link051XXXXX
LAN IP Address 172.16.2.1
LOG IN DEFAULTS
Web UI username admin
Web UI password admin
.
