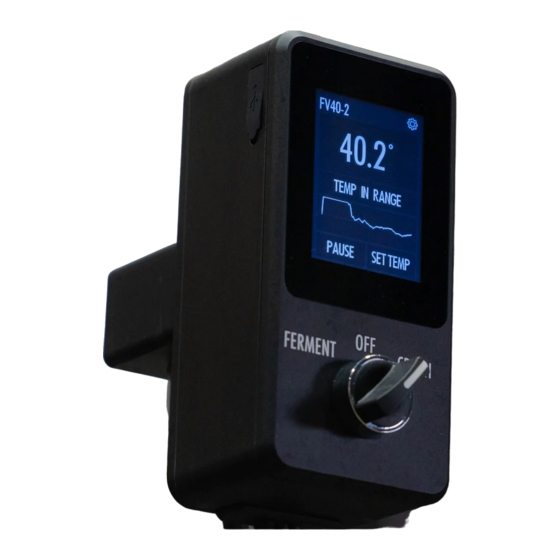

- Page 1 ENGINEERING BETTER BEER FTSs Pro Touch│Product Guide Page 1...
- Page 2 FTSs Pro Touch Power Supply | 10 A (24VDC with M12)* *One FTSs Pro Touch Power Supply | 10 A 10A power supply can power up to three FTSs Pro Touch setups with the use of the included M12 Power Splitters and the 2-pole M12 Extension Cable 25ft (sold separately.)
-
Page 3: System Overview
Install on 1” Pipe with 1.0” Clamp Insert 3. Connect the PT100 Temp Probe to 10ft Temperature Probe Wire (see SENSOR INSTALLATION section). 4. Run the wire from the FTSs Pro Touch to the installed solenoid valve set up. Connect via M12 connectors. Page 3... -
Page 4: Sensor Installation
6. Wrap Hook and Loop Straps around wiring to keep cables neat. SENSOR INSTALLATION The FTSs Pro Touch temperature controller comes with a 10ft cable with no connector on the end. The wire in this cable will connect to your 3 wire PT100 temperature sensor. - Page 5 When first turning your unit on, you will see a first-time vessel naming screen that will let you choose type of vessel, size, and a number for the vessel the FTSs Pro Touch is operating on. This vessel name will be used as the file name for the temperature data CSV file that can be exported (see Page 7 for details).
- Page 6 INSTRUCTIONS OPERATING INSTRUCTIONS (CONTINUED) DEFINING USER TEMPERATURE PRESETS While setting the temperature (on both the FERMENT TEMP and CRASH TEMP modes) there are 3 programmable temperature presets for your convenience. 1. To program a preset, adjust the temperature up or down as desired. 2.
- Page 7 1. Ensure you have a USB drive fully inserted in the USB port on the side of the FTSs Pro Touch. 2. If the USB is installed and nothing happened, ensure the USB has the correct FAT 32 formatting.
- Page 8 INSTRUCTIONS SETTINGS SWITCH BETWEEN FAHRENHEIT AND CELSIUS SCALE MODES ⚙ 1. Select Settings Cog “ ” on the Start Up Screen or the main Temp Control Screen. 2. Select F° (for Fahrenheit reading) or C° (for Celsius reading) on the Settings Screen.
- Page 9 INSTRUCTIONS SETTINGS (CONTINUED) Factory Reset ⚙ 1. Select Settings Cog “ ” on the Start-Up Screen or on the main Temp Control Screen. 2. Select and hold “RESET GRAPH” for 5 seconds. Your screen will blink and factory reset your controller. This will bring you to the initial setup process including Vessel Name Screen and the First Time Setup Screen.
- Page 10 SsBrewtech.com REV 10072022...
