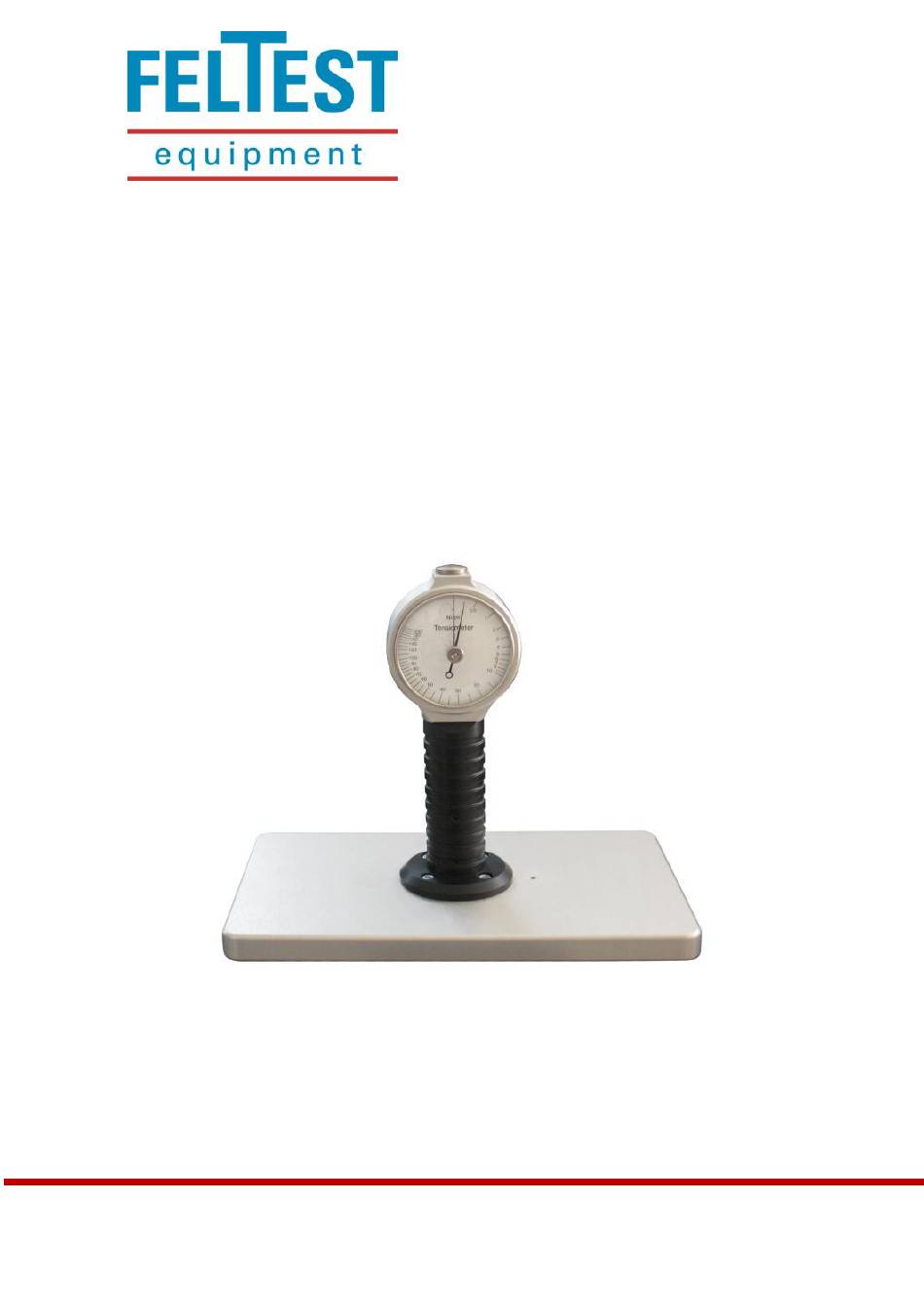

- Page 1 Feltest TensioMaster Instruction manual...
- Page 2 Further, the unique ‘picture frame’ bearing surface eliminates the effect of stress in adjacent areas of the web. The Feltest TensioMaster can be used on webs running in any angular attitude, and it can be applied on either side of a web.
- Page 3 The magnitude of readings is also independent of speed or moisture content of the web. The instrument can be used safely in wet surroundings since the internal mechanisms are protected by seals and rubber bellows. The range of tension measurable with the instrument is 0.5 to 20 N/mm with an accuracy of ±...
- Page 4 3. With the longer side of the frame oriented in the machine running direction, press the instrument slowly against the web until the pointer of the indicator stops. 4. Remove the instrument and read the dial. 5. Reset the pointer of the dial to the zero position and perform the measurement at least once more to check repeatability.
- Page 5 Recommendations To ensure your own safety and to prevent machine damage, do not apply the instrument near an ingoing nip. Where lapped seams are present, avoid seam impact on the instrument by timing the measurement to correspond with web cycles. When measuring slack spans, avoid wrinkling the web by measuring close to a support roll.
- Page 6 Apply the Tensiomaster gently Do not use the Tensiomaster on top of a roll Safety Please consult site safety systems before using the Feltest TensioMaster. Avoid ingoing nips.
- Page 7 Maintenance No special maintenance procedures are required. However, the Feltest TensioMaster should be externally cleaned and dried after use. If necessary apply a small quantity of silicone grease to the spindle where it enters the rubber bellows seal. This is required to ensure smooth operation.
