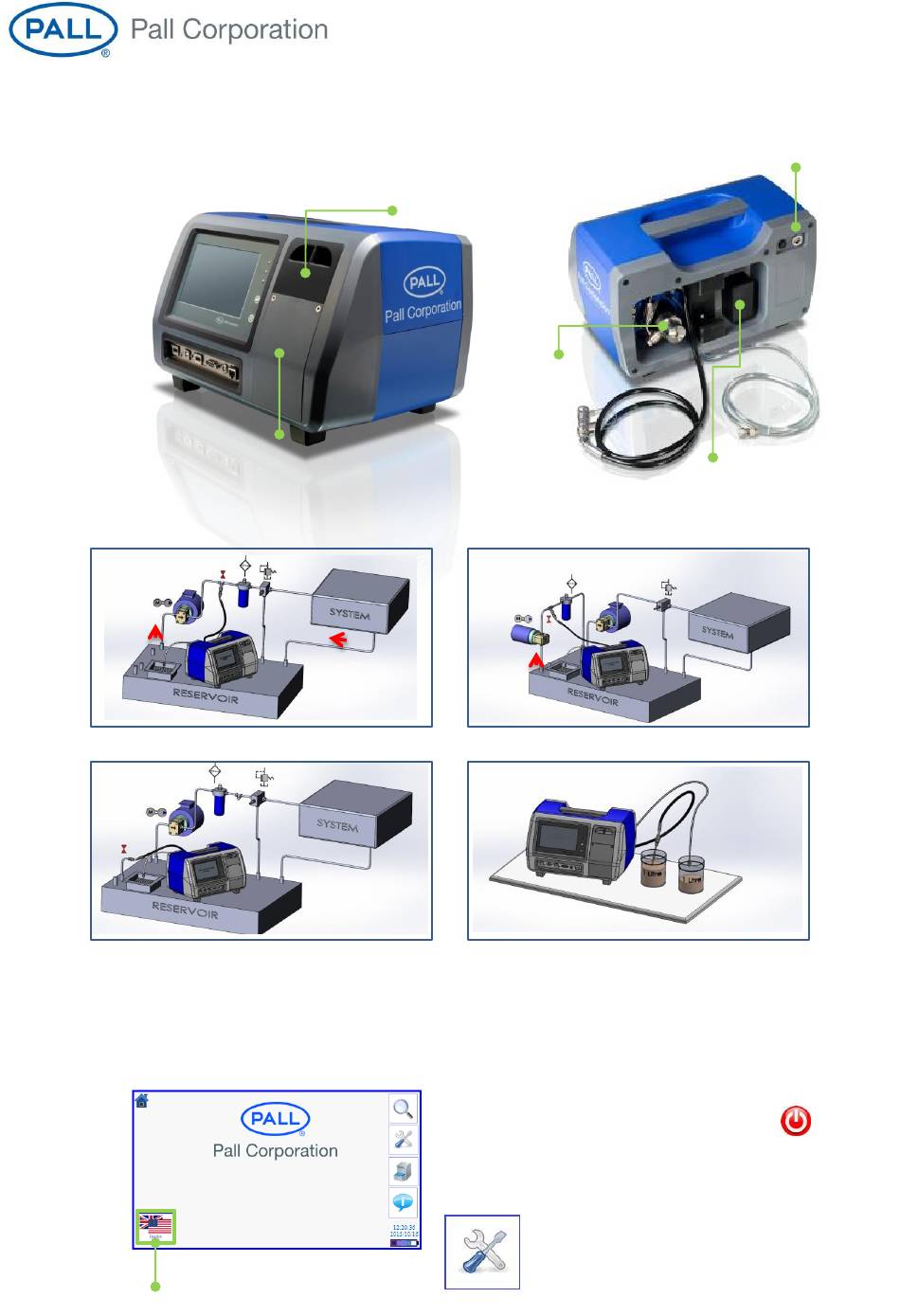

Pall PCM500 Series Quick Manual

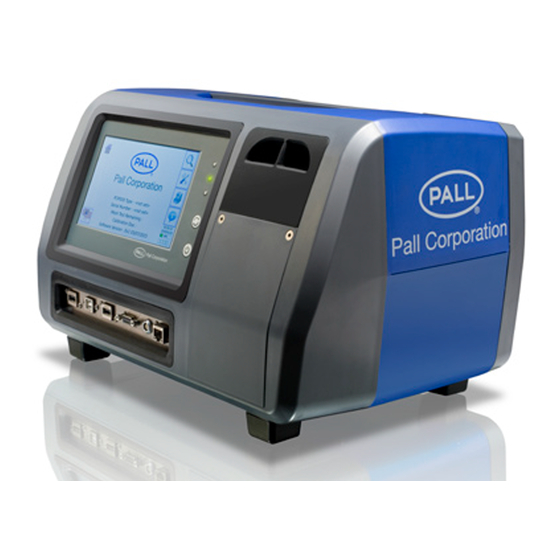

The PCM500 Series
Portable Fluid Cleanliness Monitor
QUICK GUIDE
Colour Touch
Screen Display
Communications
Ports
Integral
12VDC Battery

GETTING STARTED

Connecting the PCM500

High pressure line (0 to 315 bar)
Reservoir Sampling
• Connect PCM inlet to the system on-line pressure connection, or alternatively to the system
reservoir using the high pressure black hose, stored in rear of the unit
• Connect PCM outlet to a suitable container (1 litre per test), or return it to the system
reservoir using the clear hose
• Connect the PCM monitor to the mains power supply issued; 100 - 240 VAC (auto ranging),
47-63 Hz, or use internal battery power
Select to set preferred language. Congratulations. You are now ready to start monitoring!
PCM500W – SERIAL No. 2345
MESH TEST REMAINING: 1234
CALIBRATION DUE: 2016/10/24
CUSTOMER OR UNIT IDENTITY HERE
Figure 1: Main Menu
Printer storage
compartment
Last Chance
Filter Housing
Low pressure line (0 to 1 bar)
Bottle Sampling
All operations are made via the Colour Touchscreen.
Press and release the Power On/Off button
front panel.
• A green LED Light will flash for several seconds
• An introduction screen appears followed by the Main
Menu (Figure 1)
•
Select Tools to set Time, Date, and PCM
Label label
Robust case
with carry handle
Hose Storage
Mesh Screen Block
Power Input
on the
