Step 25
5/32-32x2/5" truss head screws (x2)

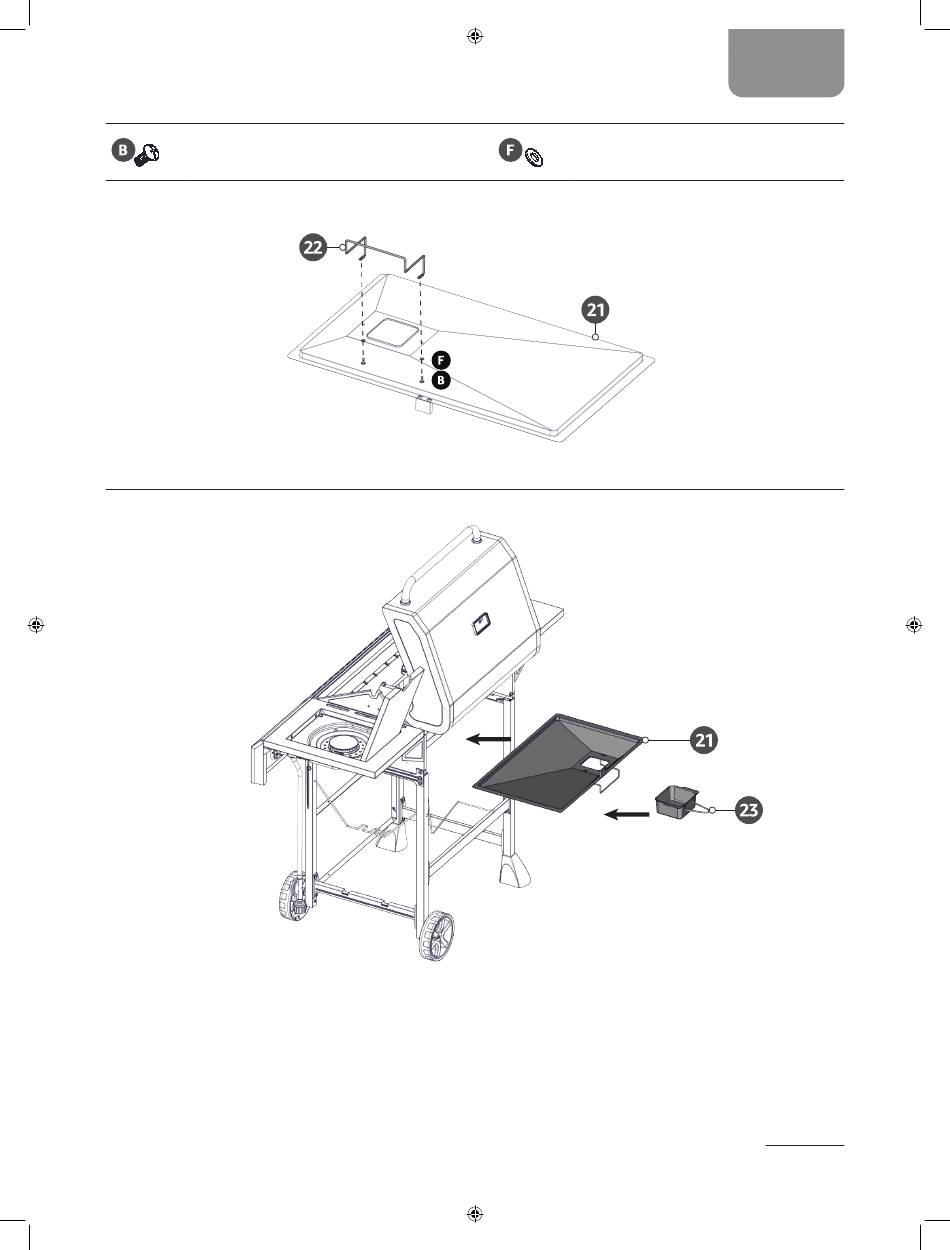

Align the ends of the grease pan holder (22) with the holes in the grease tray (21), then secure with two 5/32" flat washers (F)
and two 5/32-32x2/5" truss head screws (B). Make sure that the grease pan holder faces the direction shown.
Step 26
Slide the grease tray (21) underneath the grill box, then slide the grease pan (23) into the grease pan holder (22).
