EN

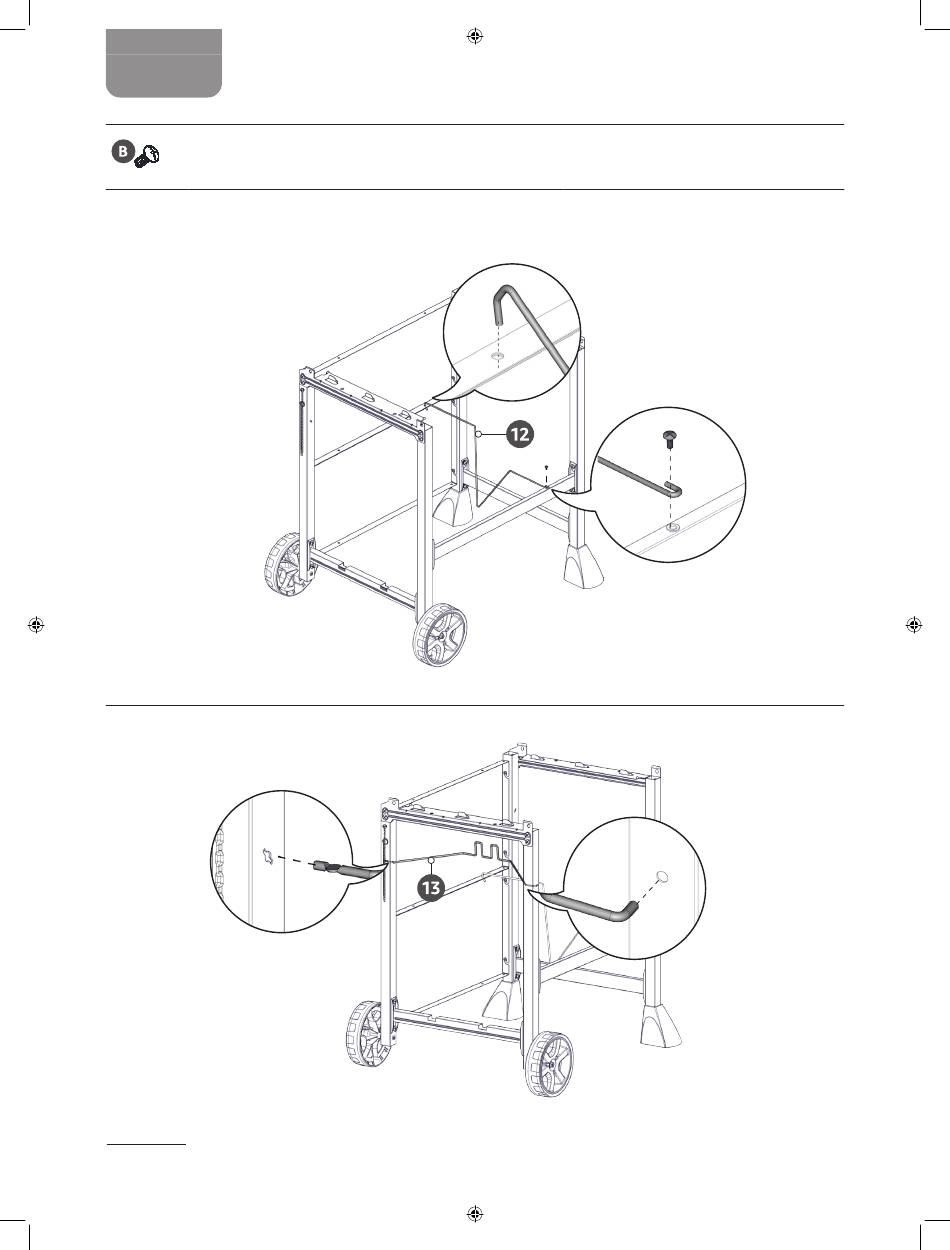

Step 7
5/32-32x2/5" truss head screw (x1)
1. Insert the end of the tank exclusion bar (12) into the hole on the top edge of the front panel.
2. Align the other end of the tank exclusion bar with the hole in the back frame support, then secure with a 5/32-32x2/5"
truss head screw (B).
Step 8
Insert the ends of the tank holder bar (13) into the holes on the inside of the right legs.
12
