Assembling the Grill

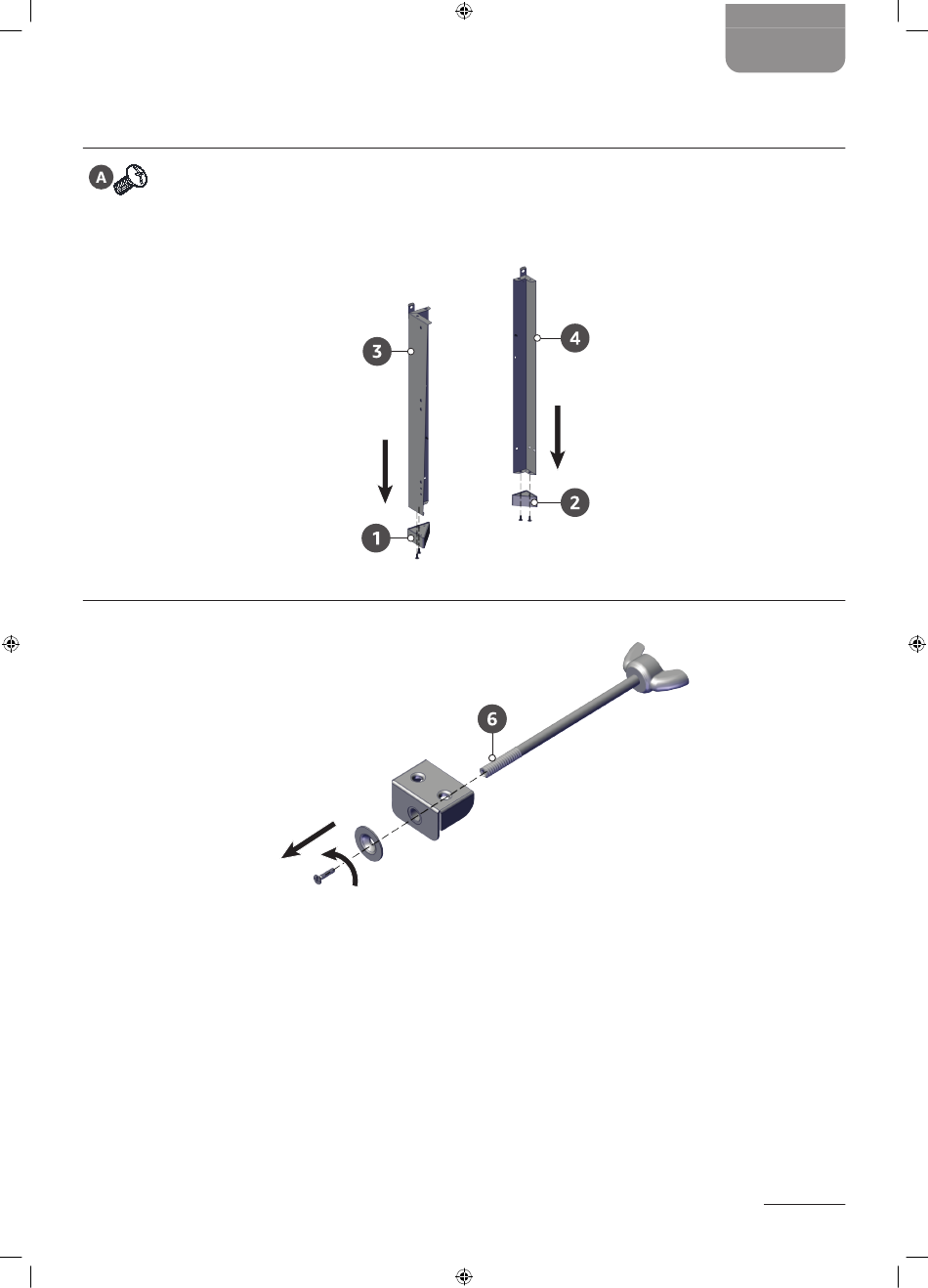

Step 1
1/4-20x1/2" truss head screws (x4)
1. Secure the front foot (1) to the front left support (3) with two 1/4-20x1/2" truss head screws (A).
2. Secure the back foot (2) to the back left support (4) with two 1/4-20x1/2" truss head screws (A).
Step 2
Remove the screw on the tank lock (6) and disassemble into four parts (screw, washer, bracket, and pin).
