Page 1: User Guide

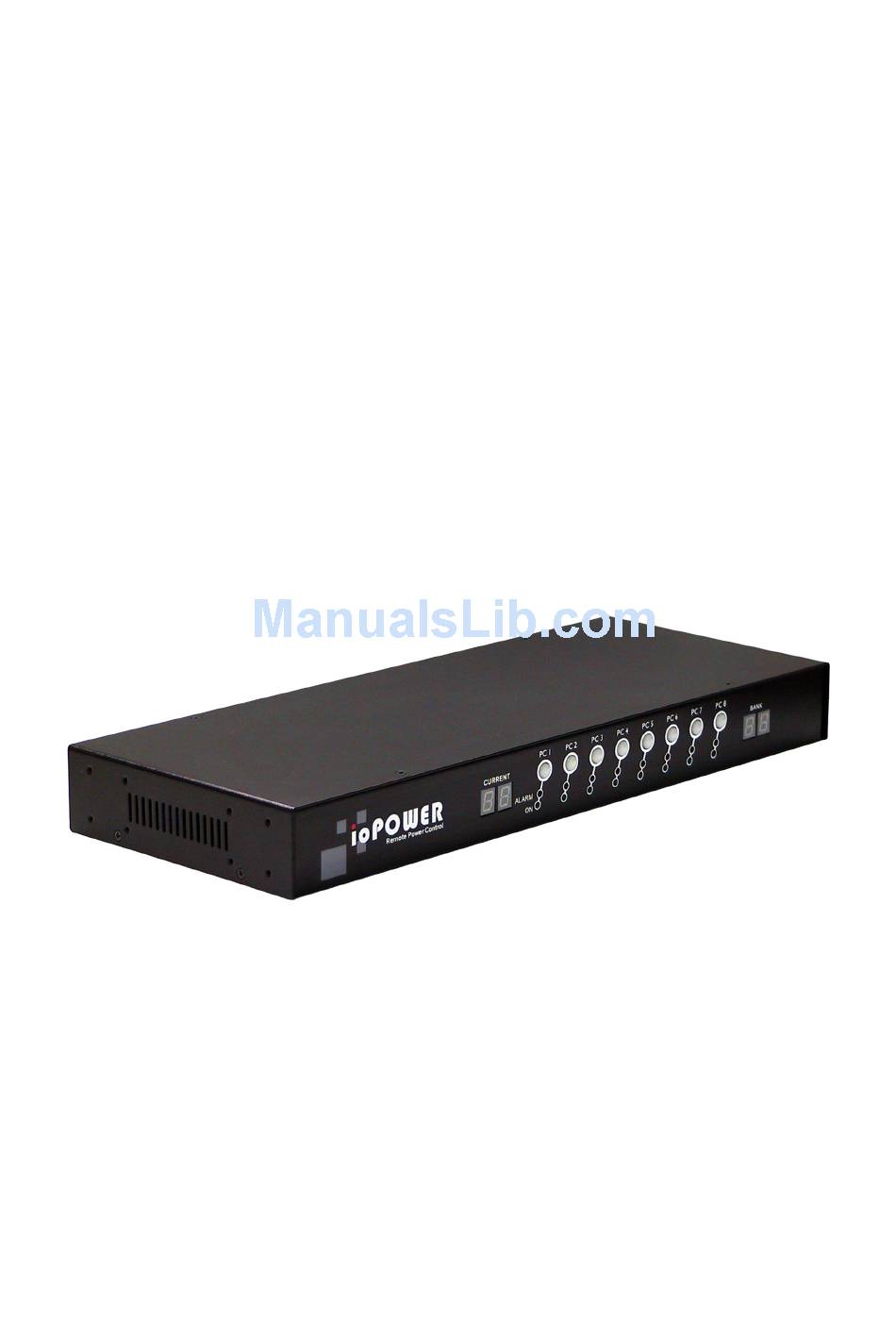

8-port Remote Power Control Unit for any AC-powered Devices / Servers User Guide Rev. 1.41 Feb 2005... -
Page 2: Fcc Warning
FCC Warning This equipment has been tested and found to comply with the regulations for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 3 User Guide Table of Contents Table of Contents Table of Contents...iii Quick Installation ... 1 Flash Upgrade Operation Guide (Using Windows HyperTerminal)... 7 Serial Command Set ... 10...
-
Page 4: Quick Installation
To control your AC-powered devices, you only need to tap them to any of ioPower’s 8 power output outlets and then connect the ioPower to a host PC installed with the Power Management software. To power on/off the connected AC-... - Page 5 User Guide Out-of-the-box Installation Take the ioPower out of the box and begin installation…. Step 1. Connect the ioPower to the power outlet via its power chord. Step 2. Connect a host PC serial port to the serial port on the ioPower backpanel, using a serial (RS-232) cable, then power on the host PC.
- Page 6 User Guide Connect host PC to ioPower Now you can begin connecting your ioPower to the host Step 1. Run the ioPower Management software by double- clicking its desktop icon or access Start /programs /ioPower/ioPower Management. Step 2. Connect the host PC to ioPower by clicking Setting/Connect.
- Page 7 Firmware Upgrade Operation Guide that comes with your firmware upgrade file. Normally, your ioPower unit is loaded with the latest firmware, you should have no need to reload/upgrade your firmware unless (1) there’s a new firmware upgrade ready (2) your firmware is corrupted and need reloading.
- Page 8 (still more than 21 minutes to go for a Power-On on all ports) Note that the timer settings will also be executed nonetheless when (1) the host PC is shut down, or (2) the ioPower Management Software is disconnected to the ioPower. And the ioPower unit will...
-
Page 9: System Requirements
Alarm LED still remains lit persistently. If so, it indicates that this port is malfunctioning for good and need technical service from your local dealer. - Page 10 Flash Upgrade Operation Guide (USING WINDOWS HYPERTERMINAL) Important Note: Beside using Windows HyperTerminal for ioPower flash upgrade, you can also use the Tools/Upgrade option on the ioPower Management Software Menu. Please refer to the Quick Installation section on this User Guide.
- Page 11 User Guide Step 5. Hit Enter key twice to go into command mode ….. If the firmware version is lower than 040421, here you should type in /iopower\ on the command line and Enter then hit to go into command mode.
-
Page 12: Troubleshooting
If that is the case, please power off the ioPower Unit and then power it on restart the whole flash procedure again. You also press any button on front panel about 3 seconds when you power on the ioPower Unit. - Page 13 User guide Before you use the serial command … (1) To use the serial commands for ioPower control, you have to establish a HyperTerminal connection between ioPower and the host PC, using a RS-232 cable for connection. Use the following parameters for HyperTerminal connection:...
- Page 14 User guide ON – Power ON [Description]Power on one/all AC outlet port(s) immediately [Usage] ON [bank_number] [port_number] [Examples] ON 1 4 – Power on port 4 on bank 1 immediately ON 1 0 – Power on all ports on bank 1 immediately ON 0 0 –...
- Page 15 User guide ED – Timer Activate everyday at a specific time point [Description]Set the timer to turn on/off a specific port every day at specific time point [Usage] ED [bank_number] [port_number] [ON | OF] [Time_point] [Examples] ED 1 4 ON 02:12:20 – Set timer to power on port 4 on bank 1 exactly every day at 02:12:20.
- Page 16 UPGRADE – Upgrade Firmware [Description]Upgrade the system firmware [Usage] UPGRADE [Example] UPGRADE Note: Please also refer to ioPower Flash Operation Guide for details. SETTIME – Set Up System Date and Time [Description]Set up the system date and time [Usage] SETTIME [20yy/mm/dd] [hh:mm:ss] [Example] SETTIME 2004/09/27 18:10:00 –...
