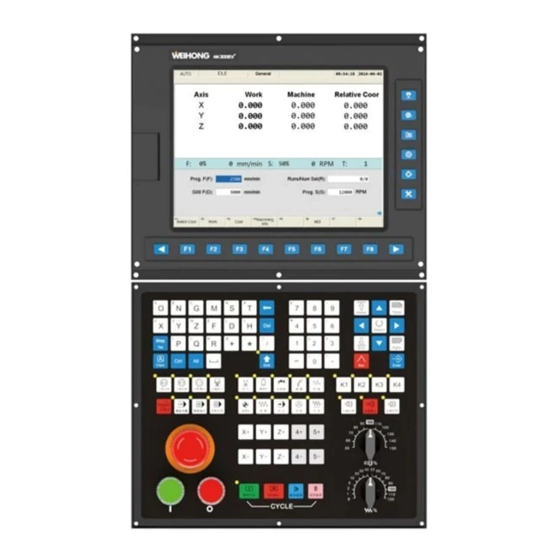

WEIHONG NK300CX Quick Start Manual
  1. Manuals
  2. Brands
  3. WEIHONG Manuals
  4. Industrial Equipment
  5. NK300CX
  6. Quick start manual

WEIHONG NK300CX Quick Start Manual

Integrated cnc system for shoe molding machines
Hide thumbs Also See for NK300CX:
Table of Contents

Advertisement

Quick Links

Download this manual
Quick Start Guide for the Integrated CNC System of Shoe
1
System Overview ............................................................................................................................ 1
1.1
NK300CX Host ..................................................................................................................... 1
1.1.1 Layout ........................................................................................................................ 1
1.1.2 Mounting Dimension (Unit: mm) .................................................................... 4
1.2
WH108C Operation Panel ............................................................................................... 5
1.2.1 Layout ........................................................................................................................ 5
1.2.2 Mounting Dimension (Unit: mm) .................................................................... 8
1.3
Main Software Interface .................................................................................................. 9
2
Quick Start ...................................................................................................................................... 10
2.1
Load a Program File ....................................................................................................... 10
2.1.1 Load a Program File from the Internet ...................................................... 10
2.1.2 Set a Machining Task ......................................................................................... 15
2.2
Select Tools for Machining .......................................................................................... 17
2.3
Execute Selective Machining....................................................................................... 19
2.4
Do the Related Setting for Machining ...................................................................... 20
2.5
Adjust the WCS ................................................................................................................. 24
2.5.1 Select a WCS .......................................................................................................... 25
2.5.2 Set the Offsets ...................................................................................................... 25
2.6
Calibrate after Tool Changed ...................................................................................... 27
3
FAQs .................................................................................................................................................. 27
SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD.
Molding Machines
Author: Product Supporting Department
Weihong Corporation, All Rights Reserved
上海维宏电子科技股份有限公司
Version: 2020.1 1st Version

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NK300CX and is the answer not in the manual?

Questions and answers

Related Manuals for WEIHONG NK300CX

Summary of Contents for WEIHONG NK300CX

  • Page 1: Table Of Contents

    上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. Quick Start Guide for the Integrated CNC System of Shoe Molding Machines Version: 2020.1 1st Version Author: Product Supporting Department Weihong Corporation, All Rights Reserved System Overview ..........................1 NK300CX Host ........................1 1.1.1 Layout ........................
  • Page 2 上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. Failed to Register the System ..................28 The Red Warning Occurs: Air Pressure Alarm, and E-stop bottom is Pressed ............................28 The Yellow Warning Occurs: K1 Key-Fixtures Do not Clamp ......28 Tool Calibration Overtravel Alarm ................28...

  • Page 3: System Overview

    NcStudio JS software for shoe molding machines Main Software Interface for details. 1.1 NK300CX Host This part introduces the layout and mounting dimension of NK300CX host. 1.1.1 Layout It introduces the layout of both front view and rear view. 1 / 29...
  • Page 4 上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. 1.1.1.1 Front View The front view of NK300CX host is as follows: USB interface Used to connect with USB flash disks. And it is protected by a cover. Display area Human-machine interface, or user’s interface. It is user-friendly and easy to use.
  • Page 5 1.1.1.2 Rear View The rear view of NK300CX host is as follows: DB9M/F cable interface – For NK300CX-H, it is used to connect with the keypad panel. – For NK300CX-V, it is used to connect with the operation panel. Terminal board interface Used to connect with Lambda terminal board.

  • Page 6: Mounting Dimension (Unit: Mm)

    上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. Power interface Used to connect with 220V power supply. 1.1.2 Mounting Dimension (Unit: mm) NK300CX Dimension NK300CX Cut-out 4 / 29...

  • Page 7: Wh108C Operation Panel

    上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. 1.2 WH108C Operation Panel This part introduces the layout and mounting dimension of WH108C operation panel used by NK300CX-V. 1.2.1 Layout The front view of the operation panel is as follows: Alpha-numeric keys Used to input characters and numbers.
  • Page 8 上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. Including ATC CW, ATC CCW, ATC OUT, Unclamp, Reset, Simulate, Single Block and HW Guide keys. Keys for common ports Used to turn on / off frequently used ports. Including Air, Light, Coolant, Oil keys, and control rapid movement, including Rapid key.
  • Page 9 上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. Power Switch Used to control power on or off. 10. Keys for movement control Used to control the movement of the machine tool. Including START, STOP, Pause, and Resume keys. 11. Spindle override knob Used to adjust spindle override from 50% to 150%.

  • Page 10: Mounting Dimension (Unit: Mm)

    上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. 1.2.2 Mounting Dimension (Unit: mm) WH108C Dimension WH108C Cut-out 8 / 29...

  • Page 11: Main Software Interface

    上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. 1.3 Main Software Interface The interactive user interface for NcStudio Software for Shoe Molding Machines in Auto mode is as follows: Status bar It shows the following information: – Current mode, such as Auto, JOG, etc.

  • Page 12: Quick Start

    上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. 2 Quick Start Through this section, you can quickly know the following machining processes for Integrated CNC System for Shoe Molding Machines: Load a program file. Select tools for machining. Execute selective machining.
  • Page 13 上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. 2.1.1.1 Set the IP Address This operation is used to establish the network connection channel between the integrated CNC system and the PC by automatically obtaining or manually setting the IP address. It is default to automatically obtain the IP address. And this operation takes manually setting the IP address as an example.
  • Page 14 上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. To close Network Setting dialog box and save the settings, press F7. The new networking information shows in Network Connection Status area in Computer interface. 2.1.1.2 Verify the Connection This operation is used to verify whether the IP addresses are set successfully by ping command after the IP addresses of the integrated CNC system and PC are set well.
  • Page 15 上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. If the connection fails, troubleshoot the following: Check the corresponding cable interface of the router. Check the physical connection and IP setting. Set the IP Address for details. 2.1.1.3 Access a Shared Program File This operation is used to access a shared program file from PC or other integrated CNC systems after network connection is established correctly.
  • Page 16 上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. Press H. Browse for Folder dialog box pops up: Select Network → the target PC, find the desired shared folder, and click OK. File list in the shared folder shows in Network interface.

  • Page 17: Set A Machining Task

    上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. 2.1.2 Set a Machining Task The system can automatically match the program files with technics and load all matched program files at a time to improve efficiency. To machine several faces of the shoe mold with one tool at a time, set the machining...
  • Page 18 上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. According to the actual situation, modify names of program files in the target folder: – If it is your first time to match the program files with technics, modify the names according to the default matching principle.

  • Page 19: Select Tools For Machining

    上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. • To modify the workpiece coordinate system, press F3. The supported workpiece coordinate system includes coordinate systems G54 ~ G59 and extended coordinate systems G54P0 ~ G54P119. Before using extended coordinate systems, ensure parameter N80010 Support Extended Part Offsets is set to Yes.
  • Page 20 上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. To load a G code or an ENG program file, press and select paths of program files in Prog interface. Select Tool for ENG/G File dialog box and Coor interface show: Load a Program File for how to load a program file.

  • Page 21: Execute Selective Machining

    上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. 2.3 Execute Selective Machining This operation is used for an optional skip of the program file, by customizing the start line and end line line of the program block, so that you can freely select the machining range.

  • Page 22: Do The Related Setting For Machining

    上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. To specify the end line for machining, input a line number in the End Line input box. Valid range: [Start line, Total line] After setting, you can check the start line and end line of the loaded program file at the top of each interface and more information in Machining interface under functional area.
  • Page 23 上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. To do the related setting for machining, do the following: In Auto mode, to enter Coor interface, press → 1: To do machining setting, press M or click Mechanism input box and select one of the following: –...
  • Page 24 上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. Optional: If you select the single-axis mode, to do related setting about rotating, do the following: Press Y or click Rotate input box and select the rotating mode: To select the rotating angle, press •...
  • Page 25 上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. • CW 270º Optional: If you select the single-axis mode, to do related setting about mirroring, do the following: Press Q or click Mirror input box: To select the mirroring direction, press ：...

  • Page 26: Adjust The Wcs

    上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. • Y as the mirroring axis ：left-right mirroring Optional: If you need to do related setting about speed, do the following: – To use the set fixed G00 feedrate, press G → O and input the value of G00 speed.

  • Page 27: Select A Wcs

    上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. 2.5.1 Select a WCS For shoe module machines, two workpiece coordinate systems, G54 and G55, are mainly used for machining: • G54 is used to machine the upper and bottom of the shoe mold.
  • Page 28 上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. To set the workpiece offset, do the following: To enable Modify in Part Offset area, press T, and input the manufacturer password. Click the target input box and input the value. To set the public offset, do the following: To enable Modify in Public Offset area, press H, and input the manufacturer password.

  • Page 29: Calibrate After Tool Changed

    上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. 2.6 Calibrate after Tool Changed During machining, after tool change due to tool damage or other causes, you need to calibrate again because tool length and the clamping position change. To calibrate after tool change, do the following:...
  • Page 30 上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. 3.1 Failed to Register the System Cause You exited System interface during registering the system. Solution Press → 1 to enter System interface, take a picture of the interface, send the photo to your manufacturer, and stay at the interface until the end of registration.
  • Page 31 上海维宏电子科技股份有限公司 SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD. Solution Check the wiring, and replace the tool sensor. Check the wiring, and replace the tool sensor. Replace the Lambda terminal board. 3.5 Z-axis Overtravel Protection Cause Too large offset of Z1 / Z2/ Z1Z2 tool length.
  • Page 32 S P E C I A L I Z E D / C O N C E N T R A T E D / F O C U S E D Shanghai Weihong Electronic Technology Co., Ltd. Address: No. 1590, Huhang Rd., Fengxian, Shanghai, China, 201401 Hot-line: 400 882 9188 Website: www.weihong.com.cn/en...
