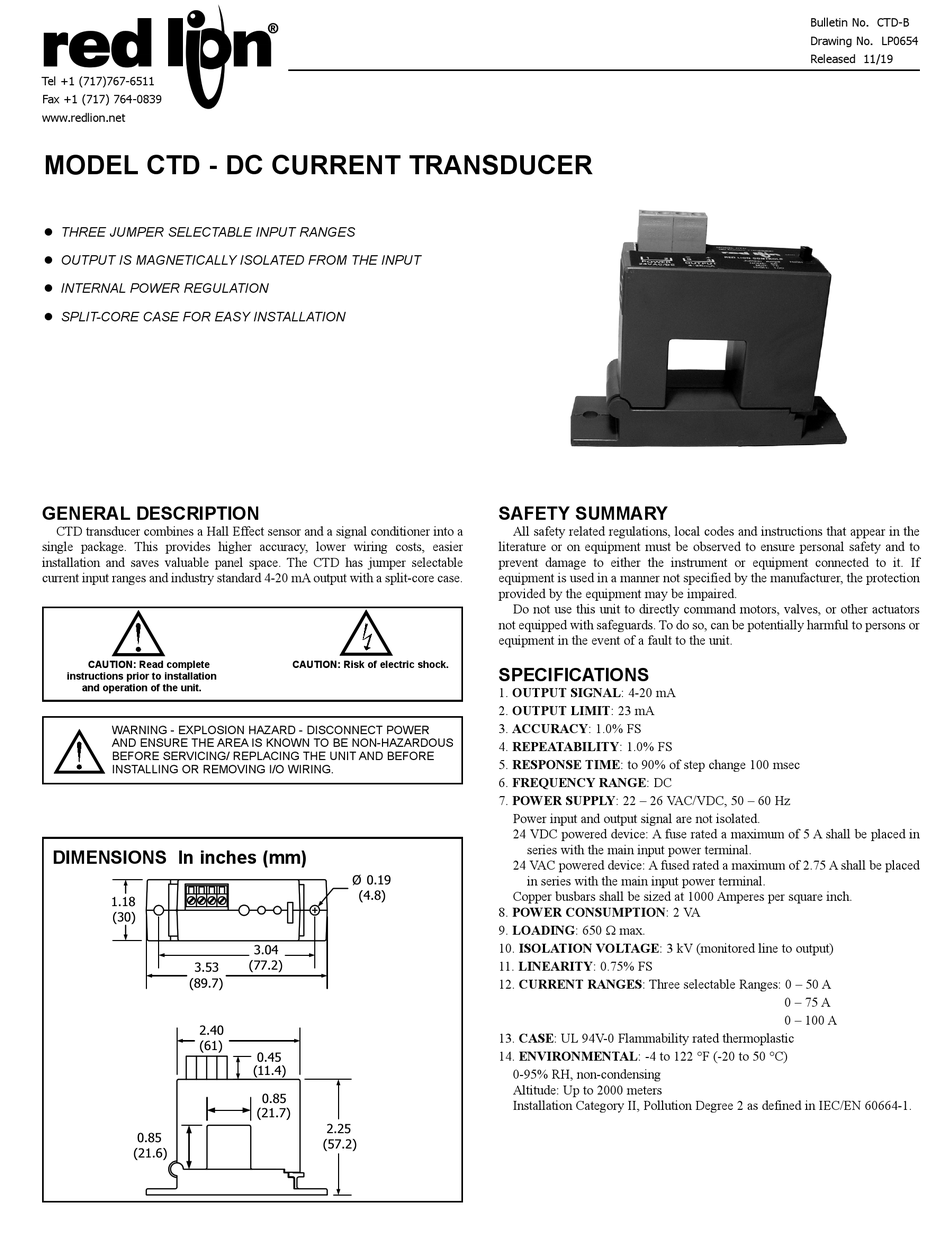

MODEL CTD - DC CURRENT TRANSDUCER
 THREE JUMPER SELECTABLE INPUT RANGES
 OUTPUT IS MAGNETICALLY ISOLATED FROM THE INPUT
 INTERNAL POWER REGULATION
 SPLIT-CORE CASE FOR EASY INSTALLATION

GENERAL DESCRIPTION

CTD transducer combines a Hall Effect sensor and a signal conditioner into a
single package. This provides higher accuracy, lower wiring costs, easier
Installation and saves valuable panel space. The CTD has jumper selectable
current input ranges and industry standard 4-20 mA output with a split-core case.
CAUTION: Read complete
instructions prior to installation
and operation of the unit.
WARNING - EXPLOSION HAZARD - DISCONNECT POWER
AND ENSURE THE AREA IS KNOWN TO BE NON-HAZARDOUS
BEFORE SERVICING/ REPLACING THE UNIT AND BEFORE
INSTALLING OR REMOVING I/O WIRING.
DIMENSIONS In inches (mm)
1.18
(30)
3.53
(89.7)
2.40
(61)
0.85
(21.6)
CAUTION: Risk of electric shock.
Ø 0.19
(4.8)
3.04
(77.2)
0.45
(11.4)
0.85
(21.7)
2.25
(57.2)

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in the
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use this unit to directly command motors, valves, or other actuators
not equipped with safeguards. To do so, can be potentially harmful to persons or
equipment in the event of a fault to the unit.

SPECIFICATIONS

1. OUTPUT SIGNAL: 4-20 mA
2. OUTPUT LIMIT: 23 mA
3. ACCURACY: 1.0% FS
4. REPEATABILITY: 1.0% FS
5. RESPONSE TIME: to 90% of step change 100 msec
6. FREQUENCY RANGE: DC
7. POWER SUPPLY: 22 – 26 VAC/VDC, 50 – 60 Hz
Power input and output signal are not isolated.
24 VDC powered device: A fuse rated a maximum of 5 A shall be placed in
series with the main input power terminal.
24 VAC powered device: A fused rated a maximum of 2.75 A shall be placed
in series with the main input power terminal.
Copper busbars shall be sized at 1000 Amperes per square inch.
8. POWER CONSUMPTION: 2 VA
9. LOADING: 650 Ω max.
10. ISOLATION VOLTAGE: 3 kV (monitored line to output)
11. LINEARITY: 0.75% FS
12. CURRENT RANGES: Three selectable Ranges: 0 – 50 A
13. CASE: UL 94V-0 Flammability rated thermoplastic
14. ENVIRONMENTAL: -4 to 122 °F (-20 to 50 °C)
0-95% RH, non-condensing
Altitude: Up to 2000 meters
Installation Category II, Pollution Degree 2 as defined in IEC/EN 60664-1.
Bulletin No. CTD-B
Drawing No. LP0654
Released 11/19
0 – 75 A
0 – 100 A
