Redlion CTL005 Series Quick Start Manual

Inside US: +1 (877) 432-9908
Outside US: +1 (717) 767-6511
www.redlion.net

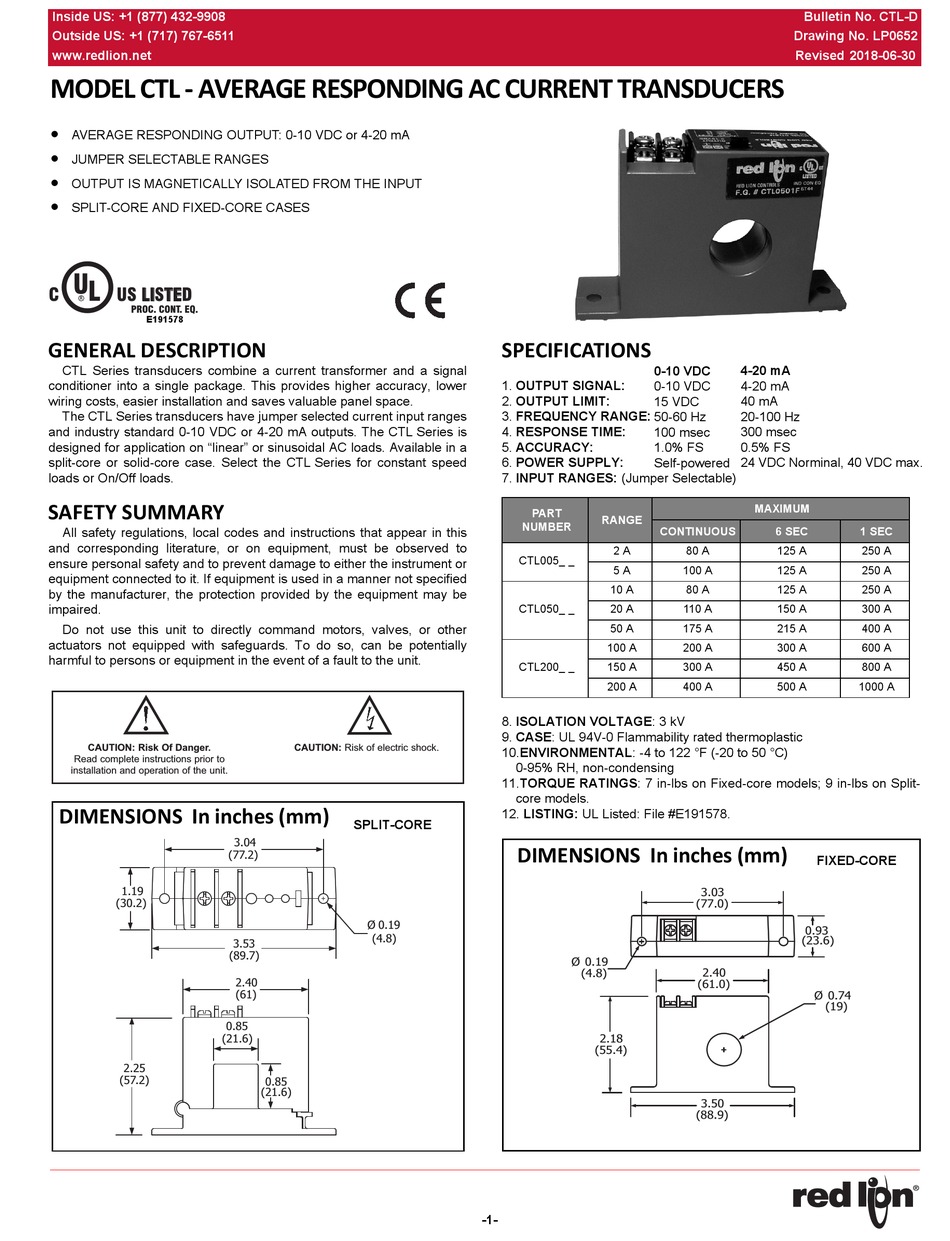

MODEL CTL ‐ AVERAGE RESPONDING AC CURRENT TRANSDUCERS
• AVERAGE RESPONDING OUTPUT: 0-10 VDC or 4-20 mA
JUMPER SELECTABLE RANGES
•
OUTPUT IS MAGNETICALLY ISOLATED FROM THE INPUT
•
• SPLIT-CORE AND FIXED-CORE CASES
U L
C US LISTED
PROC. CONT. EQ.
E191578
GENERAL DESCRIPTION
CTL Series transducers combine a current transformer and a signal
conditioner into a single package. This provides higher accuracy, lower
wiring costs, easier installation and saves valuable panel space.
The CTL Series transducers have jumper selected current input ranges
and industry standard 0-10 VDC or 4-20 mA outputs. The CTL Series is
designed for application on "linear" or sinusoidal AC loads. Available in a
split-core or solid-core case. Select the CTL Series for constant speed
loads or On/Off loads.
SAFETY SUMMARY
All safety regulations, local codes and instructions that appear in this
and corresponding literature, or on equipment, must be observed to
ensure personal safety and to prevent damage to either the instrument or
equipment connected to it. If equipment is used in a manner not specified
by the manufacturer, the protection provided by the equipment may be
impaired.
Do not use this unit to directly command motors, valves, or other
actuators not equipped with safeguards. To do so, can be potentially
harmful to persons or equipment in the event of a fault to the unit.
CAUTION: Risk Of Danger.
Read complete instructions prior to
Installation and operation of the unit.
DIMENSIONS In inches (mm)
1.19
(30.2)
0.85
(21.6)
2.25
(57.2)
CAUTION: Risk of electric shock.
SPLIT-CORE
3.04
(77.2)
Ø 0.19
(4.8)
3.53
(89.7)
2.40
(61)
0.85
(21.6)

SPECIFICATIONS

0-10 VDC
1. OUTPUT SIGNAL: 0-10 VDC
2. OUTPUT LIMIT:
15 VDC
3. FREQUENCY RANGE: 50-60 Hz
4. RESPONSE TIME: 100 msec
5. ACCURACY:
1.0% FS
6. POWER SUPPLY: Self-powered
7. INPUT RANGES: (Jumper Selectable)
PART
RANGE
NUMBER
CONTINUOUS
2 A
CTL005_ _
5 A
10 A
CTL050_ _ 20 A
50 A
100 A
CTL200_ _ 150 A
200 A
8. ISOLATION VOLTAGE: 3 kV
9. CASE: UL 94V-0 Flammability rated thermoplastic
10.ENVIRONMENTAL: -4 to 122 °F (-20 to 50 °C)
0-95% RH, non-condensing
11.TORQUE RATINGS: 7 in-lbs on Fixed-core models; 9 in-lbs on Split-
core models.
12. LISTING: UL Listed: File #E191578.
DIMENSIONS In inches (mm)
Ø 0.19
(4.8)
2.18
(55.4)
-1-
Bulletin No. CTL-D
Drawing No. LP0652
Revised 2018-06-30
4-20 mA
4-20 mA
40 mA
20-100 Hz
300 msec
0.5% FS
24 VDC Norminal, 40 VDC max.
MAXIMUM
6 SEC 1 SEC
80 A 125 A 250 A
100 A 125 A 250 A
80 A 125 A 250 A
110 A 150 A 300 A
175 A 215 A 400 A
200 A 300 A 600 A
300 A 450 A 800 A
400 A 500 A 1000 A
FIXED-CORE
3.03
(77.0)
0.93
(23.6)
2.40
(61.0)
Ø 0.74
(19)
3.50
(88.9)
