General Description
The SLG46140 GreenPAK is a one-time non-volatile memory
(NVM) Programmable Mixed-Signal Matrix designed to
implement a wide variety of mixed-signal functions in a single,
small, low-power device by integrating a number of common
discrete ICs and passive components.
Features
• Logic & Mixed Signal Circuits
• Highly Versatile Macrocells
• 1.8V (±5%) to 5V (±10%) Supply
• Operating Temperature Range: -40°C to 85°C
• RoHS Compliant / Halogen-Free
• Pb-Free: 1.6 x 2.0 x 0.55 mm, 0.4 mm pitch
Applications
The extensive list of integrated components included in the SLG46140 can be used to implement these and many other
functions, often in combination.
•
Ambient Light Detect
•
Battery Charge Control
•
Fan Control
•
Hall Effect Drive
•
LED Control
•
Level Shift
•
One-Shot Detect
•
Optical Encode
•
Over Voltage Protect
Silego Technology, Inc.
000-0046140-111
Programmable Mixed-signal Matrix

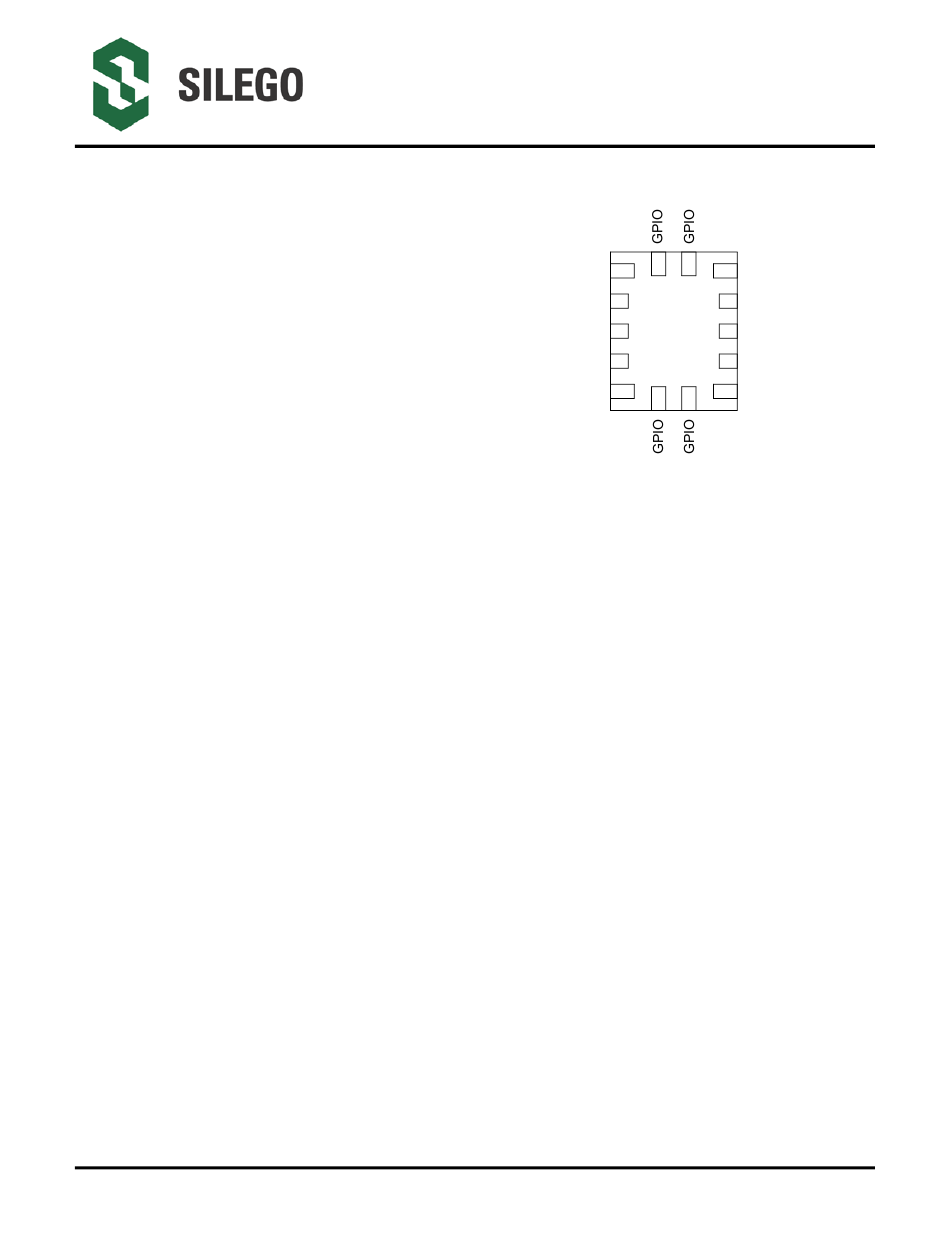

Pin Configuration
VDD
GPI
GPIO
GPIO
GPIO
•
Port Detection
•
Power Sequencing
•
Sensor Interface
•
Signal De-Glitch
•
Signal Delay
•
System Reset
•
Thermal Management
•
Voltage Level Detect
SLG46140
GreenPAK
GPIO
1
12
14
13
GPIO
2
11
GPIO
3
10
GPIO
4
9
6
7
GND
5
8
14-pin STQFN
(Top View)
Rev 1.11
Revised March 16, 2018
