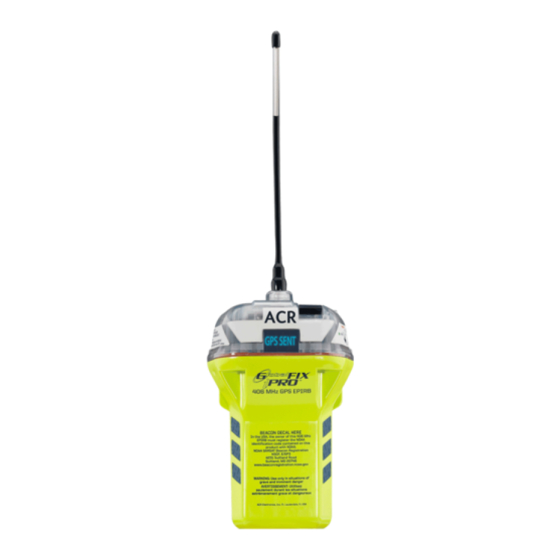

Summary of Contents for ACR Electronics GlobalFix iPRO RL8-36
- Page 1 ACR Electronics, Inc. // 5757 Ravenswood Road // Fort Lauderdale // FL // 33312-6645 Tel: +1 (954) 981-3333 // Fax: +1 (954) 983-5087 // www.acrartex.com...
- Page 2 CAUTION: Before proceeding to install, test or use your new ACR Electronics’ product, please read this Product Support Manual in its entirety. If you have questions regarding the contents of the manual, please contact our Technical Service Department at ACR Electronics, Inc., Telephone +1 (954) 981- 3333.
-
Page 3: Table Of Contents
Table of Contents STEP ONE - REGISTERING YOUR BEACON ___________________________________ 2 STEP TWO - HOW THE BEACON WORKS ____________________________________ 6 STEP THREE - INSTALLING THE BEACON ___________________________________ 16 STEP FOUR - MAINTAINING THE BEACON __________________________________ 21 APPENDIX A - USING AND TESTING THE GPS SYSTEMS ________________________ 27 APPENDIX B - USER INTERFACE: SPECIAL ICONS ______________________________ 29 APPENDIX C - USER INTERFACE: DIGITAL DISPLAY DURING OPERATION ___________ 30 APPENDIX D - USER INTERFACE: DIGITAL DISPLAY DURING SELF-TEST ____________ 33... -
Page 4: Step One - Registering Your Beacon
STEP ONE - REGISTERING YOUR BEACON Why is registration important? As the owner of this 406 MHz beacon, it is mandatory that you register it with the EPIRB national authority of your country: It is the law. Please note that all 406 MHz beacons are required to have their registration updated every two years by the owner. - Page 5 2. Faxing a registration is also acceptable. Fax the registration form to the fax number on the top of the registration form. NOTE: Do not confuse the registration form with the ACR Electronics warranty card. 3. If online or fax registration is not available, mail the registration form with...
- Page 6 Registration outside of the United States In countries other than the United States, 406 MHz beacons are registered with that country’s national authority at the time of purchase. The sales agent should have assisted you in filling out the forms and sending them to the country’s national authority.
-
Page 7: Step Two - How The Beacon Works
STEP TWO - HOW THE BEACON WORKS How your beacon brings help 406 MHz beacons are a type of portable emergency equipment that transmits a distress signal to search and rescue (SAR) organizations. The purpose of these beacons is to aid SAR teams in tracking and locating ships or individuals in jeopardy as rapidly as possible. - Page 8 Anatomy of your beacon NOTE: When unpacking your beacon, it is recommended that you save the original packaging for re-use when shipping the beacon for battery replacement in the future. // Activation switch with Witness Tab The activation switch embodies a special, patented method of activating a beacon.
- Page 9 Strobes Antenna Top View Interface Activation/Test Switch Green Digital Display Internal GPS Screen Receiver Switch Positions TEST Position ON/TRANSMITTING OFF/READY Position Position Y1-03-0233 Rev. L...
- Page 10 Category 1 – SeaShelter™ Bracket HydroFix™ Spring Ejector Release Hydrostatic spring knob Release Unit (HRU) Antenna hook Interface Cable Front cover hook (detent) Category 2 – LowPro™ Bracket Water Sensor Deactivation Magnet Antenna hook Interface Stowage Port Front Cover Release Tabs Release Latch Y1-03-0233 Rev.
- Page 11 Digital Display The digital display in the beacon is used as a secondary visual aid, supporting the green/red LED and the audio tone, which indicate the status of the beacon during testing and during emergency operation. The messages on the digital display typically appear as one or two words at a time, until the entire message has been displayed.
- Page 12 Activating your beacon WARNING: This transmitter is authorized for use only during situations of grave and imminent danger. Deliberate misuse may incur a severe penalty. Overview Category I beacons are designed to be automatically deployed and activated in the event of a sinking vessel. The beacon may also be hand held on the deck of vessels, or floated in water and attached to a raft or life vest with the lanyard provided.
- Page 13 Category I beacons-Automatic deployment and activation If the vessel sinks, the HydroFix™ HRU frees the beacon from the bracket, allowing it to float to the surface. Built-in sensors detect that the beacon is no longer in its bracket and when continuity is created by water between two of the top cap screws, an activation circuit is completed.
- Page 14 Category I and II Beacons-Manual deployment and activation Both Category I and II beacons can be manually deployed by removing the beacon from the bracket. Once removed, the beacon can be activated by placing it in water OR by lifting the Activation Switch to a vertical position, sliding it toward the antenna and pushing down to the opposite side of the beacon.
- Page 15 If deactivation should fail, remove the four screws holding the unit together and unplug the battery to disable the unit. Return the beacon to ACR Electronics for service. False alarms To prevent false alarms, it is important to be aware of how your beacon can be activated.
- Page 16 Precautions to prevent false alarms Do not mount or transport the beacon within 4.6ft/1.4m of a magnetic source. Do not store the beacon outside of its bracket if it can get wet. Do not mount the EPIRB backwards in its bracket (lanyard roll must face in).
-
Page 17: Step Three - Installing The Beacon
STEP THREE - INSTALLING THE BEACON Marking battery and Hydrostatic Release Unit expiration dates NOTE: It is the beacon owner’s responsibility to record the expiration dates for both the beacon battery and the HydroFix™ hydrostatic release unit. This information must appear on the product itself. The left side of the battery housing indicates the battery expiry date. - Page 18 CAUTION: Category I brackets must be mounted free from obstruction to allow the beacon to automatically float free from the ™ can be mounted on a vessel in case of sinking. The SeaShelter vertical surface with the beacon antenna pointing skyward or a horizontal surface with the beacon face up.
- Page 19 CAUTION: Keep this beacon a safe distance away from all magnetic sources. Magnet safe distance is 4.6ft. or 1.4m, including the distance from stereo speakers. Category I bracket ™ Category I bracket has five pre-drilled screw holes to The SeaShelter ™...
- Page 20 Category II bracket Category II brackets are designed to hold the beacon securely in place. The beacon must be manually deployed. The bracket can be mounted on a vertical flat surface with beacon antenna up or on a horizontal flat surface facing skyward.
- Page 21 Installing the optical interface to an external GPS receiver The beacon is fitted with an optical interface to connect with an external Global Positioning System (GPS) receiver that will determine latitude longitude of its position. The black lead wire with white stripes should be connected to the output of the external GPS receiver positive transmitter pin.
-
Page 22: Step Four - Maintaining The Beacon
Carefully inspect the beacon case for any visible cracks. Cracks may admit moisture, which could falsely activate the beacon or otherwise cause a malfunction. Any cracks observed should immediately be referred to ACR Service for evaluation. Call ACR Electronics Technical Service +1 (954) 981-3333. Battery replacement Battery replacement is due 5 years from date after the beacon placed into service, or by expiry date on the beacon whichever is first. - Page 23 Always refer battery replacement and any other beacon service to a factory authorized Service Center. Find a Center near you at http://www.acrartex.com. Battery replacement includes servicing the beacon by replacing all o-rings, testing the water seal and the electrical properties and doing a full functional test on the unit. NOTE: There are no user serviceable items inside the beacon.
- Page 24 Changing ownership or contact information As the owner of the beacon, it is your responsibility to advise the national authority of any change in the information on the registration form. If you are transferring the beacon to a new owner, you are required to inform the national authority.
- Page 25 To remove the expired HRU ™ lid, note that the beacon is installed When opening the SeaShelter with the lanyard face in. Pull the beacon with steady pressure from the bracket. Do not get beacon wet while out of bracket. The HRU has a keying feature that locks it to the bracket.
- Page 26 ™ Servicing the LowPro To remove a beacon from the Category II bracket, lift the latch and release the pressure from the beacon. The beacon will now be able to slide upwards out of the bracket. ™ It is not anticipated that the LowPro will require servicing other than cleaning or, rarely, replacement.
- Page 27 Extended GPS test The beacon may be tested for GPS functionality, however, this may only be done once in the five-year lifetime of the battery due to the significant drain on the battery. This test is not necessary at any time in the life of the beacon, but is made available in the event that the beacon owner wishes to verify internal GPS engine viability.
-
Page 28: Appendix A - Using And Testing The Gps Systems
APPENDIX A - USING AND TESTING THE GPS SYSTEMS How the external GPS interface works The beacon is fitted with an optical interface to connect with an external Global Positioning System (GPS) receiver that will determine the latitude and longitude of its position. This data is transmitted to the emergency system. - Page 29 This bypasses the normal, programmed, waiting time of 20 minutes for the automatic update of GPS position data. If the new GPS position is acquired, the coordinates will be displayed after the beacon has completed the Self-Test. If no valid GPS position data is available, the beacon will keep the previously stored GPS position data for up to 4 hours.
-
Page 30: Appendix B - User Interface: Special Icons
Compatible GPS receivers External GPS interface requirements: In order to be compatible with the GlobalFix™ iPRO, an external GPS receiver must provide location information according to the following requirements: // NMEA 0183, Version 1.5 or higher // Baud rate: 4800 // Talker device identifier: GP (GPS Receiver) // Sentence format: GGA (GPS Fix Data) For more information regarding external GPS device compatibility, please... -
Page 31: Appendix C - User Interface: Digital Display During Operation
GlobalFix™ iPRO Display, LED/ Audio Signaling and Description of Operation long beep The beacon has been activated and the ACR Electronics Welcome Page appears Next, the product name appears EPIRB The system reports that the beacon is on and in activation mode... - Page 32 121.5 The system reports that the 121.5 MHz homing signal is on. Search and Rescue (SAR) personnel use this frequency when arriving close to the scene. If this message is accompanied by a green LED flash, the GPS coordinates have been sent.
- Page 33 EPIRB UNTIL RES Q LEAVE The system reminds you that leaving the beacon on continuously gives the best assurance of being rescued. SAR groups need the ongoing transmissions from the beacon to most effectively find you. If this message is accompanied by a green LED flash, the GPS coordinates have been sent.
-
Page 34: Appendix D - User Interface: Digital Display During Self-Test
GlobalFix™ iPRO Display, LED/ Audio Signaling and Description of Operation Beacon Self-Test has been initiated, and the ACR Electronics’ Welcome Page appears. Next, the product name page appears. BATT >... - Page 35 TEST √ 406 RF beep The fourth test checks for 406 MHz signal strength/RF power. If power is adequate the system passes. TEST 406 RF beep beep The fourth test checks for 406 MHz signal strength/RF power. If power is not adequate the system fails. beep TEST √...
- Page 36 NMEA DATA This message appears if Self-Test has passed. The display indicates that the external GPS did not update its coordinates during Self-Test. NOTE: If external GPS data cannot be acquired, typically due to the external GPS not having achieved a good fix, it does not affect the pass status of Self-Test. Self-Test requires GPS engine readiness but does not require that the GPS obtain coordinates.
-
Page 37: Appendix E - User Interface: Digital Display During Extended Gps Test
APPENDIX E - USER INTERFACE: DIGITAL DISPLAY DURING EXTENDED GPS TEST The following chart describes the display and audio-visual feedback the beacon provides during extended GPS Test. The messages on the digital display typically appear as one or two words at a time, until the entire message has been displayed. -
Page 38: Appendix F- User Interface: Language Translations
APPENDIX F- USER INTERFACE: LANGUAGE TRANSLATIONS The RLB-36 user interface is available in five languages: English, French, Italian, Spanish and German. The following table provides the digital display phrases that appear on the screen. Please note that all language translations utilize simple terms and abbreviations for the purpose of speed and readability of messages. -
Page 39: Appendix G - The Cospas-Sarsat System
APPENDIX G - THE COSPAS-SARSAT SYSTEM General overview EPIRBs transmit to the satellite portion of the Cospas-Sarsat system. Cospas-Sarast satellites are an international system that utilizes Russian Federation and United States’ low altitude, near-polar orbiting satellites (LEOSAR). These satellites assist in detecting and locating activated 406 MHz satellite beacons. -
Page 40: Appendix H - Technical Specifications
APPENDIX H - TECHNICAL SPECIFICATIONS GENERAL/ ENVIRONMENTAL Beacon size (without 17.7 H X 10.67 W X 9.09 D cm (6.97 X 4.2 X 3.58 in) antenna) Display size 2.54 cm (1.0 in) diagonal Beacon weight 581 g (20.49 oz) Beacon material High impact UV resistant polymer ACR-Treuse™... -
Page 41: Appendix I - Warranty, Notices
1 (one) year* from date of purchase or receipt as a gift. During the warranty period ACR Electronics, Inc. will repair or, at its option, replace the unit at no cost to you for labor, materials and return transportation from ACR. For further assistance, please contact our Technical Service Department at ACR Electronics, Inc., 5757 Ravenswood Road, Fort Lauderdale, FL 33312-6645. - Page 42 THIS PAGE INTENTIONALLY LEFT BLANK Y1-03-0233 Rev. L...
- Page 43 THIS PAGE INTENTIONALLY LEFT BLANK Y1-03-0233 Rev. L...
- Page 44 IMO SHORE BASED MAINTENANCE STATEMENT IMO Guidelines on Shore-Based Maintenance (SBM) of EPIRBs. All new EPIRBs manufactured by ACR Electronics, Inc. shall be tested and approved as required by SOLAS reg.IV/15.9.2 as amended, in accordance with MSC/Circ.1039 “Guidelines for Shore-based maintenance (SBM) of satellite EPIRBs” within 5 years depending on ;...
