Guideline
MOBOTIX Thermal-Heat-Detection App
© 2022 MOBOTIX AG
V1.04_11/18/2022, Order Code: Mx-APP-MX-THD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M73 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mobotix M73

Summary of Contents for Mobotix M73

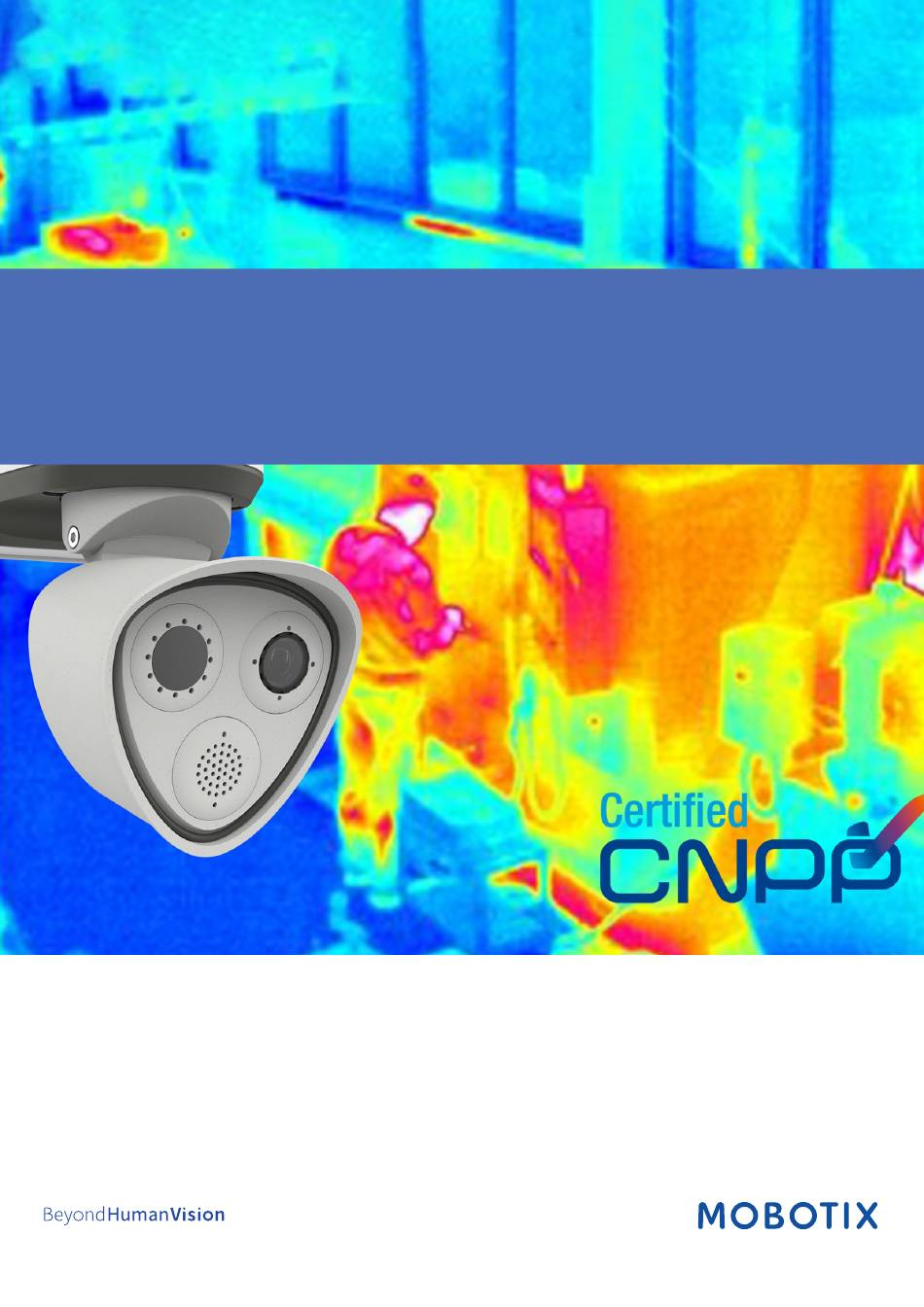

  • Page 1 Guideline MOBOTIX Thermal-Heat-Detection App © 2022 MOBOTIX AG V1.04_11/18/2022, Order Code: Mx-APP-MX-THD...

  • Page 2: Table Of Contents

    Legal Notes About MOBOTIX Thermal-Heat-Detection App Smart Data Interface to MxManagementCenter Technical Specifications Hardware Requirements MOBOTIX M73 MOBOTIX M73 Sensors and Accessories MOBOTIX S74 MOBOTIX S74 Sensors and Accessories Connecting the Camera S74 - Connection Scheme Connecting the Outputs M73 - Connection Scheme...
  • Page 3 Action settings - Configuration of the camera recordings Advanced Configuration: Processing the meta data transmitted by apps Meta data transferred within the MxMessageSystem Creating a Custom Message Event Examples for message names and filter values of the MOBOTIX Thermal-Heat-Detection App 3 / 42...

  • Page 5: Before You Start

    Before You Start Support Safety Notes Legal Notes 5 / 42...

  • Page 6: Support

    Support Support If you need technical support, please contact your MOBOTIX dealer. If your dealer cannot help you, he will contact the support channel to get an answer for you as quickly as possible. If you have internet access, you can open the MOBOTIX help desk to find additional information and software updates.

  • Page 7: Legal Notes

    Electrical and electronic products contain many valuable materials. For this reason, we recommend that you dispose of MOBOTIX products at the end of their service life in accordance with all legal requirements and reg- ulations (or deposit these products at a municipal collection center). MOBOTIX products must not be dis- posed of in household waste! If the product contains a battery, please dispose of the battery separately (the corresponding product manuals contain specific directions if the product contains a battery).

  • Page 8: About Mobotix Thermal-Heat-Detection App

    This app has a Smart Data interface to MxManagementCenter. With the MOBOTIX Smart Data System, transaction data can be linked to the video recordings made at the time of the transactions. Smart Data source can be e.g. MOBOTIX Certified Apps (no license required) or gen- eral Smart Data sources (license required) like POS systems or license plate recognition systems.
  • Page 9 About MOBOTIX Thermal-Heat-Detection App Smart Data Interface to MxManagementCenter The Smart Data System in MxManagementCenter enables you to quickly find and review any suspicious activ- ities. The Smart Data Bar and the Smart Data View are available for searching and analyzing transactions. The Smart Data Bar provides a direct overview of the most recent transactions (from the last 24 hours) and for this reason it is convenient to use it for reviews and searches.

  • Page 10: Technical Specifications

    MOBOTIX HUB version: 2021 R1   patibility min. MOBOTIX HUB license level for Analytics Events: L2   min. MOBOTIX HUB license level for MOBOTIX Event Search Plug-In : L4 Trial license 30-day trial license pre-installed Product Features   App Features...
  • Page 11   Integration Interfaces Milestone X-Protect (via XML)   Generic 3rd party integration through XML, JSON and MODBUS/TCP MOBOTIX events ONVIF Events Yes (Generic Message events) Scene Requirements for Object Recognition Recommended camera position no restrictions Technical App Specifications Synchronous /...

  • Page 12: Hardware Requirements

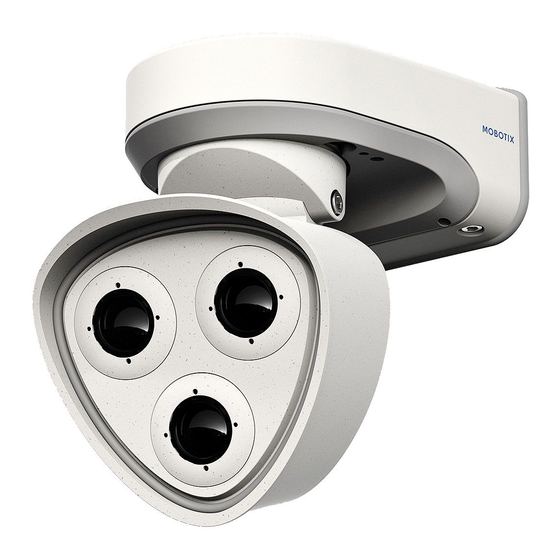

    NOTE! Only Thermal Radiometry sensors can be used for this application MOBOTIX M73 The MOBOTIX M73 camera with TR sensor, the associated app and certified power supply unit is CNPP-certified and can be integrated into a fire alarm system. If you already have an M73 installed, you can simply upgrade the components and install the MOBOTIX Thermal-Heat-...

  • Page 13: Mobotix S74

    Thermal module 640-R150 with front plate for M73 (B model)  MOBOTIX S74 Like the M73, existing systems can be converted into a CNPP-certified fire detector via app and with a suitable thermal sensor, even if this designation does not quite do justice to its per- formance.
  • Page 14 Hardware Requirements MOBOTIX S74 Order Number Description Mx-O-M7SB-336RS150 S7x Thermal Module 336-R150 (B model) Mx-O-M7SB-336RS280 S7x Thermal Module 336-R280 (B model) Mx-O-M7SB-640RP050 S7x PTMount Thermal 640-R050 (B model) Mx-O-M7SB-640RP080 S7x PTMount Thermal 640-R080 (B model) Mx-O-M7SB-640RP100 S7x PTMount Thermal 640-R100 (B model)

  • Page 15: Connecting The Camera S74 - Connection Scheme

    Please refer to the additional technical documents for the CNPP compliant cameras, especially the Technical Specifications and the Installation Instructions: Camera Technical Specifications Quick Installation Guide https://www.mobotix.com/media/2979 https://www.mobotix.com/media/3068 https://www.mobotix.com/media/3691 https://www.mobotix.com/media/3694 CAUTION! To be compliant with CNPP 19005 Certification, a PoE+ power source according to EN54-4 is mandatory.

  • Page 16: Connecting The Outputs

    S74.   ② The Ouput for alarm trigger must be connected to the USB OUT connector of the S74. M73 - Connection Scheme Optical sensor is optional. Fig. 4: CNPP compliant installation of the MOBOTIX M73 16 / 42...

  • Page 17: Connecting The Outputs

    Fig. 5: CNPP compliant connection to the M73 Connector Box RJ45   The Output for error messages must be connected to the Line Out of the M73 Connector Box RJ45.   The Ouput for alarm trigger must be connected to the USB OUT connector of the M73 Connector Box RJ45.

  • Page 18: Licensing Certified Apps

    The usage period begins with activation of the app interface (see ) NOTE! For buying or renewing a license, contact your MOBOTIX Partner. NOTE! Apps are usually pre-installed with the firmware. In rare cases, apps must be downloaded from the website and installed.
  • Page 19 Licensing Certified Apps License Activation of Certified Apps in MxManagementCenter Fig. 6: Overview of Camera App Licenses in MxManagementCenter NOTE! If necessary, correct the time set on the camera.  1. An overview of the licenses installed on the camera may be displayed. Click Activate License. Fig.
  • Page 20 Licensing Certified Apps License Activation of Certified Apps in MxManagementCenter  4. To remove a line click  5. When you have entered all Activation IDs, click Activate License Online. During activation, MxMC con- nects to the license server. This requires an Internet connection. Fig.
  • Page 21 Licensing Certified Apps License Activation of Certified Apps in MxManagementCenter Fig. 9: Overview of Camera App Licenses in MxManagementCenter NOTE! If necessary, correct the time set on the camera.  3. An overview of the licenses installed on the camera may be displayed. Click Activate License. Fig.

  • Page 22: Managing Licenses In Mxmanagementcenter

    Licensing Certified Apps Managing Licenses in MxManagementCenter  4. Enter a valid Activation ID and specify the number of licenses to install on this computer.  5. If you want to license another product, click on . In the new row, enter the appropriate Activation ID and the number of licenses you want.
  • Page 23 Licensing Certified Apps Managing Licenses in MxManagementCenter  1. Select from the menu Window > Camera App Licenses.  2. Select the camera on which you want to license apps and click Select. Fig. 12: Overview of Camera App Licenses in MxManagementCenter An overview of the licenses installed on the camera may be displayed.
  • Page 24 Licensing Certified Apps Managing Licenses in MxManagementCenter Column Explanation Name Name of the licensed app Expiration the time limit of the license Quantity Number of licenses purchased for a product. Serial Number Unique identification determined by MxMC for the device used. If problems occur during licensing, please have the device ID ready.

  • Page 25: Camera Software Configuration

    Camera Software Configuration  1. In the camera web interface, open: Admin Menu / Update System Software. Fig. 14: Installing an MOBOTIX P7 App  2. In section Upload File browse for the MOBOTIX Thermal-Heat-Detection App ①  3. Click Start Software Update.  4. Reboot the camera.

  • Page 26: Activating The Usb Output

    Camera Software Configuration Activating the USB Output Fig. 15: Installing a MOBOTIX P7 App  2. In section Upload File browse for the MOBOTIX Thermal-Heat-Detection App ①  3. Click Start Software Update.  4. Reboot the camera. Activating the USB Output  1. In the camera web interface, open: Admin Menu / Hardware Configuration / Manage Hardware Expan- sions.

  • Page 27: Setting The Signal Out Profiles

    Camera Software Configuration Setting the Signal Out Profiles Fig. 16: Installing a MOBOTIX P7 App  2. In section USBPower Output click Connect ①  3. Click Start Software Update.  4. Click Set ② ③ to apply the changes then Close to close the window.

  • Page 28: Setting The Default Output

    Camera Software Configuration Setting the default Output Fig. 17: Setting Signal Out Profiles  2. Add two profiles - one for USB Out and one for Camera IO output.  3. For USB OUT: as Signal Out Action select Camera: USB Power ①...

  • Page 29: Activation Of The Certified App Interface

    Activation of the Certified App Interface CAUTION! The MOBOTIX Thermal-Heat-Detection App does not consider obscure areas defined for the live image. Therefore there is no pixelation in obscure areas while configuring the app and during image ana- lysis by the app.

  • Page 30: Configuration Of Mobotix Thermal-Heat-Detection App

     1. In the camera web interface, open: Setup Menu / Certified App Settings (http(s)://<Camera IP address>/control/app_config).  2. Click on the name of the MOBOTIX Thermal-Heat-Detection App. The configuration window of the app appears with the following options: 30 / 42...

  • Page 31: Detection Area Settings

    Camera Software Configuration Configuration of MOBOTIX Thermal-Heat-Detection App Detection Area Settings NOTE! Before defining Detection Areas the live image size should be set to or 4:3 format (e.g. Mega). Other- wise the areas might not appear in the expected place. Multiple Detection Areas with individual parameters can be defined.
  • Page 32 Camera Software Configuration Configuration of MOBOTIX Thermal-Heat-Detection App Fig. 20: Event Profiles   ID:Select or enter an unique numeric ID for the current profile.   Sensor Selection: If the camera has multiple image sensors, select the one that provides the video stream to be analyzed for the current Detection Area.

  • Page 33: Drawing A Polygon Area In The Live View

    Camera Software Configuration Configuration of MOBOTIX Thermal-Heat-Detection App   Show arrow to hottest spot:Check to show an arrow to the hottest spot within the Detection Area in the Live View   Show arrow to coldest spot:Check to show an arrow to the coldest spot within the Detection Area in the Live View  ...

  • Page 34: Mxmessagesystem

    This way, MxMessages can be distributed over the entire local network (see Message Area: Global). For example, a MOBOTIX 7 series camera can exchange a MxMessage generated by a camera app with an Mx6 camera that does not support certified MOBOTIX apps.

  • Page 35: Basic Configuration: Processing The Automatically Generated App Events

      Global: the camera expects a MxMessage that is distributed in the local network by another MxMessage device (e.g. another camera of the 7 series equipped with a certified MOBOTIX app).   Actions that the recipients are to perform are configured individually for each participant of the MxMessageSystem.

  • Page 36: Action Handling - Configuration Of An Action Group

    CAUTION! To use events, trigger action groups or record images the general arming of the camera must be enabled (http(s)/<Camera IP address>/control/settings) An action group defines which action(s) is (are) triggered by the MOBOTIX Thermal-Heat-Detection App event.  1. Go to Setup-Menu / Event Control / Action Group Overview (http(s)://<Camera IP address>/control/actions).
  • Page 37 Camera Software Configuration Basic configuration: Processing the automatically generated app events ① ②  2. Click Add new group and give a meaningful name  3. Click Edit ③ , to configure the group. Fig. 25: Configuring an Action Group ④  4. Enable Arming of the Action Group.

  • Page 38: Action Settings - Configuration Of The Camera Recordings

    Camera Software Configuration Basic configuration: Processing the automatically generated app events ⑧  8. Click on the Set button at the end of the dialog box to confirm the settings. ⑨  9. Click on Close to save your settings permanently. Action settings - Configuration of the camera recordings  1.

  • Page 39: Advanced Configuration: Processing The Meta Data Transmitted By Apps

    For each event, the app also transfers meta data to the camera. This data is sent in the form of a JSON schema within a MxMessage. Fig. 28: Example: Meta data transmitted within a MxMessage of the MOBOTIX Thermal-Heat-Detection App NOTE! To view the meta data structure of the last App event, enter the following URL in the address bar of...
  • Page 40 Message Range:   Local: Default settings for the MOBOTIX Thermal-Heat-Detection App   Global: (MxMessage is forwarded from another MOBOTIX camera in the local network.   Filter Message Content:   No Filter: Trigger on any message according to the defined Message Name.

  • Page 41: Examples For Message Names And Filter Values Of The Mobotix Thermal-Heat-Detection App

    Camera Software Configuration Advanced Configuration: Processing the meta data transmitted by apps Examples for message names and filter values of the MOBOTIX Thermal-Heat-Detection App Event MxMessage Name Filter Value Explanation Temperature Event MXThermalTRAdvanced.event_ “<Detection Win- Temperature Event triggered dow ID>” Failure Event MXThermalTRAdvanced.sensor_...
  • Page 42 MOBOTIX AG • Kaiserstrasse • D-67722 Langmeil • Tel.: +49 6302 9816-103 • sales@mobotix.com • www.mobotix.com MOBOTIX is a trademark of MOBOTIX AG registered in the European Union, the U.S.A., and in other countries. Subject to change without notice. MOBOTIX do not assume any liability for technical or editorial errors or omissions contained herein. All rights reserved. © MOBOTIX...
