Summary of Contents for Collomix AGIA 200

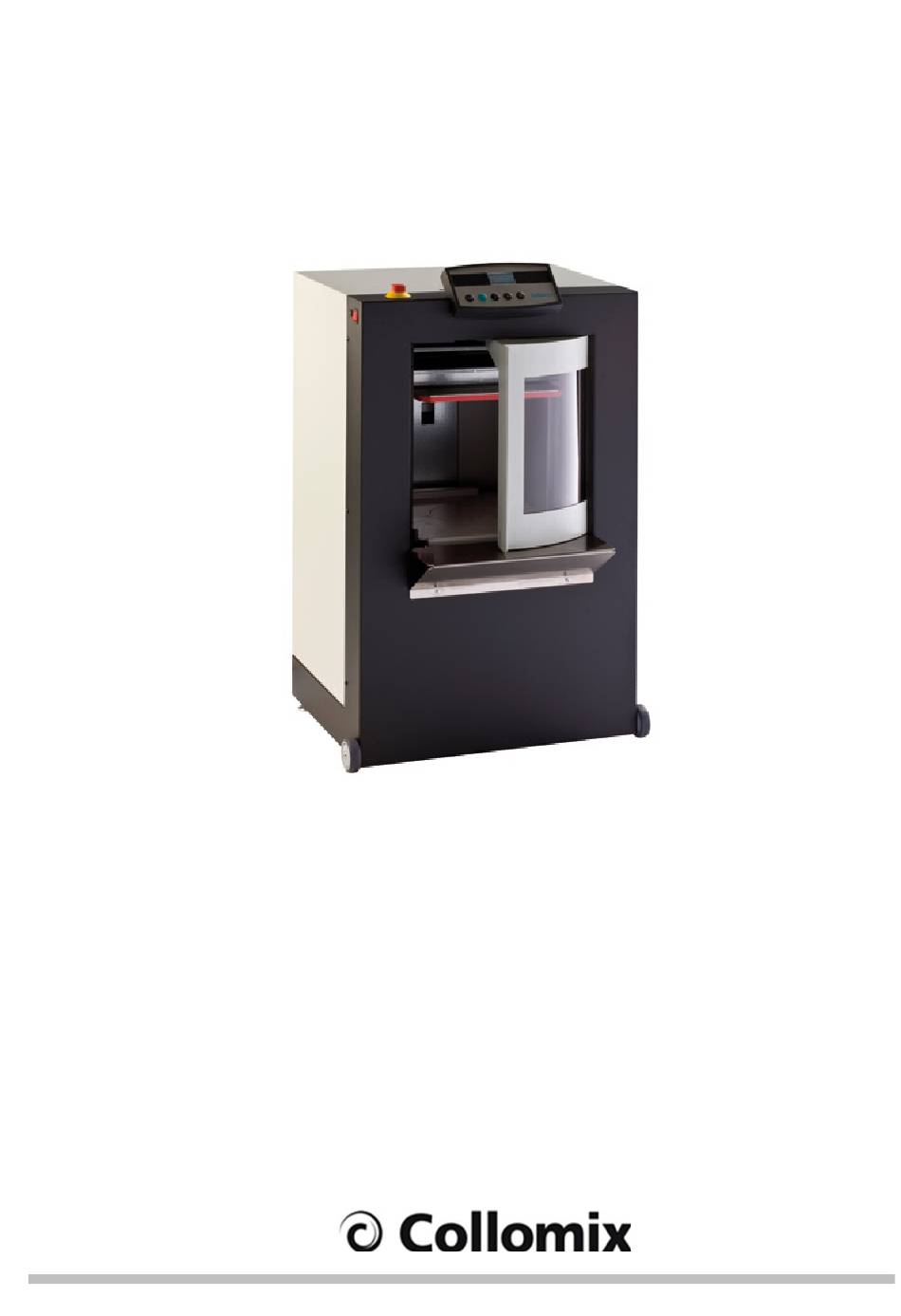

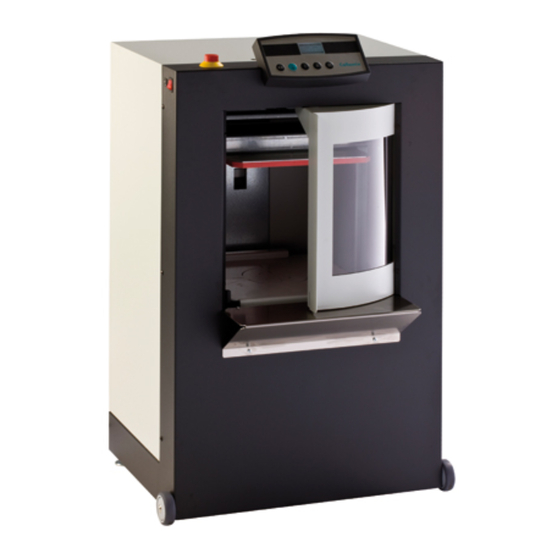

- Page 1 Instructions Shaker AGIA 200 VIBA 300 & VIBA 330 Keep this manual within immediate reach of the machine Translation of the original instructions -en Englisch Version G 1.4-16...
- Page 2 Shaker AGIA 200, VIBA 300 & VIBA 330 Collomix GmbH D-85080 Gaimersheim Version G 1.4-16...
-
Page 3: Table Of Contents
Collomix GmbH Shaker AGIA 200, VIBA 300 & VIBA 330 D-85080 Gaimersheim Contents 1. Layout Drawings ......................4 Machine components Operating and display components 2. About this document ....................6 Pictograms and symbols 3. For your safety ......................7 General Safety Information... -
Page 4: Layout Drawings
Shaker AGIA 200, VIBA 300 & VIBA 330 Collomix GmbH D-85080 Gaimersheim Layout Drawings Machine components Machine components 1. Power supply and fuse 6. Manual door release 2. Mixing table 7. Operating unit CSE 3. Clamping plate 8. Door 4. Main switch 9. -
Page 5: Operating And Display Components
Collomix GmbH Shaker AGIA 200, VIBA 300 & VIBA 330 D-85080 Gaimersheim Operating and display components Button for DOOR • OPEN door • OPEN the mixing unit Button E • STOP – stop mixing cycle prematurely • ACKNOWLEDGE messages Button I Mixing cycle I •... -
Page 6: About This Document
Shaker AGIA 200, VIBA 300 & VIBA 330 Collomix GmbH D-85080 Gaimersheim About this document These instruction uses symbols and labels, which should make it easier for you to find information swiftly. Please read the explanations in the following Section. Please read the safety and warning information in these instructions especially carefully. -
Page 7: For Your Safety
Any other or expanded use of the Shaker is a non-intended and therefore, improper use. In this case, the safety mechanisms and the protection provided by them may be compromised. Collomix GmbH is not liable for any damages caused by it. Part of the intended use are: complying with all information in these Operating Instructions ... -
Page 8: Foreseeable Misuse
The use of the equipment outside the physical use limitations described in the Chapter "Commissioning / Operating". The modification of the control software without the prior coordination with Collomix GmbH. Modifications on the Shaker as well as add-ons and retrofits without the prior coordination with ... -
Page 9: Safety-Relevant Components
Collomix GmbH Shaker AGIA 200, VIBA 300 & VIBA 330 D-85080 Gaimersheim Safety-relevant components The machine is equipped with various safety devices. These help to avoid dangers to body and life through electrical and mechanical impacts on the persons working with the Shaker and they help to limit any material damages to the system. -
Page 10: Set-Up And Using The Shaker For The First Time
Shaker AGIA 200, VIBA 300 & VIBA 330 Collomix GmbH D-85080 Gaimersheim Set-up and using the Shaker for the first time Content The Shaker is delivered with the following: These Operating Instructions Cover insert made of foam A rubber band to secure the handles ... -
Page 11: Remove Transport Lock
Collomix GmbH Shaker AGIA 200, VIBA 300 & VIBA 330 D-85080 Gaimersheim 5.2.2 Remove transport lock To protect the mixing unit from damages during transport, it is secured with a lashing belt, which goes over the mixing unit. The belt must be removed prior to switching on the machine: To release, pull the slider and move the lever by approx. -
Page 12: Operation
Shaker AGIA 200, VIBA 300 & VIBA 330 Collomix GmbH D-85080 Gaimersheim Operation Prior to working with the machine, check all parts for their proper condition and function. Do not start the machine with defective or missing parts. WARNING Risk of injury by machine parts that continue to rotate After the machine is turned off, there are still rotating parts that can cause injuries. -
Page 13: Starting The Mixing Cycle
Collomix GmbH Shaker AGIA 200, VIBA 300 & VIBA 330 D-85080 Gaimersheim Starting the mixing cycle The mixing cycle can only be started after the door is closed. Push buttons I, II, or III to start the mixing process. The corresponding mixing times are shown ... -
Page 14: Errors And Troubleshooting
Shaker AGIA 200, VIBA 300 & VIBA 330 Collomix GmbH D-85080 Gaimersheim Errors and Troubleshooting The troubleshooting tables in this Chapter will help you to determine whether you can troubleshoot yourself or whether you need to call customer service. IMPORTANT Jot down the serial number of the machine and the error code from the display before you call customer service. -
Page 15: Unlock Door Manually
Collomix GmbH Shaker AGIA 200, VIBA 300 & VIBA 330 D-85080 Gaimersheim Unlock door manually The machine is equipped with a safety lock, which locks the door automatically after it is closed. In the event of a malfunction or power outage, the door can be locked manually. -
Page 16: Storage, Disposal
Shaker AGIA 200, VIBA 300 & VIBA 330 Collomix GmbH D-85080 Gaimersheim Storage, disposal Storage The storage area should be cool and dry in order to prevent corrosion on the individual parts of the machine. The room temperature of the storage area must be constantly above freezing. -
Page 17: Appendix
For your rights in the event any rectifications become necessary, please read our General Delivery Terms and Conditions. You find these on our website www.collomix.de. We are happy to send you our General Delivery Terms and Conditions on request. Version G 1.4-16... -
Page 18: Ec Conformity Declaration
EN 55011:2009 + A1:2010, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005 + AC:2005 in accordance with the requirements of the guidelines: 2006/95/EC, 2004/108/EC (19.04.2016), 2014/30/EU (20.04.2016) 2006/42 EC Please request technical information from: Collomix GmbH, Abt. Technische Entwicklung, Daimlerstr. 9, 85080 Gaimersheim, Deutschland Gaimersheim, 29/03/2016... - Page 19 Collomix GmbH Shaker AGIA 200, VIBA 300 & VIBA 330 D-85080 Gaimersheim Version G 1.4-16...
- Page 20 Shaker AGIA 200, VIBA 300 & VIBA 330 Collomix GmbH D-85080 Gaimersheim Collomix GmbH Daimlerstr. 9, 85080 Gaimersheim Germany Tel.: +49 (0)8458 32 98 - 0 Fax: +49 (0)8458 32 98 30 www.collomix.de Version G 1.4-16...
