Instructions

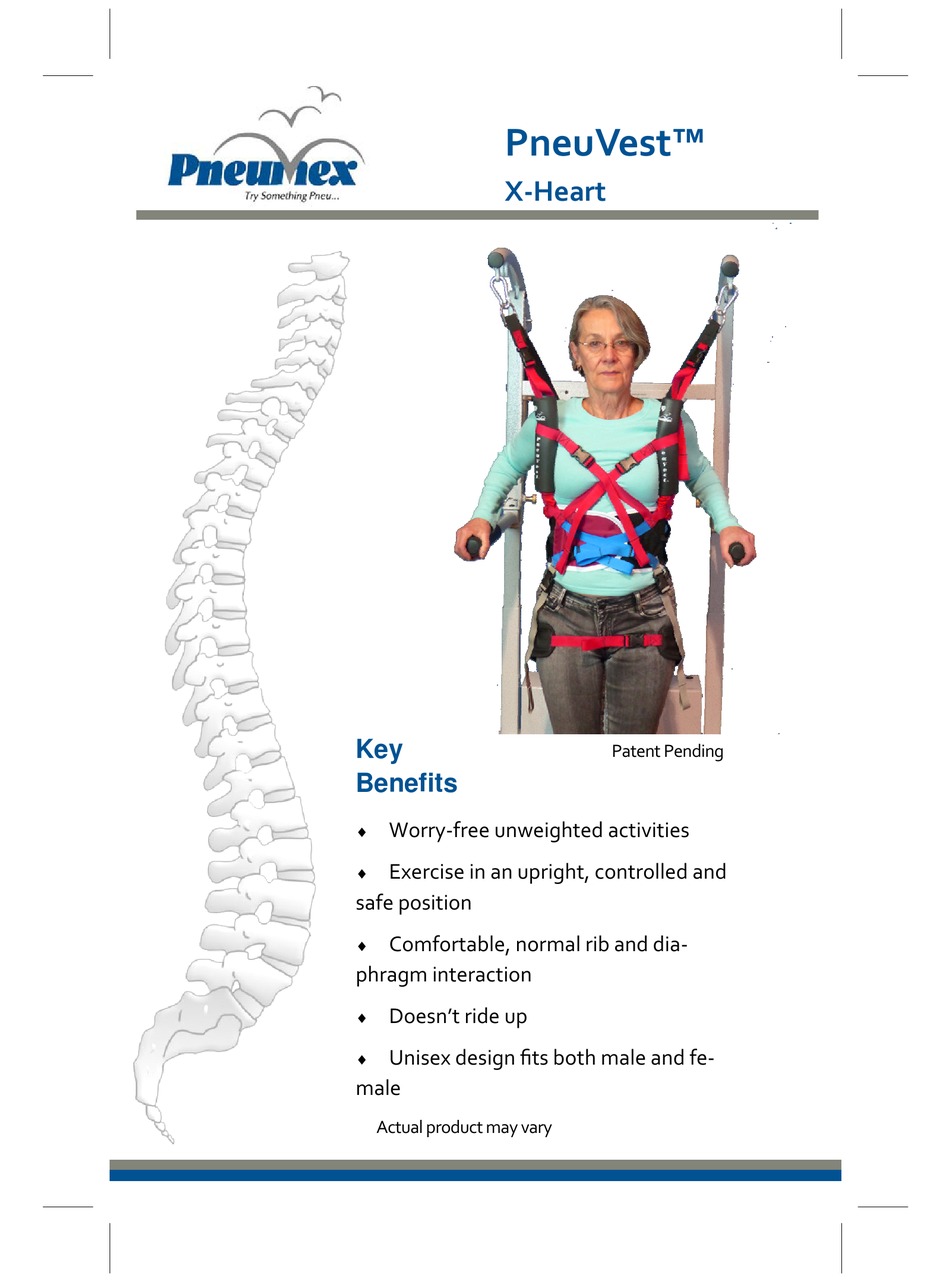

PneuVest™
X‐Heart
Key
Benefits

Worry‐free unweighted activities

Exercise in an upright, controlled and
safe position

Comfortable, normal rib and dia‐
phragm interaction

Doesn't ride up

Unisex design fits both male and fe‐
male
Actual product may vary
Patent Pending

Advertisement

loading
Need help?

Need help?

Do you have a question about the PneuVest X-Heart and is the answer not in the manual?

Questions and answers

Summary of Contents for Pneumex PneuVest X-Heart

  • Page 1 PneuVest™  X‐Heart Instructions Patent Pending  Benefits  Worry‐free unweighted activities   Exercise in an upright, controlled and  safe position   Comfortable, normal rib and dia‐ phragm interaction   Doesn’t ride up   Unisex design fits both male and fe‐ male  Actual product may vary ...
  • Page 2 Distributed by Pneumex, Inc.  Pneumex, PneuGait Foot Strap, PneuMAP,  PneuBack  Chair, PneuWeight, PneuWalker and  PneuVest are      trademarks of Pneumex, Inc.  Copyright 2003 Pneumex  All rights reserved    Visit our web site at   www.pneumex.com     Pneumex, Inc.  2605 North Boyer Ave.  Sandpoint, ID 83864  Phone 208‐265‐4105  Fax     208‐265‐9651  E‐mail pneumex@pneumex.com    Rev 2  Revised  March 16, 2017 ...
  • Page 3: Table Of Contents

    Index Safety Requirements ............  4   Maintenance  ..............  4   Vest Problems ..............  5   X‐Heart Vest ..............  6   X‐Heart Vest Parts ............ 7  Sizing ................  8   Putting on X‐Heart Vest  .......... 8‐11  Warranty ............... 12 ...
  • Page 4: Safety Requirements

    Safety Requirements Read this entire manual before using the Pneu‐Vest™ .  Do not unweight until you are sure the vest is properly  secured.  Before each use, inspect the vest for damage. Do not use if the     integrity is questionable.  Maintenance   Cleaning When needed, machine‐wash the vest on gentle cycle using        regular detergent and cold water. Hang to dry.  Disinfection Use procedures established for your facility. The vest can be  washed with a mixture of water and disinfectant such as Lysol or  equivalent. Do not use bleach on the vest or the color will fade.     ...
  • Page 5: Vest Problems

    Description The Pneumex X‐Heart vest is a totally new concept in                     unweighting.  This vest is designed to place the primary lift point  at the posterior rib cage T12 to T10 and bring the primary anterior  stabilization points medial to brachial plexus.  The net effect of  the technology is a more comfortable, more secure vest that     significantly opens up lung capacity.
  • Page 6: X-Heart Vest

    X-Heart Vest Patented X‐Heart Vest   Thoracic Belt A  A  B  B  C  D  D  I  I  J  H  F  K  F  G  L  L  M  O  N  P  Q  R  T  T  S  IT Belt Actual product may vary ...
  • Page 7 Thoracic Belt  A.   D‐RING Connector to unweighting unit   B.    Anterior Shoulder Buckle   C.  Posterior Shoulder Strap  D.  Anterior Tensioning Strap (Runs through F Shoulder Pad)  F.    Shoulder Pad (anterior)  G.   Right Anterior Crossover Strap  H.  Left Anterior Crossover  Strap  I.  Right Anterior Crossover  Buckle  J.  Left Anterior Crossover  Buckle  K.  Center Back Guide  L.  Thoracic Belt  M.   Right Abdominal Tensioning Strap   N.   Left Abdominal Tensioning Strap   O.  Right Abdominal Tensioning Buckle  P.  Left Abdominal Tensioning Buckle   Q.  4 –Thoracic Connector Buckles (Gray tabs)     IT (Ischial Tuberosity Belt )    R.  4– Thoracic Connector  Straps (Gray)  S.  IT Belt   T.  IT Belt Strap and Buckle   ...
  • Page 8: Sizing

    Sizing Determine correct vest sizing based on waist size.    Size Vest Color Waist Size Small  Red  28”  to    34”  Medium  Blue  34”  to    44”               Large  Yellow  44”  to   55”  Available in custom sizing Pediatric to Bariatric on request  Putting on the X-Heart Vest   The vest will be packaged with thoracic and IT belts hooked  together, gray thoracic connector straps secured into the  gray tabbed thoracic connector buckles.  For ease of use  keep the vest buckled in this configuration.  If they are       separated, re‐attach them by inserting the four gray straps  into the corresponding gray tabbed buckles.   (See diagram page 6‐7)  Lengthen all the straps before putting the vest on your       patient. ...
  • Page 9 Small  Medium  Large ...
  • Page 10 Putting on the X-Heart Vest Before putting the vest on, make sure the patient is wearing  appropriate clothing. Layered, bulky, loose fitting and slick  clothing will tend to allow the vest to ride up.  For ease of use, attach the vest to the      unweighting system.  ►  If using a PneuWeight, pull cable          assembly out to approximately the  right position for the person being      unweighted.  ► If using the PneuWalker, clip to the      desired patient ports on the Lift Arm.     Have the patient back into the vest.  Put their right arm through the right  side of the vest and the left arm through  the left side of the vest.    Actual product may vary ...
  • Page 11 Position the Thoracic Belt by adjusting  the top of vest just below the Sternum.  Hand pockets on  the belt may be  used to facilitate a  snug fit.  Place your  hands in pocket  sand push inward  crossing right over left.  The vest should be positioned so that the Abdominal     Buckles on the Thoracic Belt are centered side to side.   Secure the front of vest by buckling  both  blue Abdominal  Tensioning  Straps across the front to the opposite  side buckle.          Pull the loops on the                abdominal Tensioning Straps  to snug up under rib cage.           Actual product may vary ...
  • Page 12 Bring the Left Anterior    Crossover Strap (red) across  the chest and buckle into the   corresponding buckle on the  right side of the vest.        Bring the Right Anterior Crossover  Strap (red) across the chest and  buckle into the  corresponding    colored buckle on the left  side of  the vest.           The front of the vest when correctly buckled .   ...
  • Page 13 The X‐Heart vest can be used with or  without the IT strap.  If using bring the IT Belt around the    buttock to just  below the Greater       Trochanter ( at hip joint).            Connect the IT Hip Buckle.  Tighten  the  IT belt by pulling on the front straps.              Tighten the 4Thoracic Connector  Straps  (Gray). This will raise the IT Belt up so it  will  secure under the gluteal fold.   I   ...
  • Page 14 Shoulder Straps If patient is not fully upright, shoulder  straps can be shortened to bring lift arm  or spreader bar closer to shoulders.      Adjust the Anterior Tension Straps to       provide correct amount of lift.   Unweight to desired level.  Actual product may vary ...
  • Page 15 Most common challenges: Thoracic Belt too loose  Solution. Reposition and snug up blue Abdominal strap by pulling  on loops.  IT Strap positioned incorrectly, so it forms a sling or rides up  Solution: Reposition around greater trochanter and snug IT Hip  Straps.     Vest Problems If you have questions  not  addressed here, please call Pneumex at   1‐800‐447‐5792.      Notes...
  • Page 16: Warranty

    Your Warranty  If a product purchased from Pneumex does not operate properly,  Pneumex will repair or replace it at no charge, for up to one year  from the date shipped.   In the course of repair or replacement,  Pneumex may send you written recommendations on how to  prevent a problem from occurring again.  Pneumex reserves the  right to withdraw this warranty if recommendations are not  followed.  The customer is responsible for freight charges both to  and from Pneumex in all cases.   This warranty does not apply to compressors which are covered by  the compressor manufacturers.  This warranty is exclusive and is in lieu of all other warranties  whether written, oral or implied, including the warranty of fitness  for any particular purpose.  Pneumex liability is in all cases limited  to the replacement price of its product. Pneumex shall not be  liable for any other damages, whether indirect, consequential, or  incidental arising from the sale or use of its products.  Pneumex sales personnel may modify this warranty, but only by  signing a specific  written description of any modifications.    Pneumex  2605 Boyer Ave  Sandpoint, ID 83864  pneumex@pneumex.com     www.pneumex.com  800‐447‐5792  Pneumex Equipment ...
