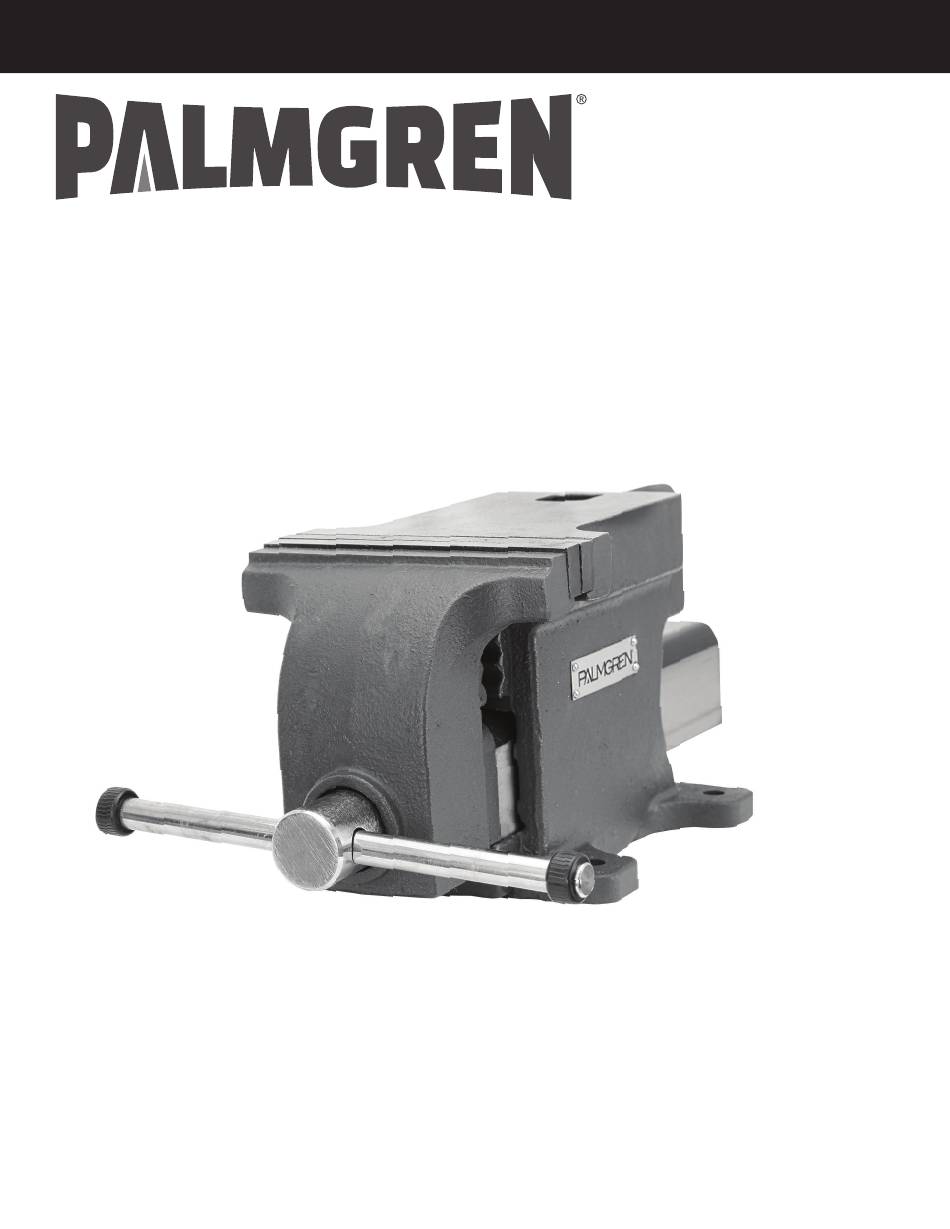

- Page 1 9629749 Operating Instructions & Parts Manual 6” Anvil Bench Vise 9646387.01...
- Page 2 INJURY AND/OR PROPERTY DAMAGE! RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. PLEASE REFER TO BACK COVER FOR INFORMATION REGARDING PALMGREN’S WARRANTY AND OTHER IMPORTANT INFORMATION. Model #: ___________________ Serial #: ___________________ Purch. Date: _______________ © 2020 Palmgren Electric Manufacturing Co. All Rights Reserved...
- Page 3 SPECIFICATIONS Parameter Value Jaw width 6” Jaw opening 6” Throat depth 3” Pipe jaw capacity 0.5” - 3.5”” Figure 1. Vise Exploded Parts View Description Anvil base 9647073.01 Lead screw nut 9647074.01 Jaw plates 9647075.01 Pan head screw 3/16” x 1-1/4” Leadscrew Collar 9647076.01 Handle bar...
- Page 4 - 3 YEARS. The obligation of C.H. Hanson / Palmgren is limited solely to the repair or replacement, at our option, at its factory or authorized repair agent of any part that should prove inoperable.
