Summary of Contents for Palmgren MSR 4

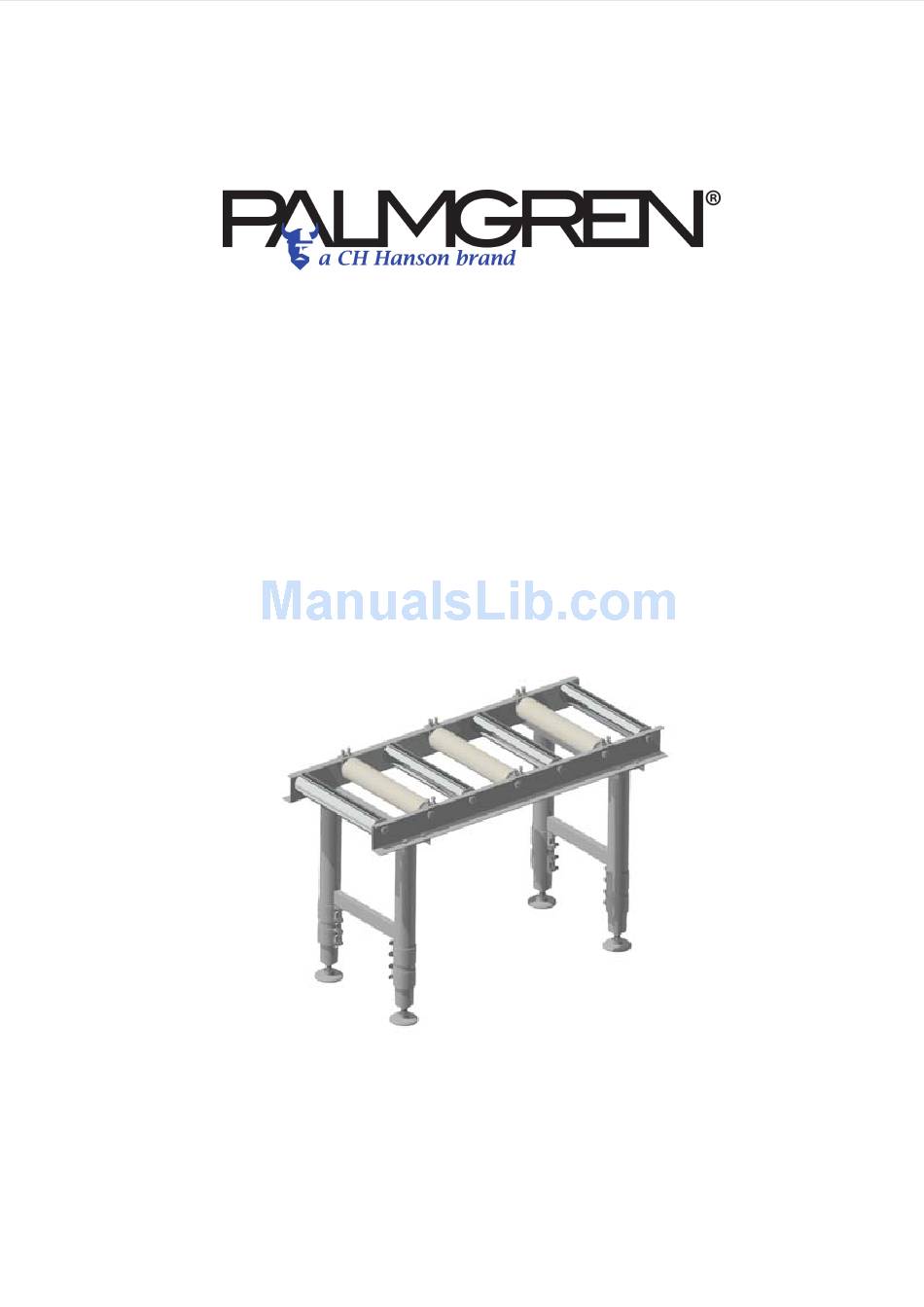

- Page 1 Operating manual Version 2.0.2 Material stand MSR 4 - 9670150 MSR 7 - 9670151...
-
Page 2: Table Of Contents
Table of contents Intended use Safety instructions ............................4 Technical data ............................4 Assembly Height-adjustable material stand ......................5 Dimensions MSR4 | MSR7........................6 Spare parts.............................7-8 Page 2... - Page 3 Preface Dear customer, Thank you very much for purchasing a product made by company. Company machine accessories offer a maximum of quality, technically company solutions and convince by an outstanding price performance ratio. Continuous enhancements and product innovations guarantee state- of-the-art products and safety at any time.
-
Page 4: Intended Use
Always make sure that no persons are endanged if the workpiece gets off-center or if it is falling down. Repairs on the material stand must only be performed by specialist staff. Wear safety shoes. Technical data MATERIAL STAND MSR 4 MSR 7 Support roller diameter [mm/inch] 60(2.36") 60(2.36") Support roller width [mm/inch] 360(14.17") 360(14.17") Width of the material stand [mm/inch] 440(17.3") -
Page 5: Height-Adjustable Material Stand
Height-adjustable material stand To be able to adjust the height of the material stand, proceed as following. Loosen the cap screws with a adequate key. Adjust the stand foot to the required height Re-fasten the cap screws with a appropriate key. -
Page 6: Dimensions Msr4 | Msr7
Dimensions MSR4 | MSR7 Img.2-4: Dimensions Page 6... -
Page 7: Spare Parts
Spare parts MSR4 | MSR7 Abb.5-1: Spare parts DE | GB... -
Page 8: Steel Tube Msr4,Msr7,Msr10
parts list MSR4-LMS | MSR7-LMS Artikel- Menge Grösse nummer Bezeichnung Designation Qty. Size Item no. Standfuss stand Ø 80 mm 033576101 Gewindestange threaded rod M16x80 033576102 Stahlrohr MSR4,MSR7,MSR10 steel tube MSR4,MSR7,MSR10 Ø 52 mm 033576105 Innensechskantschraube cap screw M8x20 033576106 Ständer pillar 033576107... -
Page 9: Stand
LIMITED WARRANTY COMPANY ONE-YEAR LIMITED WARRANTY. COMPANY, MODELS COVERED IN COMPANY THIS MANUAL, WARRANTED ORIGINAL USER AGAINST DEFECTS IN WORKMANSHIP OR MATERIALS UNDER NORMAL USE FOR ONE YEAR AFTER DATE OF PURCHASE. ANY PART WHICH IS DETERMINED TO BE DEFECTIVE IN MATERIAL WORKMANSHIP RETURNED...
