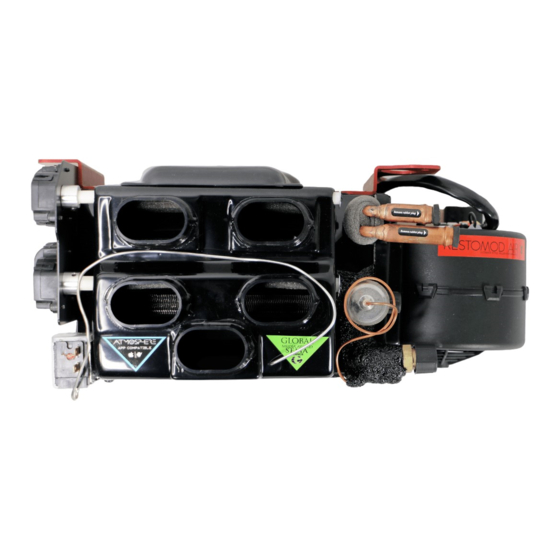

- Page 1 BANTAM II SYSTEM CALIBRATION INSTRUCTIONS ©2018 RestomodAir / 05.18...
- Page 3 You need to read this TEMPORARILY RECONNECT THE BATTERY AT THIS TIME. YOU CAN NOW CALIBRATE YOUR UNIT. CALIBRATION: Before we boxed and shipped your Control, we tested and calibrated it to factory specifications to make sure it is capable of operating at maximum efficiency.
-
Page 4: Bench Calibration
BENCH CALIBRATION HIGH Start by positioning the knobs as shown: Insert Calibration Key as shown (LED up) into 6-pin connection in ECU YOU WILL SEE... Turn fan knob to high {Full Clockwise) Page 4 www.restomodair.com 866.784.4278... - Page 5 BENCH CALIBRATION AFTER YOU MOVE THE KNOB YOU WILL SEE... MODE Move MODE knob Left in one motion (Full Counter Clockwise) TEMP AFTER YOU MOVE THE KNOB YOU WILL SEE... Move TEMP knob Right in one motion ( Full Clockwise) Page 5 www.restomodair.com 866.784.4278...
- Page 6 BENCH CALIBRATION You will be able to hear the internal door(s) move back and forth and feel air coming out of the outlets YOU WILL SEE LED TURN OFF Move FAN knob to Left (Full Counter Clockwise) REMOVE CALIBRATION KEY FROM ECU AND STORE IN A SAFE PLACE Page 6 www.restomodair.com...
-
Page 7: Function Testing
FUNCTION TESTING MODE MODE MODE HIGH Move FAN knob to HIGH Move MODE knob to DEF Move MODE knob to FLOOR Move MODE knob to DASH (Position 1) (Position 6) (Position 11) AIR OUT OF DASH VENTS AIR OUT OF DEFROST AIR OUT OF FLOOR Page 7 www.restomodair.com... - Page 8 FUNCTION TESTING Return all wiring TEMP TEMP harnesses, water valve, and ECU to their originally bags/boxes (this keeps them organized for future installation steps). Your controls are now fully Move TEMP knob to Right Move TEMP knob to Left calibrated to your unit. (Full Clockwise) Please refer to the next steps in your installation...
