[SOC1S04] SysOn CF Memory GPS

SysOn CF Memory GPS Receiver

Two in One !

User Manual V 1.0

• GPS & Memory in one CF card

• High Sensitivity

• Low Power Consumption

• The Smallest & Thinnest Design

http://www.sysonchip.co.kr

User Manual V1.0 Aug, 2004

SysOnChip, Inc. 2004

Table of Contents

Need help?

Do you have a question about the SysOn CF and is the answer not in the manual?

Questions and answers

Summary of Contents for SYSONCHIP SysOn CF

Page 1 [SOC1S04] SysOn CF Memory GPS SysOn CF Memory GPS Receiver Two in One ! User Manual V 1.0 • GPS & Memory in one CF card • High Sensitivity • Low Power Consumption • The Smallest & Thinnest Design http://www.sysonchip.co.kr User Manual V1.0 Aug, 2004...
Page 2: Table Of Contents
MP3 music, images C. Driver Installation and documents files. SysOn CF Memory GPS will be shipped as two different D. Operation versions of 256MB or 512 MB flash memory with the high performance GPS receiver in a single CF card.
Page 3: Designation

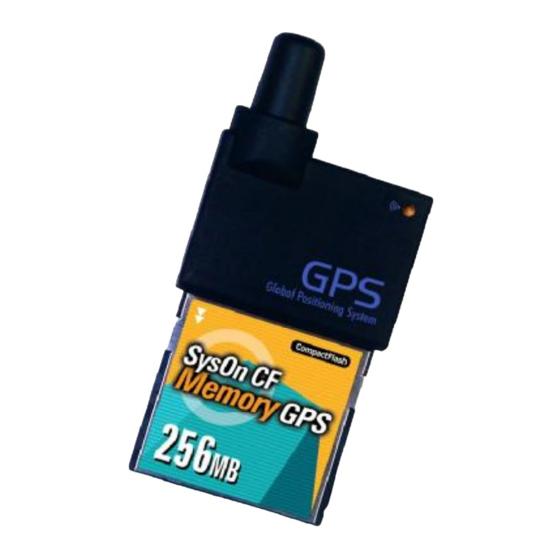

[SOC1S04] SysOn CF Memory GPS A. Designation High performance GPS antenna GPS status indicator LED Optional external antenna port Status Function Color Waiting GPS signal reception Blinking During GPS signal reception Current position fixed User Manual V1.0 Aug, 2004 SysOnChip, Inc. 2004...
Page 4: System Requirements
[SOC1S04] SysOn CF Memory GPS B. System Requirements Minimum system requirements for SysOn CF Memory GPS Receiver are as follows. PC or laptop computer with Microsoft Windows 95 or higher Microsoft Active sync 3.5 or higher Microsoft Windows Powered Mobile Device with a Compact Flash slot...
Page 5: Driver Installation
[SOC1S04] SysOn CF Memory GPS C. Driver Installation The first step is to install the “SysOn CF Memory GPS Driver” software very easily. Connect your PDA to your computer with Microsoft Active sync. Insert the SysOn CF Memory GPS CD into your PC.
Page 6 [SOC1S04] SysOn CF Memory GPS 3.1. The installation wizard will begin. Follow the directions on the screen. Click “Next”. User Manual V1.0 Aug, 2004 SysOnChip, Inc. 2004...
Page 7 [SOC1S04] SysOn CF Memory GPS 3.2. Please carefully read the [License Agreement] and select “I accept the terms in the license agreement”. Then, click “Finish”. User Manual V1.0 Aug, 2004 SysOnChip, Inc. 2004...
Page 8 [SOC1S04] SysOn CF Memory GPS 3.3. Click “Yes (Y)”. User Manual V1.0 Aug, 2004 SysOnChip, Inc. 2004...
Page 9: Operation
[SOC1S04] SysOn CF Memory GPS D. Operation Insert the SysOn CF Memory GPS into the PDA CF slot. You will hear the alarm sound. This sound means success installation. “Start” à “Programs” à “File Explorer”. User Manual V1.0 Aug, 2004...
Page 10 [SOC1S04] SysOn CF Memory GPS The screen of this step might be different subject to OS platform. Windows Mobile 2003/WinCE.NET OS Pocket PC /Pocket PC 2002 OS User Manual V1.0 Aug, 2004 SysOnChip, Inc. 2004...
Page 11 [SOC1S04] SysOn CF Memory GPS Now, you will see the memory capacity. “Start” à “Settings” à “System” à “Memory” à Storage Card”. For 256MB version: Total Memory Capacity - 256MB For 512MB version: Total Memory Capacity – 512MB User Manual V1.0 Aug, 2004...
Page 12: Gps Com Port Setting
[SOC1S04] SysOn CF Memory GPS GPS COM Port Setting COM Setting Baud rate Setting Pocket PC 2002 HP iPAQ 3600 Series COM4 Pocket PC 2002 HP iPAQ 3800 Series COM5 Pocket PC 2002 HP iPAQ 3900 Series COM6 Pocket PC 2002...
Page 13: User Tips
1. If the driver file is deleted by mistake : You can find Windows CE device auto installer Microsoft Cabinet File (CAB file) in the memory of SysOn CF Memory GPS. In case that the driver file is deleted from your PDA main memory, you can simply install the device driver file with this CAB file without connection to a computer.
Page 14 [SOC1S04] SysOn CF Memory GPS After copying it to the PDA main memory, it will easily enable the driver installation in one click. Just click SysOnCFMemoryGPS.ARM.CAB file and you will see the driver installed. User Manual V1.0 Aug, 2004 SysOnChip, Inc. 2004...
Page 15 [SOC1S04] SysOn CF Memory GPS 2. Correct setting up with TomTom S/W : <Option 1 (Recommended)> <Option 2> You can set up the following configurations at TomTom Navigator. - Protocol and baud rate : NMEA 0183v2 4800 TomTom Navigator GPS...
Page 16: Optional Accessories
G. Optional Accessories • External Active Patch Antenna (Optional) Generally SysOn CF Memory GPS provides excellent high sensitivity and gets GPS reception so quickly without an external antenna even in the difficult situation like urban canyons, foliage, etc. But, some special metallic windshield coating of vehicles may interrupt the GPS signal itself passing through the car windows.
Page 17 If you ship the product to Sysonchip or one of authorized distributors, you must use the original container or equivalent and the shipping charges are responsible for you.
Page 18 [SOC1S04] SysOn CF Memory GPS WARRANTY LIMITATIONS AND EXCLUSIONS This warranty applies only to the original consumer purchaser and is not assignable or transferable. This warranty does not apply to any product which has been subjected to misuse, misapplication, abuse, abnormal use, negligence, alteration or accident, or any product having its serial number altered or removed.
