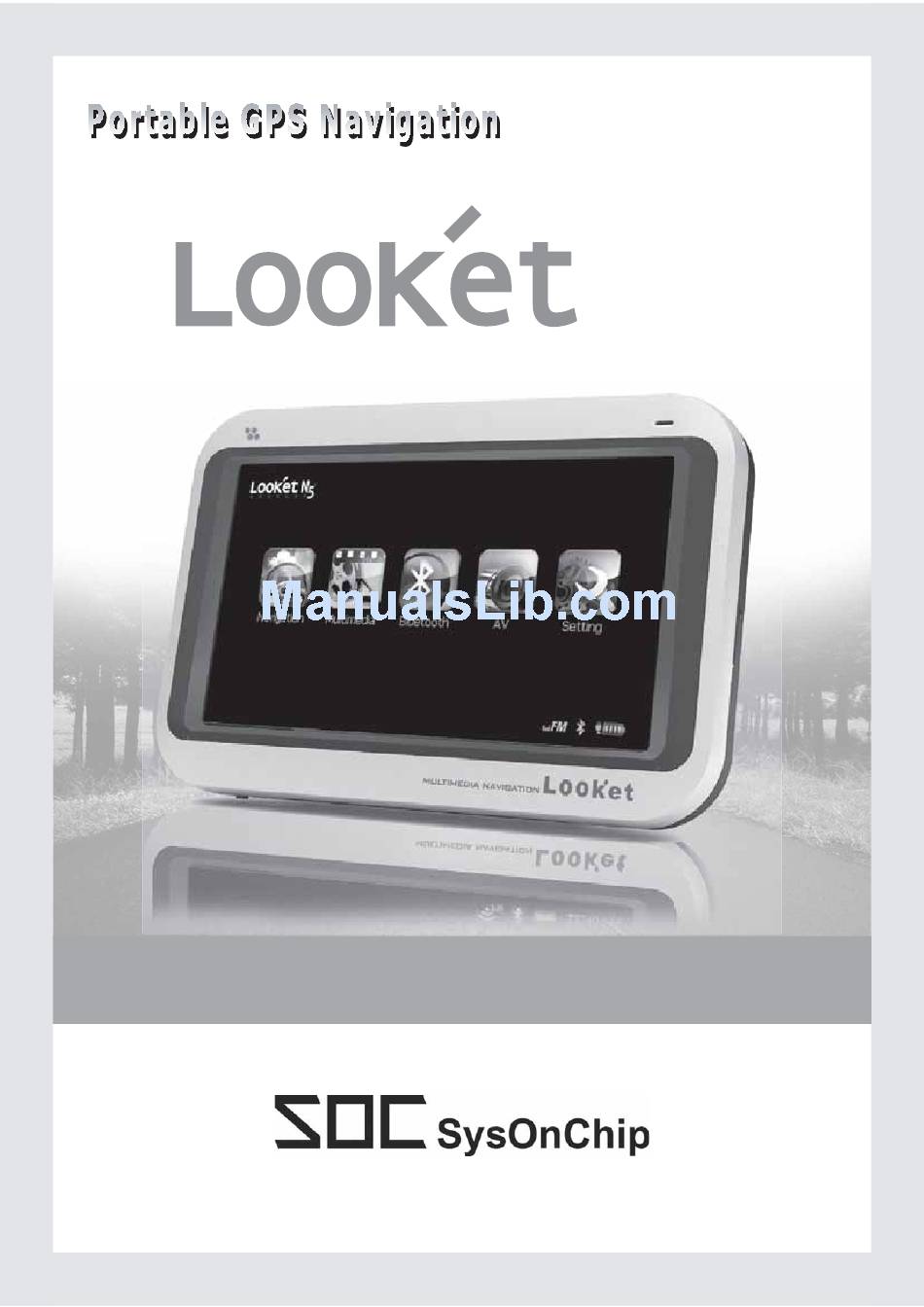

  • Page 1 User Guide Manual (ver1.0)
  • Page 2 Thank you for choosing and purchasing the Looket N5 model as your GPS navigation and welcome to Guide Manual. The device is very easy to use and it takes you just few steps to understand how it works.

  • Page 3: Table Of Contents

    - CONTENTS - Looket N5 Models ..............3 How to insert SD card ............. 3 Designation ................4 Main Screen ................5 NAVIGATION Menu ..............5 First Launch ................. 5 Designation of the navigation screen ........7 Useful function on the main menu ......... 8 How to set your home location ..........

  • Page 4: Looket N5 Models

    www.looket.com Looket N5 Models Models N510 N530 N570 Features Navigation Bluetooth Hands-free Music Player Multimedia Player FM Transmitter AV-in * Models and features are subject to be changed without notice. How to insert SD card Be careful of the direction when the SD card is inserted.

  • Page 5: Designation

    Designation Sleep & Wake-up or Reset Button If it is clicked shortly, the device is suspended (on the sleep mode). But if it is pressed for 2 seconds and over, the software reset is conducted. * Software Reset Please press and hold the reset button ( ) for over 2 seconds.

  • Page 6: Main Screen

    www.looket.com Main Screen After turning on the Looket N5 for the first time, Navigation, Multimedia, Bluetooth, AV, Setting can be selected (in case of the Looket N530 and N570 models). NAVIGATION Menu This User Guide Manual which is a quite simple manual to follow will take you to understand how it works.
  • Page 7 1. Tap NAVIGATION on the Main menu. After reading the important message, click I AGREE. Select your language, voice, distance units, k e y b o a r d preference map. 3. After chose your map, the device is auto-searching for GPS signal, and then its COM port and baud rate which the device is supporting will be set automatically.

  • Page 8: Designation Of The Navigation Screen

    www.looket.com After successful launch, you would probably see your current valid GPS position on the map. If you see only grey screen after launch, you should probably check your GPS status first and wait for valid GPS signal. It takes some time to get valid signal from available satellites.

  • Page 9: Useful Function On The Main Menu

    Useful function on the main menu 1) Navigation to If you click 'Navigation to...' on the Main menu, there are various ways to set your destination and plan your route easily. They will give you great opportunity to choose just the perfect option for you.
  • Page 10 www.looket.com In this guide, we'll show you how to use the Navigation to function using the Address option. 1. Touch Address on the Main menu. 2. Select Country, City, Streen and Number step by step. Or find them using the keyboard on the screen. 3.
  • Page 11 2) Browse map If you tap 'Browse map' on the Main menu, it is available to browse the entire map and search for your destionation or POI. By simple dragging, you will be able to scroll through the map and explore new areas. Browse map cursor informs you about targeted POI or street Zoom In/Out...
  • Page 12 www.looket.com 4) Settings When you tap Settings from the Main menu, you can modify Sygic DRIVE and user's preferences. The Settings menu includes; Set to 2D (flat) view / Set 3D view Signpost settings Set night / daylight / automatic colors Rotate display Disable / Enable sounds Left handed...
  • Page 13 6) Route You have to first planned your route to get access to route options. If you haven't planned your route, the route button isn't available. Here you can find all the further information about your route, you can view the whole route in image slides or even watch the route preview by using the route demonstration option.
  • Page 14 www.looket.com Show route summary Show route demo Show on map 7) Itinerary It allows you to plan your business journey, comfortably from your home. User Guide Manual - 13...

  • Page 15: How To Set Your Home Location

    8) Manage POI (Point of Interest) Various POIs are showed on the map such as airports, banks, bus stations, hotels, parking garages, shopping centres. You can easily manage them and add your own POIs or there is also a function which warns you when you'll be crossing the nearby POI. 9) GPS status - check 'valid satellites' or 'your valid position'.

  • Page 16: How To Chech Or Re-Set Gps Hardware

    www.looket.com How to check or re-set GPS hardware 1. Tap Settings on Main menu and then click GPS hardware. 2. Check Turn GPS module button for activation GPS module. (The icon should be same with the following picture.) 3. Tap 'Autodetect' to search COM port and baud rate automatically and then wait to fix it.

  • Page 17: Menu Bar On Navigation Screen

    Menu Bar on Navigation Screen If a 'M' (menu) button on the right side of the device is pressed during running the navigation, the Menu bar is come up on the right side of the screen. There are the indicator of the battery status and 4 icons for BGM, Camera, Bluetooth and FM Transmitter on the menu bar in case of the Looket N530 &...
  • Page 18 www.looket.com 2) Camera Button When this button is selected, the video signal from the AV port is shown on the screen. If the vehicle has the rear camera, the image from the rear camera is displayed on the screen. The program is ended when touched the screen, and then the Navigation screen comes up.
  • Page 19 3) Bluetooth Hands-free Button If this button is clicked, the Bluetooth hands-free program is conducted. When the Bluetooth is available, the background color of the icon is blue. And if the background color is white, it means the Bluetooth is disabled to use. 4) FM Transmitter Button When tapped this icon, the screen is displayed to set the FM transmitter function.

  • Page 20: Warning

    www.looket.com Warning Place a device where it has a clear view of the sky. GPS signals can be obstructed by ceilings, trees, nearby tall buildings and the roof of the vehicle. Initial GPS fix may take up to 2 ~ 10 minutes depending on circumstances.

  • Page 21: Music / Multimedia Menu

    MUSIC / MUTIMEDIA Menu Music Player The only Looket N510 model has a Music Player. Music files are able to be stored from PC to SD card through SD card reader. All files which extension are mp3 in the SD card are listed on the screen of the Music Player.

  • Page 22: Multimedia Player

    www.looket.com Multimedia Player The Looket N530 & N570 have a Multimedia Player. Various video, audio, image files saved in SD card will be able to be displayed. Best resolution: 480 x 272 pixels Supporting codec: mpeg, mpg, asf, wmv, avi, mp3, jpg Screen - If the screen part is clicked, it is changed to the full screen.
  • Page 23 * Edit Window of File List This is the edit window to make the file list which can be played such as music, video, images. Showing the edited file list Delete the selected file on the file list Delete all files on the file list Select all file in the chosen folder of SD card Cancel the selection of the file in the chosen folder of SD card Display the file able to be playing in SD card...

  • Page 24: Bluetooth Hands-Free Menu

    www.looket.com BLUETOOTH HANDS-FREE Menu To use the Bluetooth hands-free function, please make the function enabled on the Bluetooth menu of the Setting menu, and also set the connection to the mobile phone with a built-in Bluetooth function. Status Indicator Contents Bluetooth Off Bluetooth is disable.

  • Page 25: How To Receive A Call

    How to Receive a Call If someone calls to the user's mobile phone connected with the Looket N5 via Bluetooth, the following window comes up and a bell rings. To answer the call, the Call button should be clicked. But, if the user is under the situation that he can not answer it, the End/Exit button is able to be selected, and then the window is closed after the call line is off.

  • Page 26: Av-In Menu

    The AV menu is to play the video / sound from an external AV input. If a device supporting AV output such as iPOD Video etc. is connected to the Looket N5 (excepting the Looket N510), the user can enjoy the video on the screen.

  • Page 27: Setting Menu

    SETTING Menu System 1) OS version Information of Looket N5 2) Intrinsic ID Information of SD card 3) Language Selection 4) Recalibration of Screen: The touch pad can be recreated. 5) Auto Power Option On/Off When the power supply is shut off using the power connector such as a cigar charger or an AC charger, this function is to convert the device to the sleep mode automatically.

  • Page 28: Bluetooth

    www.looket.com Bluetooth It is able to enable or disable to use the Bluetooth function and set the connection to the mobile phone with a built-in Bluetooth function through the hands-free profile. Bluetooth Function On (blue) / Off (grey) Name of Bluetooth Device Address of Bluetooth Device Connected Mobile Phone Name through Bluetooth Pairing Mode Button to be converted or returned...
  • Page 29 How to connect Bluetooth Hands-free 1. Click the Bluetooth button to make it enabled. 2. Indicate the name and address of the Bluetooth device. 3. Display 'Ready' in the widow of the status indicator. 4. Press the Pairing Mode button to wait for the connection. 5.

  • Page 30: Fm Transmitter

    www.looket.com FM Transmitter If the frequency of FM radio in the car is set to the predefined frequency on the FM Transmitter Setting menu, the user can enjoy the sound from Looket N5 via the speaker connected to the FM radio. At this time, all sound from the device is silent excepting only voice from the Bluetooth hands-free.

  • Page 31: Trouble Shooting

    Trouble Shooting Solution Trouble Please reset the device by pressing a Reset The device button on the left side of the device for 2 seconds is frozen or and over. locked up. If this doesn't help, please do a hardware reset by the Power On/Off switch.

  • Page 32: Warranty

    If you ship the product to SysOnChip or one of authorized distributors, you must use the original container or equivalent and the shipping charges is your responsibility.
  • Page 33 Power supplies and cables Any damages from using power supplies or cables which are not provided or officially approved by the manufacturer cannot be included in the warranty and are not responsible for SysOnChip. Basic Unit Package • Looket N5 • USB Cable •...
  • Page 34 SysOnChip, Inc. is prohibited. Other product and company names mentioned herein may be trademarks or trade names of their...
  • Page 35 Do Not. Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment.
