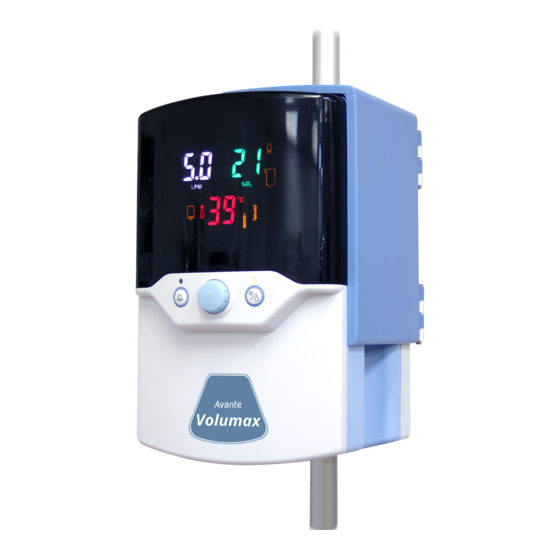

Avante Volumax VOS
Quick Reference Guide

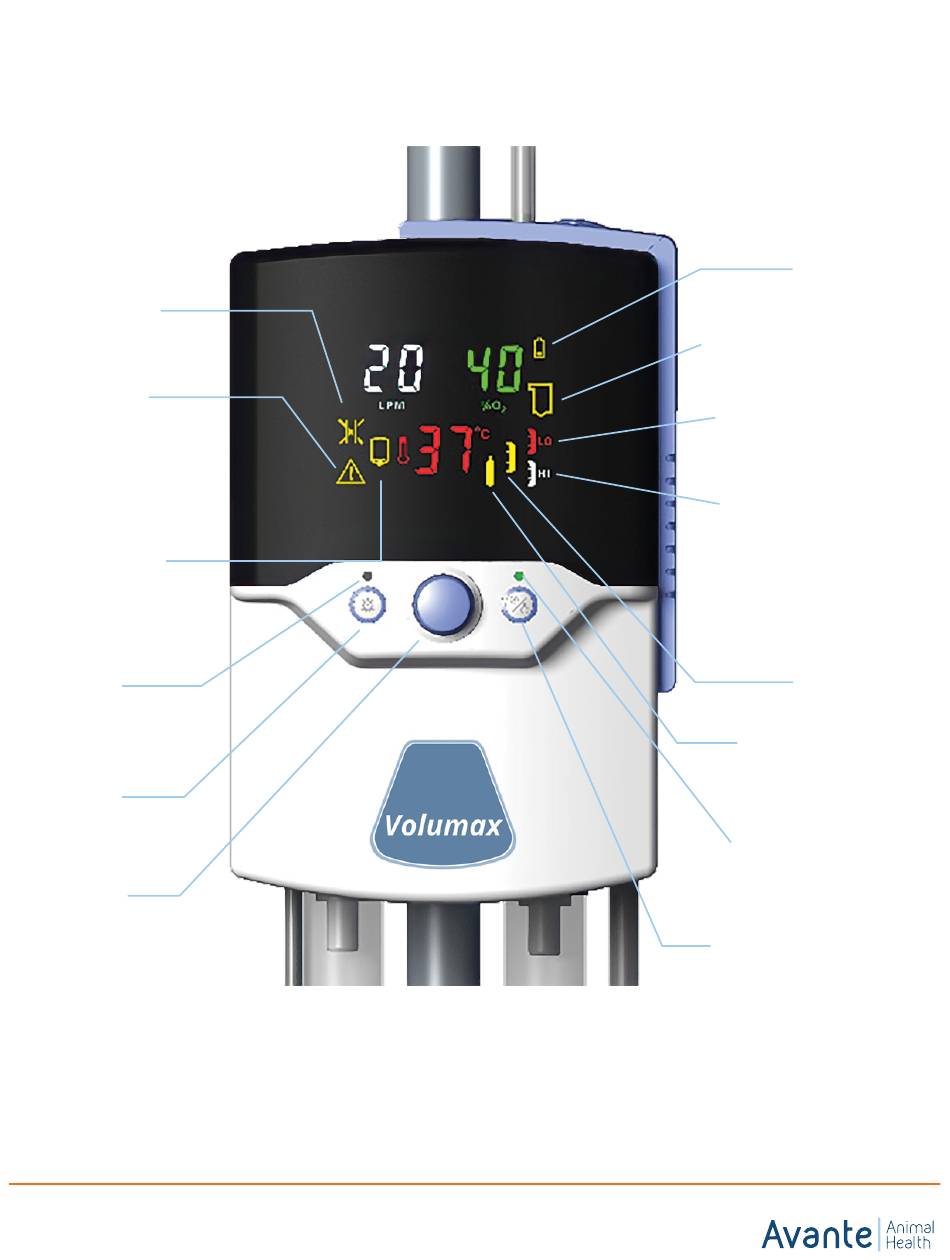

Blocked tube
General fault
Water out
Alarm mute
LED
Alarm mute
button
Setting Control
Knob
This guide provides you with basic instructions on how to set up and operate the
Volumax VOS. Before operating the Avante Volumax VOS please review the
Operators Instruction Manual.
1578-2022-06-17
2601 Stanley Gault Pkwy, Suite 101
800-923-8413
502-244-6345
•
Louisville, KY 40223 USA
•
FAX: 502-244-0369
•
Battery low or
charging
indicative of charge
level)
www.avantevet.com
(not
Disposable
Water Path
faulty or absent
Low Flow Vapor
Transfer Cartridge
High Flow Vapor
Transfer Cartridge
Vapor Transfer
Cartridge fault
(Low flow & High flow)
Gas supply fault
Run/Stop
Status LED
Run/Standby
button
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Avante Volumax
Summary of Contents for Avante Volumax
- Page 1 Knob Run/Standby button This guide provides you with basic instructions on how to set up and operate the Volumax VOS. Before operating the Avante Volumax VOS please review the Operators Instruction Manual. 1578-2022-06-17 2601 Stanley Gault Pkwy, Suite 101 Louisville, KY 40223 USA •...
- Page 2 Press the Run/Standby button. Unit will enter Disposable Patient Circuit. Standby mode. Volumax VOS is ready for start up. Clamp the water inlet tube and disconnect it by pulling out the spike. Open the door, remove the Disposable Patient Circuit START UP AND ADJUSTING PARAMETERS (includes delivery tube &...
- Page 3 CANNULA FLOW RATES CARTRIDGE CANNULA TYPE OPERATIONAL FLOW RATES High Flow (P04108) VAPCA, VAPCPAS, VAPCPS* 5-40 liters per minute (lpm) VAPCPM, VAPCN, VAPCI, VAPCII, VAPCISP, Low Flow (P04108LF) 1-8 liters per minute (lpm) VAPCPS* *VAPCPS is intended to deliver flow rates of 1-20 lpm ALARM ICON INDICATES CAUSE...
- Page 4 ALARM ICON INDICATES CAUSE ACTION Cartridge and/or RUN mode: faulty Disconnect patient. Remove disposable DPC not detected. sensor or cartridge patient circuit. Check cartridge installation. Unit will not run. not detected. Check sensor windows are clean Gas bubbles in water Excessive gas Disconnect patient.
