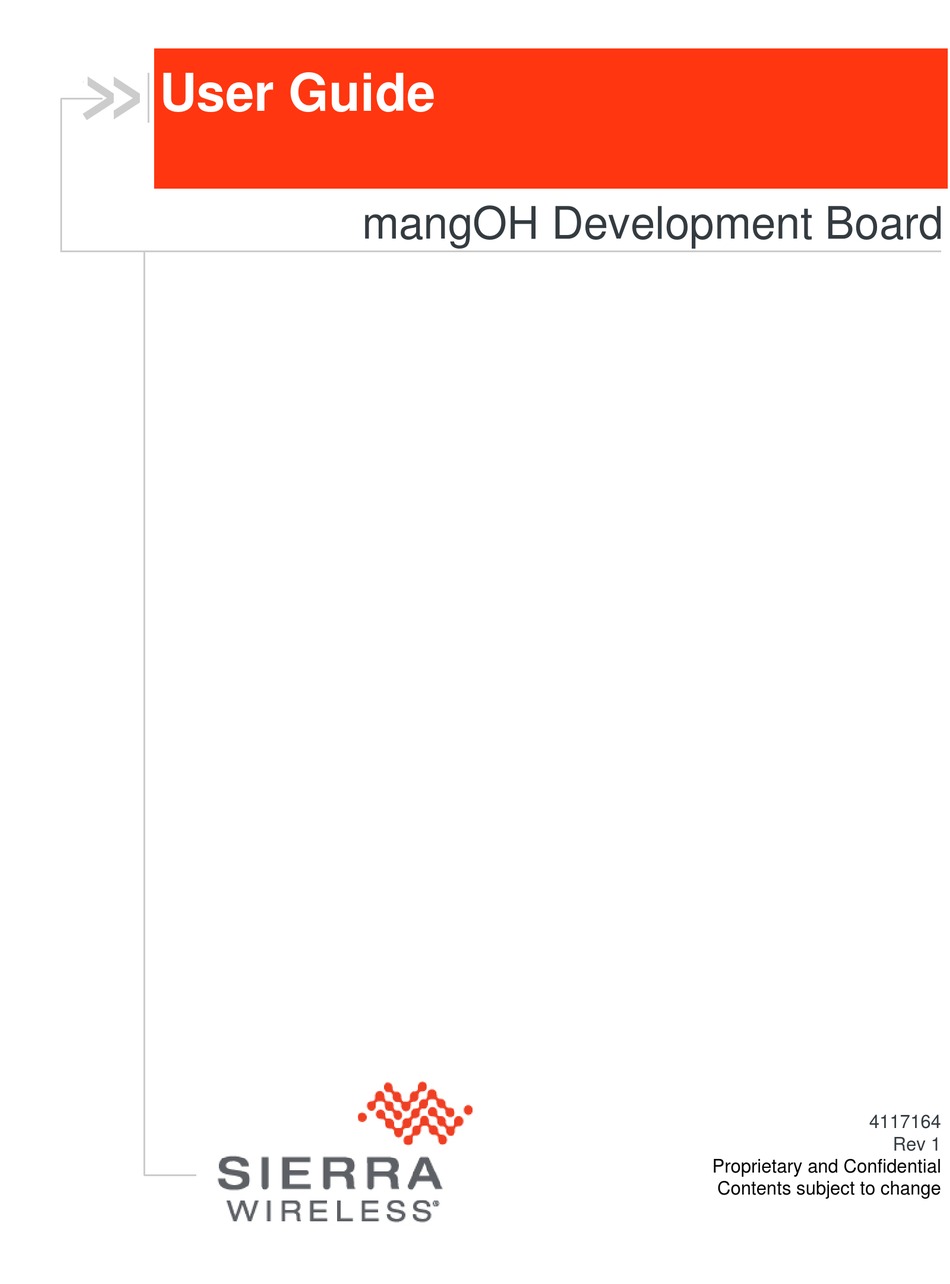

User Guide mangOH Development Board 4117164 Rev 1 Proprietary and Confidential Contents subject to change...
Page 3
Notice totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well-constructed network, the Sierra Wireless modem should not be used in...
Page 4
® ® Sierra Wireless , AirPrime , AirVantage , Skylight™, and the Sierra Wireless and Open AT logos are registered trademarks of Sierra Wireless, Inc. or one of its subsidiaries. ® Windows is a registered trademark of Microsoft Corporation. ®...
1: Introduction This user guide explains how to set up and begin using Sierra Wireless’ mangOH Development Board with the following CF3 form factor modules: • WP85 Series (Primary) • WP75 Series (Primary) • HL 75 Series (Primary / Secondary) •...
Page 8
USB cable USB to Mini-USB cable to connect directly to the Arduino Leonardo board that is incorporated into the mangOH Development Board SIM / USIM card You need to supply a SIM with an active account, or a test SIM for use with a call box.
Avoid touching the CF3 module sockets (J200, J600). The pins in these sockets bend easily. • Mount the mangOH Development Board in a case, or attach standoffs (not included) to the mounting holes at each corner of the board to avoid damage to components on the bottom side of the board.
Page 10
Antenna(s). See page 18. Configure Board. See page 24. Install / Update Drivers. See page 29. 6. Connect the mangOH Development Board to your computer using the USB cable provided. If you selected USB power in Step 2, the power LED lights up.
Development Board, and how to configure and control features using connectors and switches. Insert/Remove Embedded Modules The mangOH Development Board has two CF3 form factor module sockets for use with Smart and Essential modules. • Primary (J200)—The primary module can be a ‘smart’ (WP series) or ‘essential’...
Page 12
AirPrime MC Series Dev Kit Quick Start Guide 2. Hold the module above the socket and line up the polarity marks on the module and socket. (Primary module installation shown.) J200 Figure 3-2: CF3 Module Positioning 3. Place the module onto the socket. The module should drop into place when you have it aligned properly.
Page 13
4. Attach the module cover: a. Hold the module cover at an angle and insert one tab into the corre- sponding slot on the board (near the center of the board). Figure 3-4: Installing Module Cover b. Carefully squeeze the other tab and insert it into the corresponding slot. Figure 3-5: Installing Module Cover Rev 2 Jun.15 Proprietary and Confidential - Contents subject to change...
RTC backup—Backup capacitor for maintaining the RTC Select Power Supply The mangOH Development Board‘s primary power supply can be a USB connection or a DC wall adapter. Note: A DC wall adapter must be used if you want to establish and maintain a full-speed mobile network data connection.
Page 15
To select the power supply: 1. Place the mangOH Development Board face-up and locate the power supply jumper pins (CN1204). Power supply select (CN1204) DC jack connector Figure 3-7: mangOH—Power Supply Select (CN1204) 2. Place a jumper across two pins to select the power source: ·...
DO NOT place a jumper on CN1203 as this will cause damage to the battery and possibly the board. RTC Capacitor The mangOH Development Board has a capacitor that maintains the RTC. If required, the capacitor can be discharged by pressing the discharge switch (SW360).
Insert SIM Card(s) The mangOH Development Board supports dual SIM functionality (if supported by the CF3 module) through a standard mini-SIM slot (hot-swappable) and a micro-SIM slot (not hot-swappable). To use a UMTS/LTE module to establish a mobile network connection, you must install one (or two) SIM cards: •...
AirPrime MC Series Dev Kit Quick Start Guide Connect Antenna(s) The mangOH Development Board includes three antenna ports—Main, Diversity, and GNSS. Depending on the board version, the antenna connectors may be U.FL or SMA connectors. Note: The Diversity port is used only when the primary module (in J200) supports diversity.
1. Check the IoT module to make sure you know which side is the top. (Modules must not be inserted upside-down.) 2. Insert the module parallel to the mangOH Development Board. (Do not try to insert at an angle as this may damage the module or connector.) ·...
Arduino The mangOH Development Board incorporates an Arduino Leonardo board. The Arduino can be controlled via the primary smart module in J200, or directly via a micro-B USB cable connection from your computer.
LCD correctly.) 2. Hold the LCD by its edges and press straight down into the headers. Audio Connection The mangOH Development Board includes a 3.5 mm audio output jack for use with audio-enabled CF3 modules. 3.5 mm audio jack Figure 3-17: mangOH—Audio Output Jack...
Amber (Right side) Connection speed On—100 Mbps • Off—10 Mbps USB Host Connection The mangOH Development Board includes a USB Host port (USB 2.0) for attaching a peripheral device, memory stick, etc. USB Host port Figure 3-19: mangOH—USB Host Port...
LED Indicators The mangOH Development Board includes the following LED indicators: • Power—Lights when power is supplied to the board via any power source (USB, DC, battery) • LED 1— tbd • LED 2— tbd • LED 3— tbd •...
Arduino reset (SW1500) Board reset (SW400) Figure 3-22: mangOH—Reset Switches Configure Board The mangOH Development Board includes several switches and jumpers used to configure the board and module‘s operation, as detailed in Table 3-2 on page 24 through Table 3-9 on page 26.
Page 25
Table 3-4: SW401—Module Signals Control Function On / Off State POWER_ON Enable POWER_ON signal for primary module (J200) Disable POWER_ON signal Reserved W_DISABLE_N Disable RF power Enable RF power Reserved SW_PWR_ON Enable POWER_ON signal for secondary module (J600) Disable POWER_ON signal S_TP1_BOOT Enable TP1_BOOT functionality for secondary module.
Page 26
AirPrime MC Series Dev Kit Quick Start Guide Table 3-7: SW1503—Arduino Digital Header (CN1501) Configuration Function Position State CN1501 pin CN1503 pins 3,4,5,6 assigned to SS, MOSI, MISO, assignment CN1503 pins 3,4,5,6 assigned to Io10, Io11, Io12, Io13 Table 3-8: SW900—SDIO Power control Function Position State...
Page 27
(CN1501) Console output Backup Status LEDs Capacitor Module reset Audio Ethernet USB Host (CN700) capacitor discharge (SW400) (CN500) (CN1100) (CN327) (C346) (SW360) Figure 3-23: mangOH Assembly—Top Side Switches/Connectors Rev 2 Jun.15 Proprietary and Confidential - Contents subject to change...
Page 28
AirPrime MC Series Dev Kit Quick Start Guide USB power mini-SIM micro-SIM (CN311) (CN801) micro-SD (CN802) SDIO power control (SW900) UART selection (SW600) Arduino Micro-B USB (CN330) Figure 3-24: mangOH Assembly - Bottom Side Switches/Connectors Proprietary and Confidential - Contents subject to change 2130705...
• Ports [COM & LPT] > Sierra Wireless DM Port • Ports [COM & LPT] > Sierra Wireless NMEA Port (This is the port that you will use to communicate with the module from your terminal emulator.) Rev 2 Jun.15...
AirPrime MC Series Dev Kit Quick Start Guide Install Terminal Emulator To communicate with the mangOH Development Board, you must use a terminal ® emulator program such as Tera Term or HyperTerminal to connect to the board using the Sierra Wireless NMEA Port.
