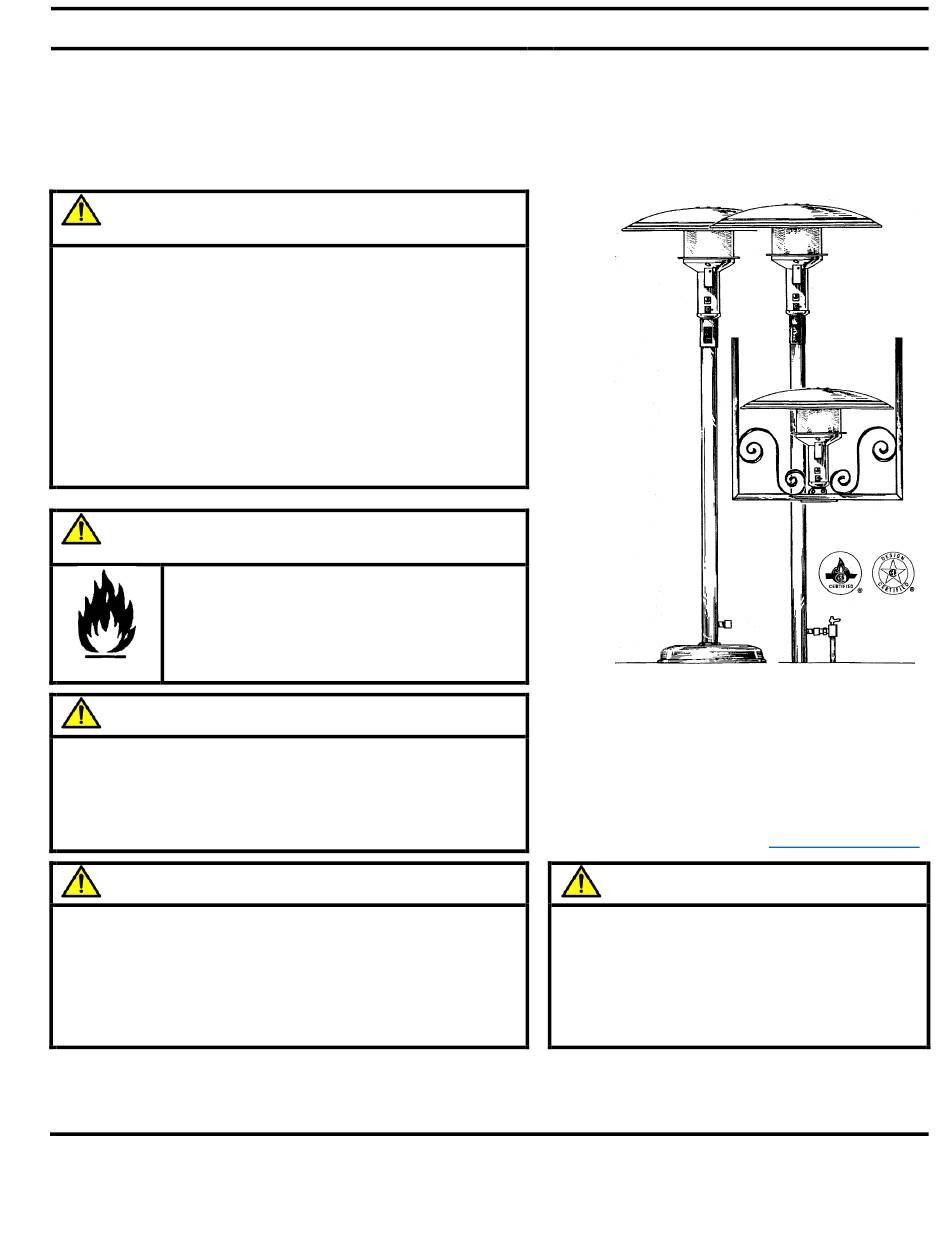

INSTALLATION, OPERATION & MAINTENANCE MANUAL
Sunglo
Patio Heaters
TM
DANGER
FOR YOUR SAFETY – If you smell gas;
1. Open windows.
2. DO NOT try to light any appliance.
3. DO NOT use electrical switches
4. DO NOT use any telephone in your building
5. Leave the building immediately
6. Immediately call your local gas supplier after leaving the
building. Follow the gas supplier instructions.
7. If you cannot reach your gas supplier, call the Fire
Department.
WARNING: FIRE HAZARD
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance. Failure to follow
these instructions can result in death, injury or
property damage.
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death.
Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this heater.
WARNING: California Prop 65
If not installed, operated and maintained in accordance with the
manufacturer's instruction, this product can expose you to
substances in the fuel or from combustion including carbon
monoxide which can cause death or serious illness and which are
known to the State of California to cause cancer, birth defects or
other reproductive harm. For more information go to
www.P65WARNINGS.CA.GOV
TO THE INSTALLER: Please read and understand all instructions prior to installation. Give a copy of this manual to
the owner after installation.
TO THE OWNER: Keep this manual in a safe place to retain for future reference
P/N: 65132-11/20
NOT FOR USE IN RESIDENTIAL DWELLINGS
Installation and replacement of gas piping, gas
utilization equipment, or accessories, and repair
and servicing of equipment shall be performed
by a qualified agency familiar with all
precautions required regarding type of
equipment and that has complied with all
requirements of the authority having jurisdiction
Copyright © 20209 By Infrared Dynamics, Inc.
MODEL PSA265 (V,E)
MODEL A244 (V,E)
For either indoor or outdoor installation.
`
Infrared Dynamics, Inc.
Yorba Linda, CA 92886 U.S.A
Toll Free (888) 317-5255
www.infradyne.com
WARNING: FIRE AND EXPLOSION
MODEL A242
.
Manufactured by
Printed in USA

Advertisement

Table of Contents
loading

Summary of Contents for Infrared Dynamics Sunglo PSA265

  • Page 1 TO THE INSTALLER: Please read and understand all instructions prior to installation. Give a copy of this manual to the owner after installation. TO THE OWNER: Keep this manual in a safe place to retain for future reference P/N: 65132-11/20 Copyright © 20209 By Infrared Dynamics, Inc. Printed in USA...
  • Page 2: Table Of Contents

    Sunglo™ Infrared Heaters TABLE OF CONTENTS Section 1. For Your Safety....................3 Warning Symbols ......................3 Applications ........................3 Hazards ..........................3 Section 2. Owner’s Manual....................5 Before Starting Your heater ....................5 Starting and Shutting Down your Heater ................5 Performing Routine Maintenance ..................5 Warning Labels .........................5 Stainless Steel Care ......................5 Before You Remodel ......................5...
  • Page 3: Section 1. For Your Safety

    Sunglo™ Infrared Heaters FOR YOUR SAFETY Application This is not an explosion proof heater. Consult your local Fire Marshall, insurance carrier and other authorities for approval of the proposed installation Sunglo heaters are designed certified for commercial indoor/outdoor and residential outdoor applications. They are NOT approved for use in any inside residential dwelling.
  • Page 4: Hazards

    Sunglo™ Infrared Heaters WARNING Improper connection to gas lines may result in death or serious injury, explosion, poison fumes, toxic gases or asphyxiation. Connect gas line in accordance to national, state and local codes Placement of explosive objects, flammable objects, liquid and vapors close to the heater may result in explosion, fire, property damage, serious injury or death.
  • Page 5: Section 2. Owner's Manual

    Sunglo™ Infrared Heaters OWNER’S MANUAL Before Starting Your Heater agency to ensure that clearances from Before you start your heater examine the heater combustible materials and ventilation installation to determine that; requirements are maintained after alterations • Areas immediately around the heater including are complete.
  • Page 6: Basic Lighting Instructions

    Sunglo™ Infrared Heaters BASIC LIGHTING INSTRUCTIONS...
  • Page 7: Section 3 Heater Layout And Design

    Sunglo™ Infrared Heaters HEATER LAYOUT AND PATIO DESIGN There are a number of WHERE TO LOCATE PATIO considerations in determining the HEATERS: type and number of heaters to be Sunglo™ Heaters naturally attract used and their best location on people to their infrared warm glow. your outdoor patio.
  • Page 8: Section 4. Installation

    Sunglo™ Infrared Heaters INSTALLATION AND SERVICE INSTRUCTIONS Receiving Equipment Gas Supply On receipt of equipment it is suggested that a visual inspection be The gas inlet supply pressure and manifold pressure made for external damage to the carton. If the carton is damaged, required for each heater are listed below.
  • Page 9: Electrical

    Sunglo™ Infrared Heaters Electrical (V,E) Models Only These heaters require 24 VAC to operate. The installer must provide a NEC Class 2 transformer. Each heater requires 20VA or 0.8 amperes (AMP). When multiple heaters are connected to one transformer, that transformer must be sized to accommodate the entire electrical load.
  • Page 10: Section 5. Heater Models

    Sunglo™ Infrared Heaters HEATER MODELS...
  • Page 11 Sunglo™ Infrared Heaters...
  • Page 12 Sunglo™ Infrared Heaters...
  • Page 13: A242

    Sunglo™ Infrared Heaters...
  • Page 14 Sunglo™ Infrared Heaters...
  • Page 15: A244 And A244V

    Sunglo™ Infrared Heaters...
  • Page 16 Sunglo™ Infrared Heaters...
  • Page 17: Psa265E And A244E ('E' Series)

    Sunglo™ Infrared Heaters...
  • Page 18 Sunglo™ Infrared Heaters...
  • Page 19: Section 6. Maintenance And Trouble Shooting

    Sunglo™ Infrared Heaters...
  • Page 20: Dsi Ignition System

    Sunglo™ Infrared Heaters...
  • Page 21: Basic Heater Disassembly

    Sunglo™ Infrared Heaters...
  • Page 22: Service Check List

    Sunglo™ Infrared Heaters Heater Maintenance Heater maintenance or repair should be only performed by qualified service personnel such as a licensed heating, ventilation, and air conditioning contractor familiar with this type of heater. Safety Inspection Checklist For optimum performance and safety, it is recommended that all installation, service and annual inspection be done by a qualified agency.
  • Page 23: Troubleshooting

    Sunglo™ Infrared Heaters TROUBLESHOOTING MANUAL CONTROL Problem Possible Causes Pilot will not light Air in gas line • Low gas pressure • • Gas line turned “Off” • Blockage of gas line Pilot does not stay lit Damaged thermocouple • •...
  • Page 24 Any claim under this warranty should be initiated with the dealer who sold the heater, or with any dealer handling the warrantor’s products. If this is not practical, the owner of the heater should contact: Infrared Dynamics, 3830 Prospect Ave. Yorba Linda, California 92886. Toll Free: 1-888-317-5255. Hours of operation 7-3 PST MF). Website:...
