Fluid temperature
Ambient temperature
Electrical data
Voltage
Frequency
Power consumed
Rated current
Alarm relay contact
Protection class
Motor protection
Power supply cable
Other characteristics
Permissible fluid
Sound level
Dimensions (LxWxH)
Connection on the discharge side
Connection on the suction side
Net mass (+/- 10 %)
4.3

Type key

Example:
Wilo
Isar
BOOST
5
E
3 or 5
4.4

Dimensions

4.5

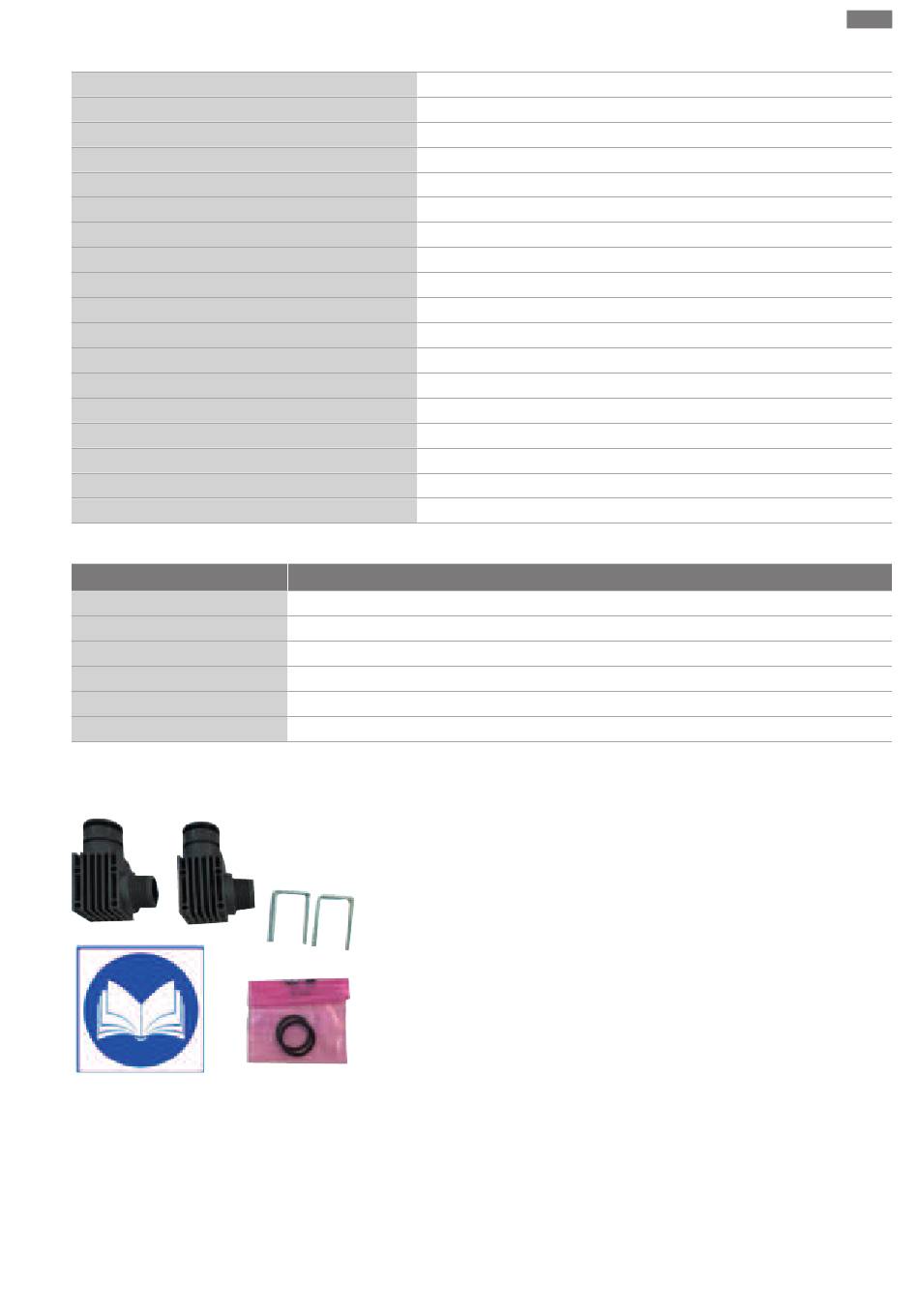

Scope of delivery

Installation and operating instructions Wilo-Isar BOOST5
Description of the product
0 °C to +40 °C
0 °C to +40 °C
1 ~ 230 V AC
50 Hz
See plate
See plate
Max 0.3 A at 230 V AC/Max 1 A at 30 V DC
IPX4
Protection fuse max 12.5 A
1.5 m
Clean water
58 dB(A) in sound pressure at 1 m in normal operation
390x274x344 mm
G1"
G1"
15 kg
Wilo-Isar BOOST5-E-3
Brand
Pressure-boosting system
Domestic use
Built-in pump control
Controlled electronically
3
Rated volume flow in m
/h
See Fig. 2
Wilo-Isar BOOST5:
ƒ
System,
ƒ
2 hydraulic connections G1",
ƒ
2 forks,
ƒ
2 O-rings,
ƒ
Installation and operating instructions.
en
25
