Hitachi PDV343E Quick Start Manual

Quick Start Guide
PDV343E
7" Portable DVD Player
Thank you
for purchasing your new Hitachi Portable
DVD Player.
Please follow this quick start guide for a successful rst
time set up.
We recommend that you spend some time reading this
instruction manual in order to fully understand all the
operational features it o ers.
Read all the safety instructions carefully before use and
keep this instruction manual for future reference.
GB
1 1
S S
Unpacking
tep tep
Remove all packaging from the unit. Retain the packaging. If you
dispose of it please do so according to any local regulations.
The following items are included:

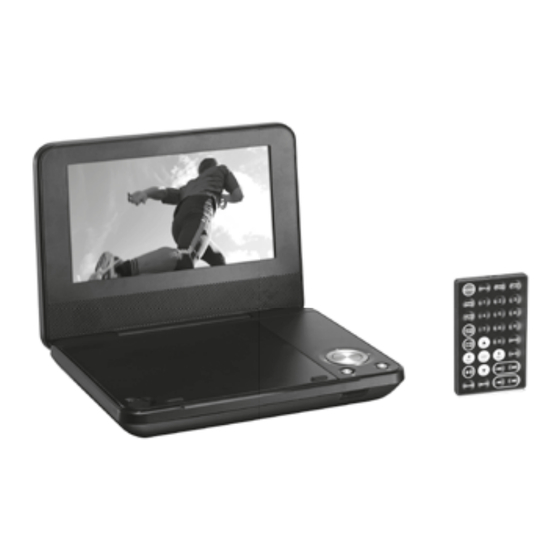

The Main Unit Remote Control
(with battery)
POWER DISPLAY REPEAT /PROG REPEAT A-B
ANGLE AUDIO/
TITLE SUBTITLE/
MENU/
ZOOM
STOP/
SLOW SETUP
VOL– ENTER VOL+ GOTO
SOURCE MUTE
OK
Mains Adapter
Instruction Manual Quick Start Guide
2 2
S S
Operating Your Remote Control
tep tep
Removing the Insulating Strip from the Remote Control
Remove the insulating mylar strip from the
battery if the battery is being used for the
rst time. It is located at the bottom rear of
the remote control.
Changing battery of the Remote Control
The remote control requires a CR2025,
3V Lithium battery (included).
1. Slide and hold the battery release
tab in the direction of the arrow.
2. Pull out the battery holder and
remove the old battery.
3. Replace with a new battery.
4. Insert the battery holder back into
the remote control.
3 3
S S
Power Supply
tep tep
Mains Power
• This unit operates with a DC 12V 1.0A mains adapter (included).
• Connecting the unit to any other power source may cause damage to the unit. Unwind the mains adapter to its full length. Connect the mains adapter's
DC plug to DC IN socket on the unit then connect the mains adapter to the mains socket, as shown below. Make sure the mains adapter is fully inserted
into the mains socket. The unit is now connected and ready to use.
• To switch the unit o completely, unplug the mains adapter from the mains socket.
Right Side of the DVD Player
Ensure all units of the DVD Player are connected before connecting
to the mains power socket.
• Turn o the unit before unplugging the mains adapter from the unit to avoid the unit being damaged.
• When the unit is not going to be used for a long period of time, disconnect the mains adapter from the
mains socket.
• The mains socket must be located near the unit and should be easily accessible. If a malfunction occurs,
disconnect the plug from the mains socket at once.
• When the mains adapter is plugged in, the unit is not completely disconnected from the mains power
source, even when the unit is turned o .
4 4
S S
Charging the Battery
tep tep
1. Connect the mains adapter to DC IN socket on the unit then
connect the mains adapter to the mains socket.
• The LED indicator lights up red indicating that the battery is in
charging mode. When the battery is charged to full capactity, the
LED indicator goes green.
2. Remove the mains adapter. The battery is now fully charged and
the unit is ready to use.
Right Side of the DVD Player
Power adaptor
DC IN 9-12V
To the Mains Socket
*Battery Operation time from fully charged battery = Approx. 2 hours.
T T
Well done, your new DVD Player is now ready to use.
ip: ip:
You will nd that there are many exciting features available. To get to know all these features, please take some time to
read the Instruction Manual provided with your Portable DVD Player.
Power adaptor
DC IN 9-12V
To the Mains
Socket
5 5
S S
Basic Operation
tep tep
1. Slide the ON/OFF switch to the
ON position.
2. Press the OPEN button to open
the disc cover.
3. Hold the disc by its sides and
carefully place onto the disc
holder with the label side facing
up. Gently push the disc down
until you hear a "click".
4. Close the disc cover. The unit
starts playback if there are no
menus. If the disc has one or
more titles recorded on it, a
menu screen will appear on the
screen.
5. To play a title, press the / 0-9 buttons on the remote
control to highlight the title and then press the OK button on the
unit or the button on the remote control.
QSG-PDV343E-121017V2
