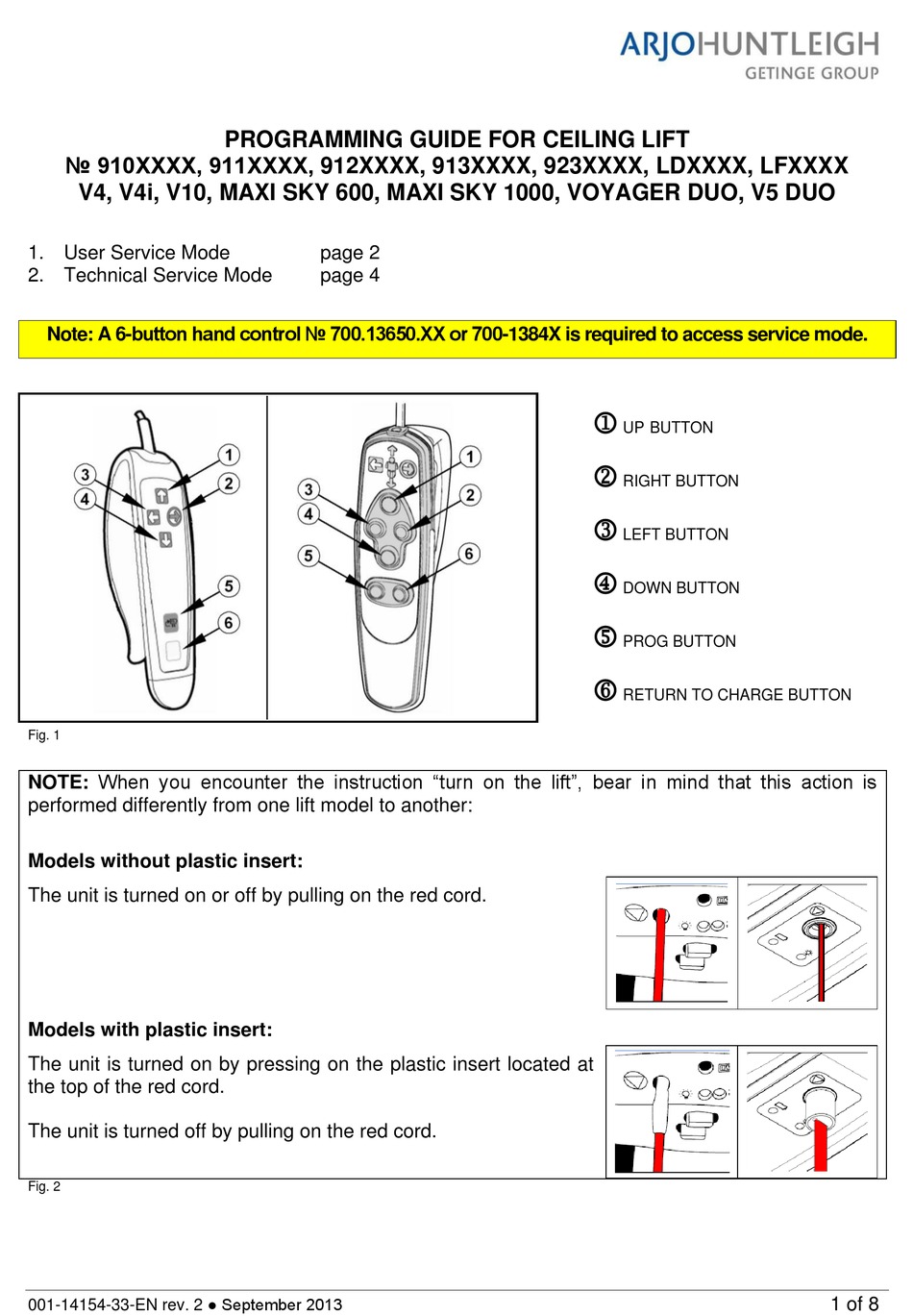

№ 910XXXX, 911XXXX, 912XXXX, 913XXXX, 923XXXX, LDXXXX, LFXXXX
V4, V4i, V10, MAXI SKY 600, MAXI SKY 1000, VOYAGER DUO, V5 DUO
1. User Service Mode
2. Technical Service Mode
Note: A 6-button hand control № 700.13650.XX or 700-1384X is required to access service mode.
Fig. 1
NOTE: When you encounter the instruction "turn on the lift", bear in mind that this action is
performed differently from one lift model to another:
Models without plastic insert:
The unit is turned on or off by pulling on the red cord.
Models with plastic insert:
The unit is turned on by pressing on the plastic insert located at
the top of the red cord.
The unit is turned off by pulling on the red cord.
Fig. 2
001-14154-33-EN rev. 2 ● September 2013
PROGRAMMING GUIDE FOR CEILING LIFT
page 2
page 4
UP BUTTON
RIGHT BUTTON
LEFT BUTTON
DOWN BUTTON
PROG BUTTON
RETURN TO CHARGE BUTTON
1 of 8
Advertisement
Table of Contents
Related Manuals for Getinge Arjohuntleigh LD Series
Summary of Contents for Getinge Arjohuntleigh LD Series
- Page 1 PROGRAMMING GUIDE FOR CEILING LIFT № 910XXXX, 911XXXX, 912XXXX, 913XXXX, 923XXXX, LDXXXX, LFXXXX V4, V4i, V10, MAXI SKY 600, MAXI SKY 1000, VOYAGER DUO, V5 DUO 1. User Service Mode page 2 2. Technical Service Mode page 4 Note: A 6-button hand control № 700.13650.XX or 700-1384X is required to access service mode. ...
- Page 2 1. User Service Mode This Mode allows the user to adjust certain lift parameters with the hand control. A) Turn off the lift by pulling the red cord (the green indicator light will turn off). B) Press and keep down the PROG button on the hand control down (see Fig. 1). C) While still pressing the PROG button, turn on the lift (see Fig.
- Page 3 1.2 Adjust the height of the spreader bar when it returns to charger or when it returns to home position (ECS). At the activation of the Return to Charge/Return to Home, the spreader bar will rise all the way up to avoid any obstacles during the run. When the lift is at the charge/home station, the spreader bar lowers by itself to the adjusted height to be easily accessible.
- Page 4 2. Technical Service Mode The Technical Service Mode allows the technician to adjust, activate, read or modify certain lift parameters with the hand control A) Turn off the lift by pulling the red cord (the green indicator light must turn off). B) Press and keep down the PROG and RETURN TO CHARGE/HOME buttons on the hand control.
- Page 5 2.3 Activate the Pre-Programmed Positions Function (FIDO) Activating the Pre-Programmed Position function allows the unit to detect stations (positions) spread along the unit’s course. The unit will be capable of going to the station designated with the hand control. The user indicates to the unit the position of the desired station (e.g., the third station equals to three pushes on the PROG button) followed by the direction (LEFT or RIGHT buttons).
- Page 6 2.5 Adjust the Charger Detection Time Limit NOTE: Not available for Maxi Sky 600 ECS models Adjusting the charger detection time limit will restrict the time the unit is allowed to detect the charge station when the Return to Charge button is pressed, stopping the motor after the selected time delay.
- Page 7 2.6.2 For units equipped with a plastic insert switch (Excluding Maxi Sky 1000 and V10) A) Enter the Service Technical Mode and select the sixth choice (consult section 2). B) The number of beeps will equal to the cumulative lifts since the last reset of the service counter. Each long beep equals to 1000 cycles and each short beep equals to 250 cycles (see chart below).
- Page 8 2.8 2 or 4-Function Programming This function allows for the configuration of the circuit board from 4-function to 2-function (without powered lateral movement). This function deactivates all functions related to the unit’s powered lateral movement (LEFT, RIGHT, FIDO, RETURN TO CHARGE) A) Enter the Technical Service Mode and select the seventh choice (consult section 2).
