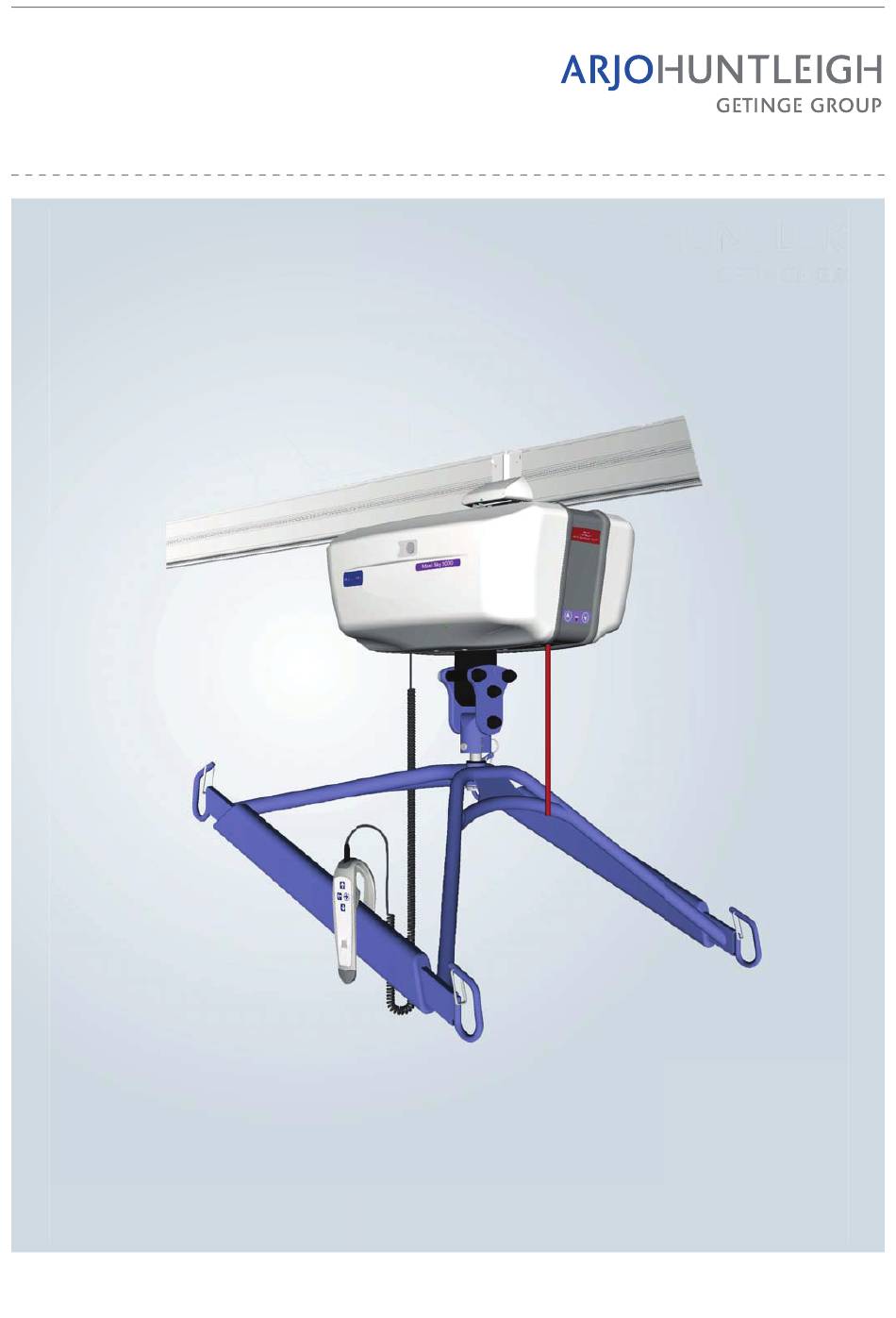

- Page 1 Maxi Sky 1000 Instructions for Use ...with people in mind 001.14160.33.EN rev. 19 • 10/2018...
- Page 2 Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies. © ArjoHuntleigh 2018. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice. The content of this publication may not be copied either whole or in part without the consent of ArjoHuntleigh.
-
Page 3: Table Of Contents
Table of Contents Table of Contents General Information ........................5 Foreword..........................5 Service and Support ......................5 Manufacturer Information ....................5 Definitions Used in this Manual: ..................6 Intended Use ........................6 Operational Life ........................ 6 Product Identification ......................6 How to Use this Manual .................... - Page 4 Table of Contents Attaching Bariatric Loop Slings to the 4-Point Spreader Bar .......... 22 To Lift a Patient from a Bed .................... 22 To lift a Patient from a chair .................... 23 To Lift a Patient from the Floor ..................24 Using the FIDO Function (Pre-Programmed Positions) ............
-
Page 5: General Information
General Information General Information Foreword Thank you for buying the Maxi Sky 1000 ceiling lift from ArjoHuntleigh. Please read this manual in its entirety before using your lift. The information in this manual is crucial to the proper Your Maxi Sky 1000 is part of operation and maintenance of the Maxi Sky 1000. -
Page 6: Definitions Used In This Manual
General Information Definitions Used in this Manual: The red indicator light on the ceiling lift will blink when it is about halfway through its useful life, and again to indicate the end of the useful life WARNING: period. Means: Failure to understand and follow these Aging of the ceiling lift, frequency of use instructions may result in injury to yourself (transfers per day), the weight of the patient and... -
Page 7: Symbols Used
General Information Symbols Used General Key to symbols Symbols General Key to symbols Symbols This symbol indicates This symbol is accompanied by a risk of pinching. a date to indicate the date of manufacture and by the address of the manufacturer. This symbol locates the emergency stop system This symbol indicates... -
Page 8: Safety Instructions
Safety Instructions Safety Instructions General Instructions • Special consideration is taken with a patient who is connected to electrodes, catheters or other medical devices. WARNING: Maxi Sky 1000 • Violent impact during transfers is avoided. transferring patients only. Do not use the lift for any other purpose. -
Page 9: Fire And Explosion Prevention
Safety Instructions • Check nameplate for input voltage and WARNING: Failure to properly dispose of frequency requirements. These requirements this equipment and its parts according to differ by country. Do not attempt to use the lift local regulations constitute in an area that has a different voltage and frequency requirement. -
Page 10: Maxi Sky 1000 Ceiling Lift And Charger Station
Product Description Product Description Maxi Sky 1000 Ceiling Lift and Charger Station 9 10 Fig. 3 Legend 1) Ceiling lift 10) Red maintenance/overheat light 2) Track 11) Alternate Down button 3) Charging station 12) Red emergency pull cord 4) Emergency lowering mechanism access 13)Allen key for emergency lowering mechanism 5) Strap 14) Spreader bar... -
Page 11: Hand Control
Product Description Hand control Overheat Protection Device The Maxi Sky 1000’s hand control is used to operate The Maxi Sky 1000 units are equipped with a safety the ceiling lift. Each function is described in Fig. 4. The system to prevent a misuse of the lift. If the lift is used up and down buttons raise or lower the spreader bar. -
Page 12: Accessories
Accessories Accessories Class III Scale (Europe Only) Morgue Stretcher Scale 2-Point Spreader Bar Fig. 6... -
Page 13: How To Use The Maxi Sky 1000
How to Use the Maxi Sky 1000 How to Use the Maxi Sky 1000 Controls and Features 2) Remove the black cap located on each side of the lift. 3) Find the 8 mm Allen key that came with the Emergency Lowering ceiling lift. -
Page 14: Emergency Stop (Red Cord)
How to Use the Maxi Sky 1000 Emergency Stop (red cord) WARNING: Constant surveillance required when using the RTC function to The emergency stop can be activated at any time prevent the spreader bar from hitting to stop the functioning of the lift. someone/something along the path. -
Page 15: Spreader Bar Attachment
How to Use the Maxi Sky 1000 Spreader Bar Attachment The spreader bar features an attachment which allows the caregiver to change it in a few steps without using any tools. Attaching the Spreader Bar to the Lift WARNING: Before every use, always ensure that the strap is properly attached and that the attachment is secured with the split ring. -
Page 16: Loop Sling Application
Loop Sling Application Loop Sling Application 2-Point Spreader Bar Compatible Sling WARNING: Slings shown in Fig. 11 are intended to be used only with the 2-point spreader bar. General Purpose - Hammock - THAi Hammock 6 - THA6i Quick Fit - TIR MLA3000 Mesh with Head Support - With Head support -... -
Page 17: Slings Selection
Loop Sling Application Slings Selection Positioning the Patient The specific sling loops chosen determine the The spreader bar that is attached to the position patient. Different loop Maxi Sky 1000 determines which sling can be combinations can be used to allow the patient to used to transfer a patient. -
Page 18: Before Approaching The Patient
Loop Sling Application Before Approaching the It is also a useful method for patients with contractures, making it difficult to bring a sling Patient strap between the legs. Make sure to have on hand a sling that is of the correct model and of adequate size for transfer with the Maxi Sky 1000 unit. -
Page 19: Lifting Patient From A Seated Position
Loop Sling Application 2) Ensure that the head support area of the sling WARNING: This unit must never be operated is behind the head covering it. by the patient but only by the caregiver. 3) Pull each leg strap under the thigh so that it Patient could get stuck in the event of a emerges on the inside of the thigh. -
Page 20: Lowering Patient To A Seated Position
Loop Sling Application Using Stretcher Frames and Lifting Patient from a Supine Position Stretchers When lifting patient from a bed, make sure the If any of the ArjoHuntleigh patient stretcher bed is in correct working height before you start. frames and stretchers are to be used with the Maxi Sky 1000 lift, always refer to the separate WARNING: Make sure that the bed safety relevant stretcher frame and stretcher operating... -
Page 21: Bariatric Sling Application
Bariatric Sling Application Bariatric Sling Application Compatible Slings For more information about sling use, please refer to the documentation included with your sling. 4-Point Spreader Bar Compatible Sling WARNING: Sling shown in Fig. 21 is intended to be used only with the 4-point spreader bar. Bariatric Sling - MAA8000 Fig. -
Page 22: Slings Selection
Bariatric Sling Application Slings Selection The spreader bar that is attached to the Maxi Sky 1000 determines which sling can be used to transfer a patient. Bariatric slings must be used with the 4-point spreader bar. All slings are color coded for size by having a different colored edge binding or attachment strap coloring: •... -
Page 23: To Lift A Patient From A Bed
Bariatric Sling Application To Lift a Patient from a Bed 5) The straps must be brought under the thighs. This may involve lifting one leg at a time, and The lifting technique described here can be used may mean lowering the spreader bar a little for reclining patients regardless of where they more. -
Page 24: To Lift A Patient From The Floor
Bariatric Sling Application To Lift a Patient from the Floor 2) Ensure that all four strap loops are securely connected, then raise the patient using the The patient can be lifted from a completely hand control. The head support area of the reclined position on the floor, but for his/her sling should now come into use. -
Page 25: Using The Fido Function (Pre-Programmed Positions)
Use of Accessory Use of Accessory Using the FIDO Function (Pre-Programmed Positions) NOTE: This function can only be activated by a qualified technician. 1) Using the pre-programmed positions allows the unit to detect stations (positions) located along the track path. The unit will go to the indicated position by using the hand control. -
Page 26: Maxi Sky 1000 Programming
Maxi Sky 1000 Programming Maxi Sky 1000 Programming Entering the Programming Mode Speed Adjustment Final Steps To select another feature Moving speed of 10 cm/s Moving speed of 13 cm/s Exit programming mode Moving speed of 15 cm/s (factory default) Moving speed of 20 cm/s... -
Page 27: Adjusting The Spreader Bar Height
Maxi Sky 1000 Programming Entering the Programming Mode Spreader Bar Height Final Steps Adjustment To select another feature Exit programming mode Fig. 30 Adjusting the Spreader Bar Height Turn the ceiling lift off by pulling on the red cord. The green LED will turn off. ... -
Page 28: Enable/Disable Return To Charge (Rtc)
Maxi Sky 1000 Programming Entering the Programming Mode Set Return to Charge Final Steps Option To select another feature Return to the last charging station travelled. Disable (factory default) Exit programming mode Enable left Enable right Fig. 31 Enable/Disable Return to Charge (RTC) ... -
Page 29: Care And Maintenance
Care and Maintenance Care and Maintenance Preventive Maintenance Schedule The product is subject to wear and tear, and the following maintenance instructions must be acted upon when specified to ensure that the product remains within its original manufacturing specifications. Care and maintenance must be carried out in accordance with the preventive maintenance schedule below. - Page 30 Care and Maintenance FREQUENCY Every Every Every Every Before four Inspections for year or Initially every months months years spreader bar and slings 2500 or 500 or 1000 or 5000 cycles cycles cycles cycles Inspect all sling parts (attachments, fabric, stitch areas and strap) for signs of wear, discoloration, deterioration or loose threads.
- Page 31 Care and Maintenance FREQUENCY Every Every Every Every Before four year or Inspections for tracks Initially every months months years 2500 or 500 or 1000 or 5000 cycles cycles cycles cycles Make sure track joints are closed and that the spring pins are centered.
-
Page 32: Cleaning The Lift
Care and Maintenance Cleaning the Lift Maxi Sky 1000’s Special Areas to Clean NOTE: It is recommended to clean the lift Hand control and its accessories between each patient back and handle use. Removing visible residues: 1) Use a cloth soaked with water. Hand control 2) Remove visible residues from the lift and its edge... -
Page 33: Strap Inspection
Care and Maintenance Battery Replacement Strap Inspection If the strap is damaged or shows signs of wear or Replace the batteries when there is a noticeable discoloration, the acceptable load on the strap reduction in the number of transfers that can be before rupture can drop rapidly and present a performed between charges. -
Page 34: Troubleshooting
Troubleshooting Troubleshooting PROBLEM TO CHECK • Make sure that the charger is correctly plugged into the AC outlet, and that the green light on the clip-on charging station is The light does not illuminate • Make sure that there is contact between the contact blades of the when there batteries... - Page 35 Troubleshooting PROBLEM TO CHECK • If the charging station light is on, move the ceiling lift away from the charging station in order to operate the lift. • If the emergency stop is activated, push the power on switch until the green light is on.
-
Page 36: Labels On The Lift
Labels on the Lift Labels on the Lift GETINGE GROUP Product name Company logotype Access to emergency Maximum load Maximum load 454 kg / 1000 lb 454 kg / 1000 lb Maximum load Maximum load ArjoHuntleigh AB - Verkstadsvägen 5 - 241 38 Eslöv - SWEDEN... -
Page 37: Technical Specifications
Technical Specifications Technical Specifications PRODUCT INFORMATION Maxi Sky 1000 Weight, complete 22 kg (48 lb) Lifting capacity 454 kg (1000 lb) Strap length 2300 mm (90.6 in) 6.0 cm/s (2.4 in/s) without load) Lifting speed 3.5 cm/s (1.4 in/s) at 230 kg (500 lb) 2.7 cm/s (1.2 in/s) at 454 kg (1000 lb) Maximum stroke (from ceiling) 2300 mm (90.6 in) -
Page 38: Lift Dimensions
Technical Specifications Lift Dimensions Fig. 35... -
Page 39: Electromagnetic Compatibility
Electromagnetic Compatibility Electromagnetic Compatibility Electromagnetic Compliance The Maxi Sky 1000 has been tested for compliance with current regulatory standards regarding its capacity to block EMI (electromagnetic interference) from external sources. Nonetheless, some procedures can help reduce electromagnetic interferences: • Ensure that other devices in patient-monitoring and/or life-support areas comply to accepted emissions standards. -
Page 40: Electromagnetic Immunity
Electromagnetic Compatibility Electromagnetic Immunity Guidance and Manufacturer’s Declaration - Electromagnetic Immunity For all Equipment and Systems The Maxi Sky 1000 is intended for use in electromagnetic environment specified below. The customer or the user of the Maxi Sky 1000 should assure that it is used in such an environment. Electromagnetic Immunity test IEC 60601 test level... - Page 41 Electromagnetic Compatibility (continued) Guidance and Manufacturer’s Declaration - Electromagnetic Immunity For all Equipment and Systems Electromagnetic Immunity test IEC 60601 test level Compliance level environment - guidance 3 V outside ISM bands 3 V outside ISM bands between 0.15-80 MHz between 0.15-80 MHz Conducted RF 6 V inside ISM and amateur...
- Page 42 Intentionally left blank...
- Page 43 AUSTRALIA FRANCE POLSKA Arjo Australia Pty Ltd Arjo SAS Arjo Polska Sp. z o.o. 78, Forsyth Street 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 O’Connor CS 70133 PL-62-052 KOMORNIKI (Pozna ) AU-6163 Western Australia FR-59436 RONCQ CEDEX Tel: +48 61 662 15 50 Tel: +61 89337 4111 Tél: +33 (0) 3 20 28 13 13...
- Page 44 ArjoHuntleigh AB Hans Michelsensgatan 10 211 20 Malmö, Sweden www.arjohuntleigh.com ArjoHuntleigh is a world-leading provider of integrated products and solutions that improve the lives of patients and residents with reduced mobility. We help healthcare facilities deliver wellness and effective everyday care, early mobilisation, safe patient handling, venous thromboembolism prevention, pressure injury prevention, 001.14160.33.EN hygiene routines, bariatric care and diagnostics.
