Lumi COMBO WEDDING CAKE II Installation

C OMBO WEDDING C AKE I I
Read carefully the cautions and every steps before assembly and using your step.

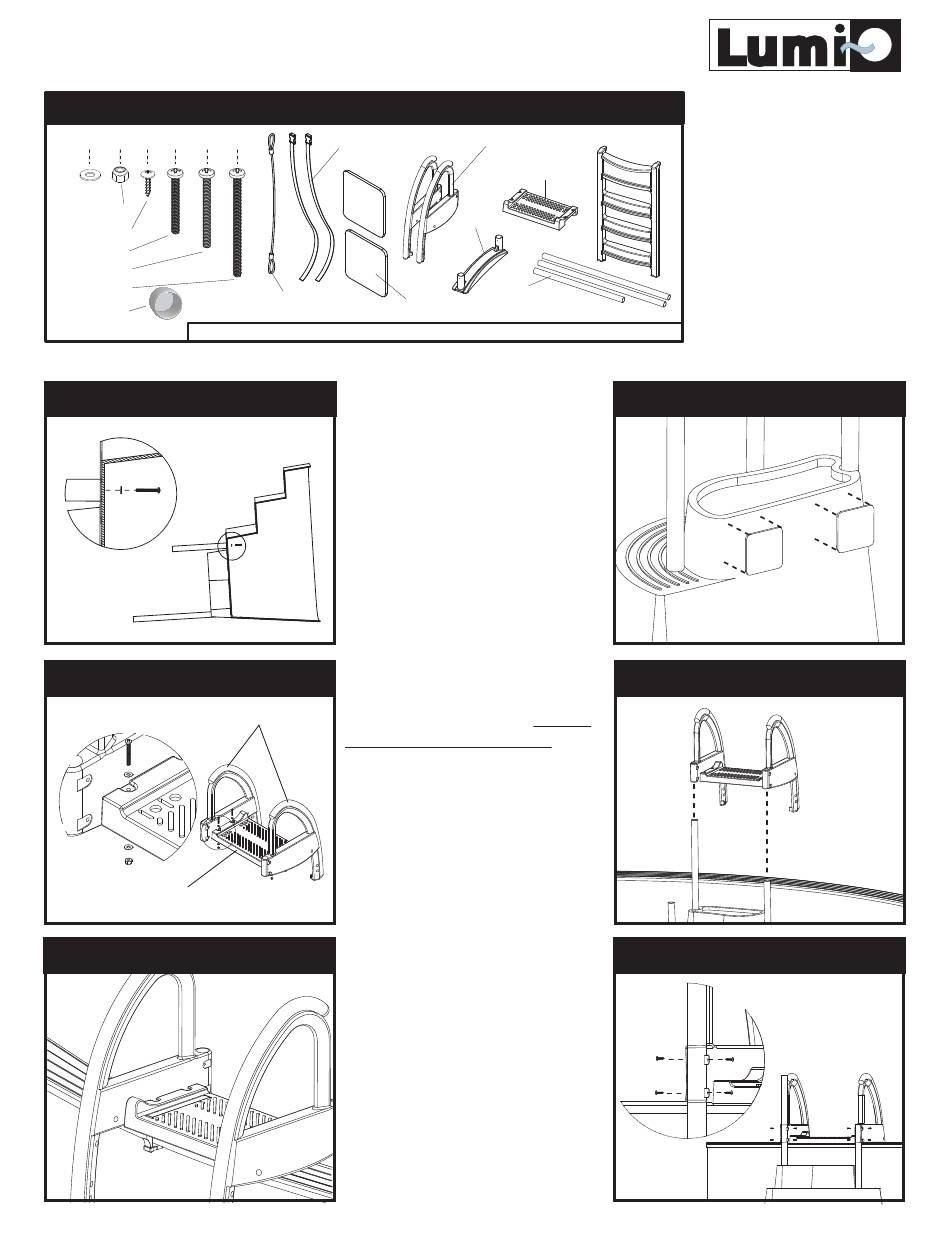

M a t e r ial included:
13x 6x 16x 4x 1x
Washer
Locknut
¾" sc r e w
2" B ol t
2½" B ol t
3½" B ol t
Cap
Helpful hint : To ease the installation of the rails and bolts, use a screwdriver to line up holes.
Caution : File off all stripped or sharp edges before assembly to avoid injuries and pool damage.
Step 1 p
fig.1
Step 3 p
Right and left ramp
Platform
Step 5 p
fig.5
Rev. 2007-11-26
S t r ap s
2x
S a f e t y c abl e
F oam pad s
1- Put the step on the side to
fix the short support rail on the step.
Screw from the inside using the
predilled hole with the 2 ½ bolt(1),
and washer(1). (fig.1)
2- Install the two foam pads
in the upper back of the step .
(fig.2)
3- Attach the platform to the
left and right ramps using the 2 "
bolts (4), washers (4) and
locknuts (4). (fig.3)
N.B move the step diagonally into
the water to allow the air to escape.
Place the step by the wall leaving
at least 1 Inch from the wall. Ensure
that the step touches the ground
solidly. Fill the ballast unit with sand**,
seal with the plastic cap and put the
ballast unit on top of the step as
illustrated on step 6 of the Wedding
Cake II instruction.
4- Slide the rails of the ladder
fig.3
onto the assembled portion of the
step. (fig.4)
5- Lower the assembled
portion of the ladder until it rests
on the toprail. Fix the platform to
the toprail of the pool introducing
the straps into the opening of the
platform and under the toprail.
(fig.5)
6- Stabilize the assembled
portion of the ladder to the steps
using the ¾" screws (8). (fig.6)
Put the cap on the short rail.
Installation
R ig h t and le f t r am p P i v oting ladde r
P l a t f o r m
B as e
L ong and
sho r t sup p o r t r ail s
www.lumi-o.com
Follow steps 1, 2 and 3* of
The Wedding Cake II
instruction sheet.
* D o not install the deck b r ac k et
f r om s t ep 3 .
** N ot include d
Step 2 p
fig.2
Step 4 p
Step 6 p
fig.4
fig.6
p.1
