Lumi Oasis 5445 Installation

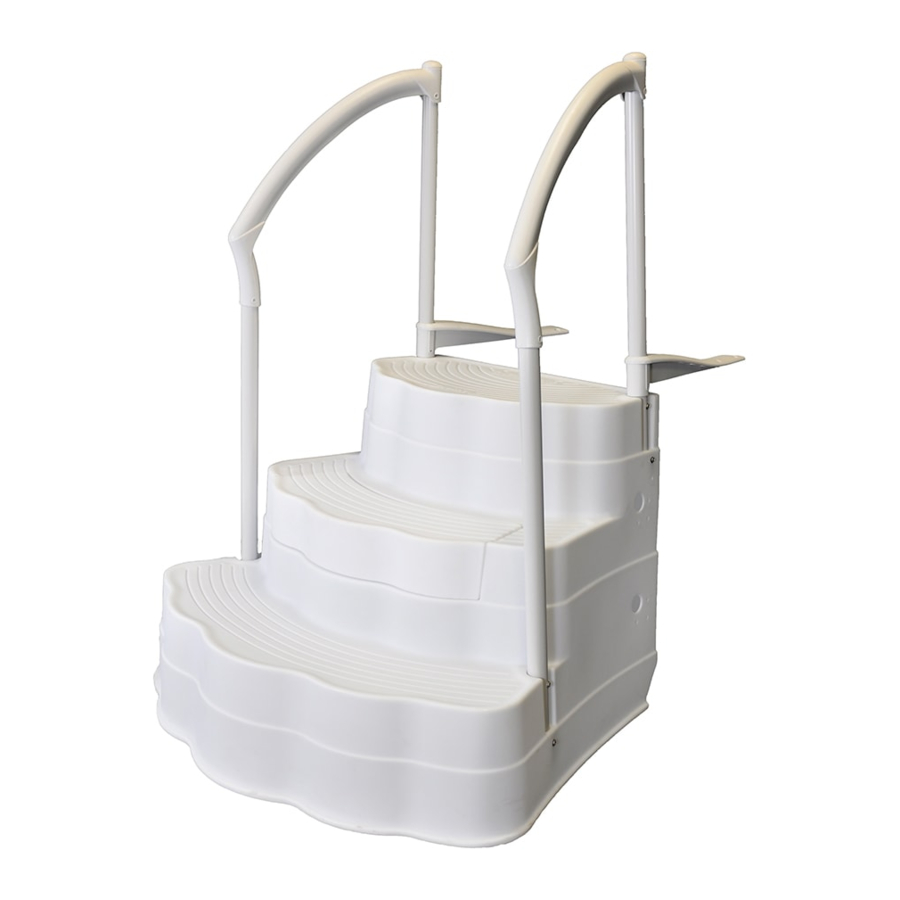

OASIS #5445
Please choose one of the following installation according to your handrails and pool type.
Read carefully the cautions and every steps before assembly and using your step.
Caution : File off all stripped or sharp edges before assembly to avoid injuries and pool damage.
Handrails box content:
18x 10x 10x 4x 4x
¾ Screw
3" Bolt
3½" Bolt
2x Brace

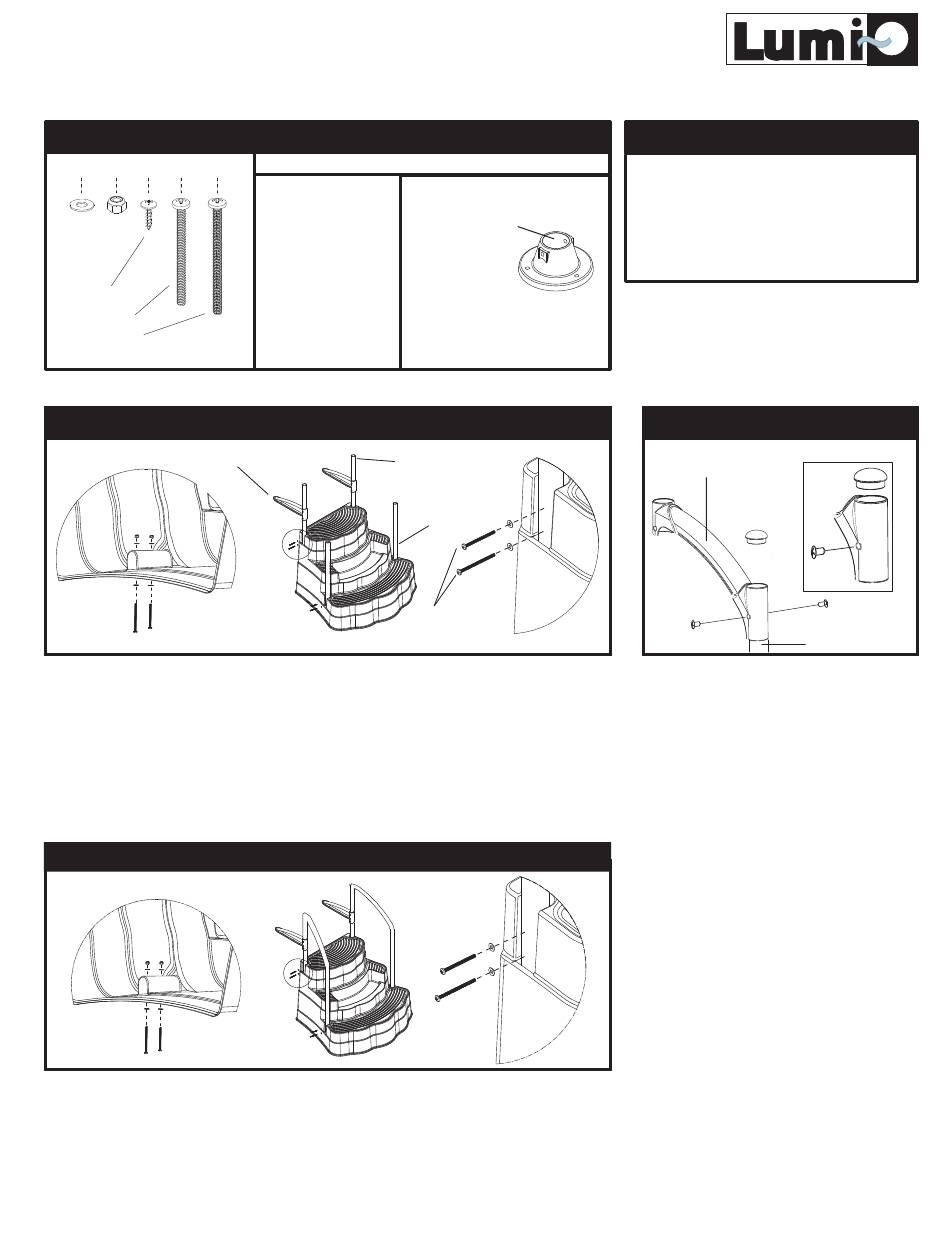

PVC HANDRAILS INSTALLATION :
Step 1
Brace
1- Lay the step on the side and fix the PVC tubes on the step with the 3" bolt
for the upper holes (4), the 3 ½" for the lower holes(4), the nuts (8) and the washers(16). (fig.1) Slide one brace on each of the rear
PVC posts. (Upper step)
2- Affix the handrails on the support tubes with the ¾" screws(4). (fig.2)
3- Fill the ballast unit with sand, seal with the plastic cap and put the ballast unit at the appropriate place on the step. (annex a)
4- Move the step into the water and allow the air to escape. Place the step by the pool wall leaving at least 1" between the step and the wall.
Ensure that the step touches the ground solidly. Lower the braces until its rests on the sidewalk. (annex b)
5- Fix the braces on the sidewalk with concrete screws (not included ). (annex c)
STAINLESS STEEL HANDRAILS INSTALLATION WITH BRACES:
Step 1
1- Slide the braces in the top of the handrails . Lay the step on the side and fix both handrails on the step with the 3" bolt for the upper
holes (4), the 3 ½" for the lower holes(4) ,the nuts (8) and the washers(16). (fig.1)
2- Fill the ballast unit with sand, seal with the plastic cap and put the ballast unit at the appropriate place on the step. (annex a)
3- Move the step into the water and allow the air to escape. Place the step by the pool wall leaving at least 1" between the step and the wall.
Ensure that the step touches the ground solidly. Lower the braces until its rests on the sidewalk. (annex b)
4- Affix the braces on the sidewalk with concrete screws (not included ). (annex c)
Rev. 2011-01-06
Installation
Additional Material
PVC handrails Stainless steel handrails
- 2x Flange
- 4 x 3/4" screw
- 4 x 39'' PVC tube
- 2 x handrail
- 2 x 3" bolt
- 2 x plastic cap
- 2 x nut
PVC
tube
PVC
tube
3" Bolt (top)
3½" Bolt (bottom)
Not included:
- Sand
Note: you may need
approximately 100 lbs of sand
- Concrete screws
Helpful hint:
To ease the installation of the rails and
bolts, use a screwdriver to line up holes.
Step p 2
Handrail
fig.1
fig.1
www.lumi-o.com
fig.2
PVC tube
p.1
