Instruction Leaflet IL012287EN

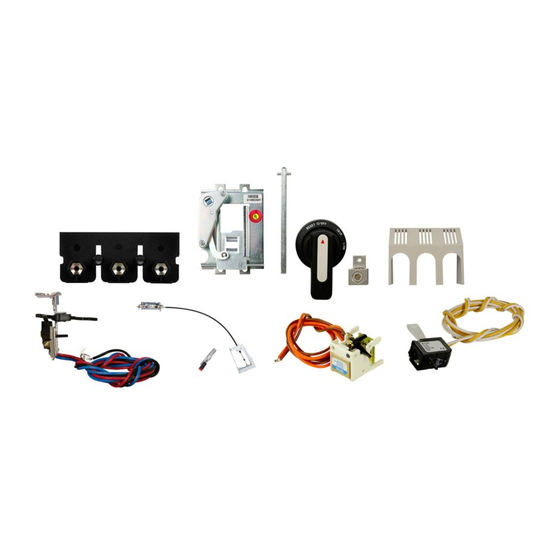

Installation of PRLSEB type barrier kits
Contents
PD2 Frame
PD3 Frame
Description
Page
1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
PD4 Frame
PD5 Frame
Power
Defense™
Advertisement
Related Manuals for Eaton Power Defense PRLSEB Series
Summary of Contents for Eaton Power Defense PRLSEB Series
- Page 1 Instruction Leaflet IL012287EN Installation of PRLSEB type barrier kits Contents PD2 Frame PD3 Frame Description Page 1. Introduction ......2 2.
- Page 2 Installation of PRLSEB type barrier kits 1 Introduction WARNING This Instructional Leaflet (IL) covers the Eaton UL67 finger protection DO NOT ATTEMPT TO INSTALL OR PERFORM MAINTENANCE kits listed in Table 1. ON EQUIPMENT WHILE IT IS ENERGIZED. DEATH, SEVERE PERSONAL INJURY, OR SUBSTANTIAL PROPERTY DAMAGE Table 1.
-
Page 3: Installation
All barrier housing parts are designed to slide into the breaker frames and to be held in place by friction. Part A Part A PD2 Frame PD3 Frame Part A Part A PD4 Frame PD5 Frame Figure 1. Installation of the PD2, PD3, PD4 & PD5 barrier housings. eaton www.eaton.com... - Page 4 Part A Part A Part B Part B (x3) PD2 Frame PD3 Frame Part A Part A Part B (x3) Part B (x3) PD4 Frame PD5 Frame Figure 2. Installation of the PD2, PD3, PD4 & PD5 boots. eaton www.eaton.com...
- Page 5 B. Install and fasten the small wire ties along the front of the boot to close it. C. Cut off the excess wire tie material. Figure 7. Installation of the boot - PD5 frames. Figure 4. Installation of the boot - PD2 frames. eaton www.eaton.com...
- Page 6 OF DEALING OR USAGE OF TRADE, ARE MADE REGARDING THE INFORMATION, RECOMMENDATIONS, AND DESCRIPTIONS CONTAINED HEREIN. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or otherwise for any special, indirect, incidental or consequential damage or loss...
