NextCentury TR4-X Quick Start Manual

Pit Lid Mount
Quick Start Guide
TR4-X Pit Lid Mount
The NextCentury Outdoor Transceiver (TR4-X) can be secured below a meter
pit lid using the Pit Lid Mount. It is recommended to use the TR4-X with
plastic or composite-plastic pit lids. Use of TR4-X under a cast-iron or metal
lid will greatly reduce wireless range and is not recommended.

1) Remove Lid Cutout

Remove the round mounting cutout from
the meter pit lid, exposing the lid's mounting
hole. The TR4-X Pit Lid Mount is compatible
with hole sigzes from 43mm to 54mm.

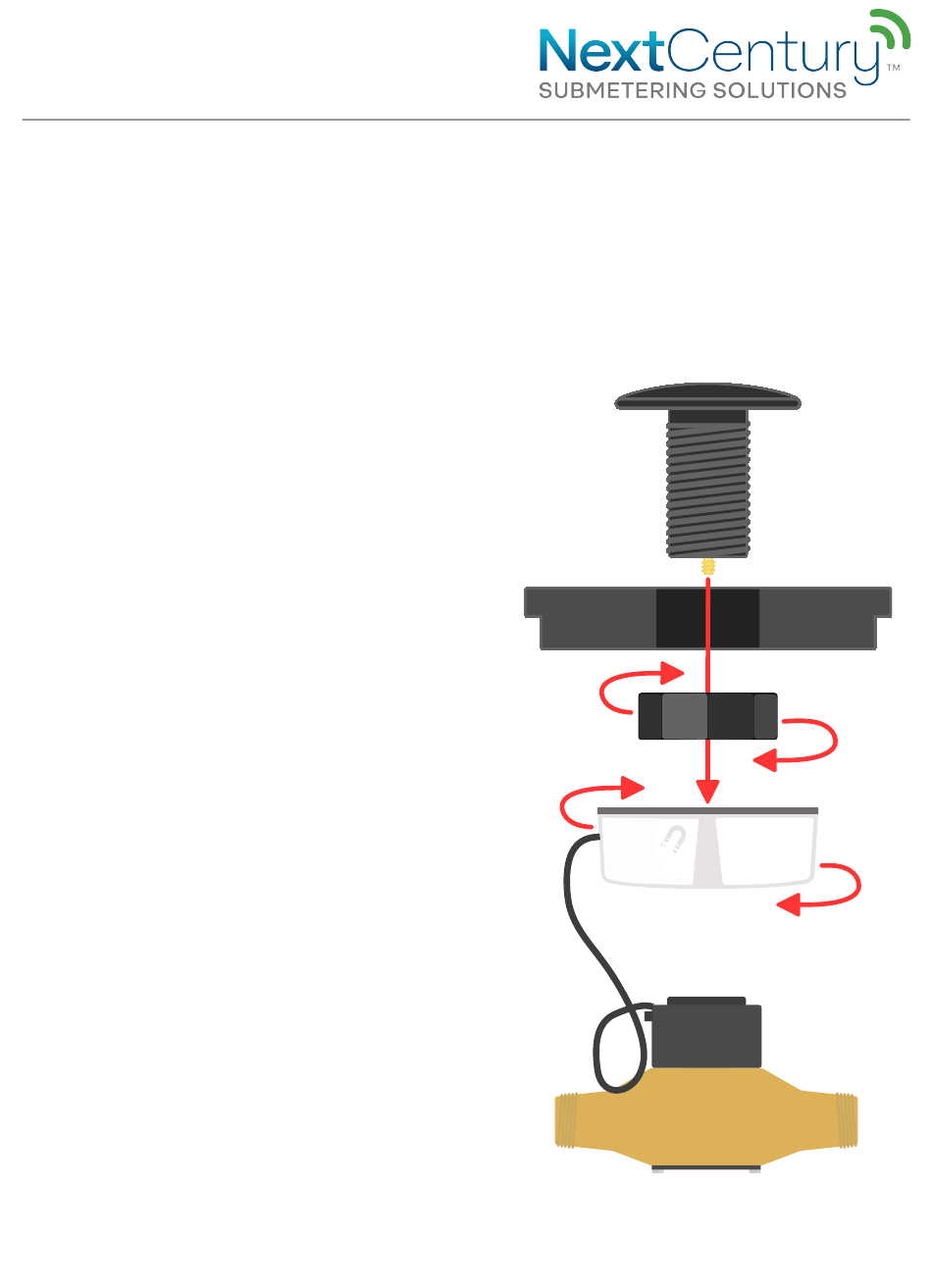

2) Attach the TR4-X

Insert the Pit Lid Mount and secure it to
the lid using the provided mount nut. Then
secure the TR4-X to the Pit Lid Mount
utilizing the built-in threaded fastener.

3) Connect Cables

Splice the wiring of the TR4-X and the
water meter using the NextCentury
waterproof Field Splice Kit. See TR4-X
wiring guide for proper wire connections.
TR4-X
