REVCAMUK MON16AHD Instructions

Instructions for the MON16AHD

7" Colour LCD screen

Power supply: 12V/24V

Power Consumption: 6W Max

Digital Screen Resolution: 1024W x (RGB) x 600

Contrast: 400:1

Brightness: 300cd/m2

Viewing Angle U/D:50°/70°, R/L:70°/70°

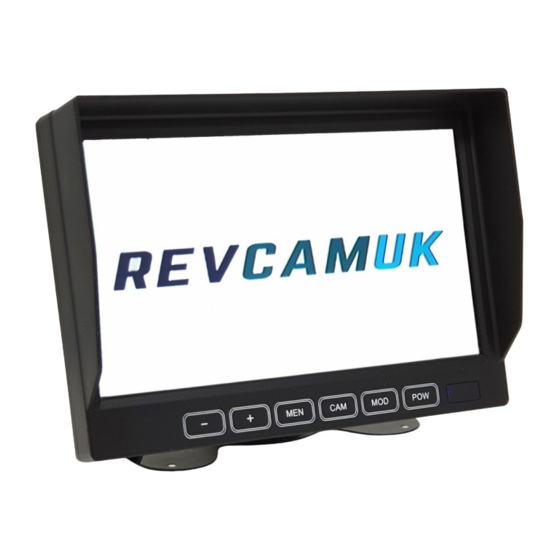

Our MON16AHD is a hybrid AHD 7 inch monitor. The screen has been fitted with an upgrad-

ed IPS panel with a higher number of pixels than the standard CVBS model.

The monitor will take BOTH the traditional CVBS cameras, as well as the new AHD technolo-

gy cameras. It is worth noting that a few NTSC format CVBS cameras can display strangely

on AHD monitors. In an ideal world we recommend using AHD cameras on AHD monitors,

and CVBS cameras on CVBS monitors.

Active Area: 154.08(W) x 85.92(H) mm

Operating Temperature: -20C to +65C

Storage Temperature: -25C to +70C

2 Inputs (AHD/CVBS)

PAL/NTSC/AUTO

Mirror/Normal Switch on both channels

Full function Remote Control

Table of Contents

Do you have a question about the MON16AHD and is the answer not in the manual?

Page 1 Viewing Angle U/D:50°/70°, R/L:70°/70° Full function Remote Control Our MON16AHD is a hybrid AHD 7 inch monitor. The screen has been fitted with an upgrad- ed IPS panel with a higher number of pixels than the standard CVBS model. The monitor will take BOTH the traditional CVBS cameras, as well as the new AHD technolo- gy cameras.
Page 2 Wiring Harness Layout Connecting the monitor to wiring harness Please be careful when inserting the connection from the monitor to the wiring harness. We get about 2 or 3 people a year phone us up for a re- placement wiring harness as they bent the pins after not noticing the arrows that need to be lined up be- fore pushing together.
Page 3 Various Settings Guide (In order) Brightness - This setting will modify how bright the image is displayed. Contrast - This setting will modify how much contrast the image displays Color - This setting will modify how much colour is displayed in the image Language - This setting will change the language that is used in the menu system (be care- ful with this one)
Page 4 Standard Mount Fitting When using the standard mount, there is only one position you can secure the monitor. See the photo to the right to see the indentation made to allow for the length of the bolt to secure to the square washer.
