Preferred Utilities Mfg Corp
Preferred Instruments div.
31-35 South Street, Danbury CT 06810
203-743-6741

Table of Contents:

SAFETY .............................................................................. 2
Alarm Sequence ................................................................. 2
Operation ............................................................................ 3
Installation ........................................................................... 4
JC-13D2 Indicator Mounting: ......................................... 4
Wiring: ............................................................................ 4
Menu Map ........................................................................... 7
Menu Map (Continued) ....................................................... 8
Screen Settings.............................................................. 9
Configure / Setup
Analog Input Setup ....................... 9
Configure / Setup
mA/Vdc Scaling ............................. 9
Configure / Setup
Alarms ......................................... 10
Configure / Setup
Alarm Types ................................ 10
SDI-JC-13D2 rev 8-22-22
www.preferred-mfg.com

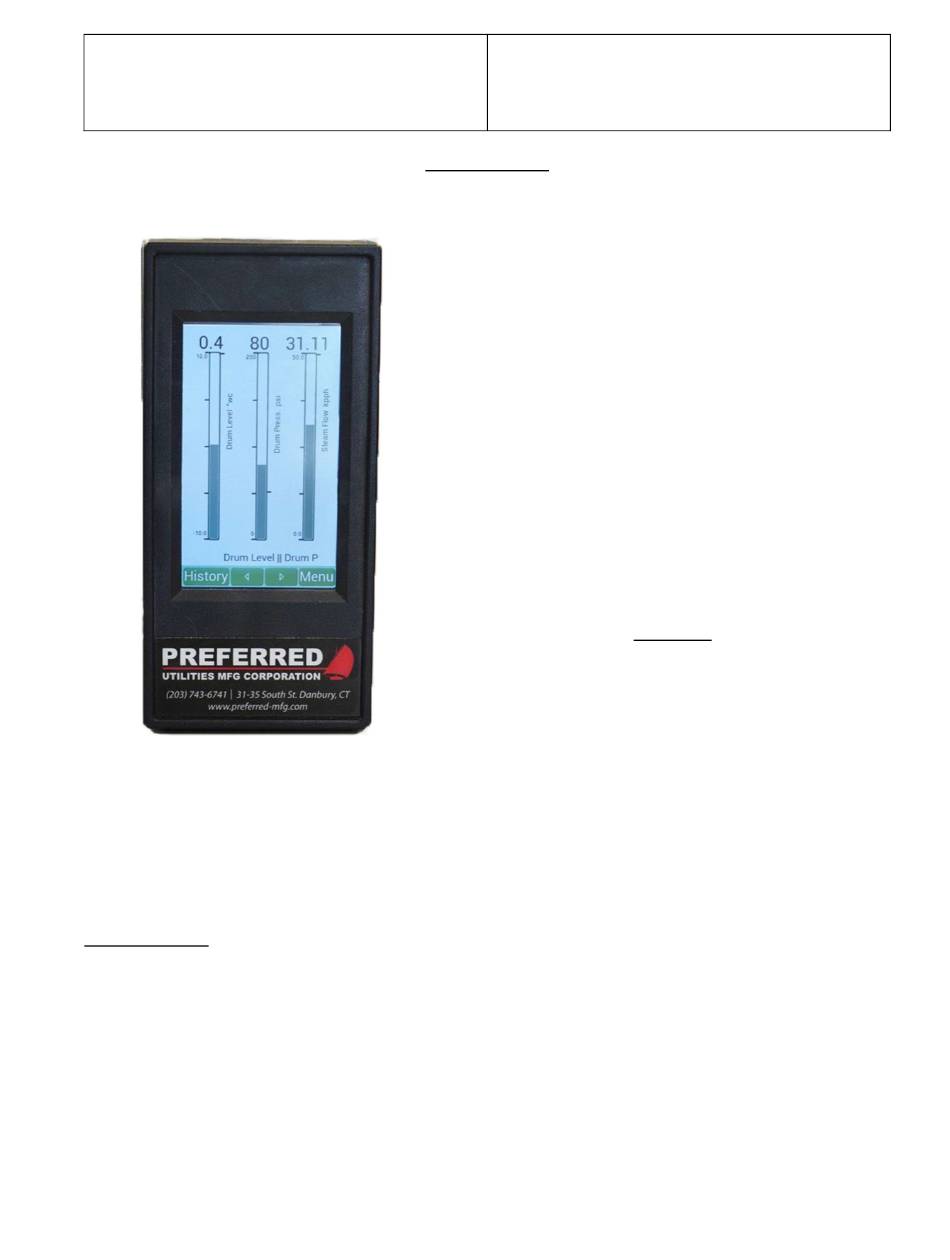

JC-13D2 Features
3-in-1 Process Bargraph Indicator
with Alarm Relays and Flow Totalizers
Installation & Operation Instructions
Up to 3 input signals with individual bargraphs for each or 3-
bargraph display.
Field selectable Input Signals:
4-20mA, J T/C, K T/C, 10k Thermistor, 0-10V, 0-5V, 0-2.3V
Signal Integrator/Totalizer for Flows, kW, etc with Reset
with Squre Root and Low Flow Cutoff features,
Non-Volitale value storage (no batteries or capacitors)
Configurable Dual Alarms: HiHi, Hi, Low, LowLow
Auto-Reset or Manual Reset 10A SPDT relays
Field scalable Bargraph, does not have to be zero based,
bargraphs can be scaled low-to-high or high-to-low
Scaled 4-20mA output, assignable to any input channel
Color Touchscreen
User entered text for sensor Name, sensor Units, totalizer Units
50 pt Alarm/Event History, Time/Date Stamped
Only 4 7/8" deep, fits in most existing burner control cabinets
Plug-in field wiring terminals
Modbus TCP (Ethernet), Modbus RTU (RS485)
USB port for configuration using free JC_D2Edit PC software
Description
The JC-13D2 is a field configurable digital Indicator for up to (3)
analog inputs with (2) alarms, and flow totalizer (aka Integrator)
features. The scaled signal is displayed on a backlit color
touchscreen LCD display. All adjustments can be made directly from
the faceplate of the instrument by navigating through user friendly
menus. JC_Edit PC software can also be used to configure the JC-
13D2 via the USB port and to import the Alarm/Event History into
JC_Edit.
Modbus Communications ................................................. 11
Parts List .......................................................................... 13
Specifications ................................................................... 13
JC-13D2
Totalizer Setup ........................... 10
page 1 of 14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JC-13D2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Preferred JC-13D2

  • Page 1: Table Of Contents

    USB port for configuration using free JC_D2Edit PC software Description The JC-13D2 is a field configurable digital Indicator for up to (3) analog inputs with (2) alarms, and flow totalizer (aka Integrator) features. The scaled signal is displayed on a backlit color touchscreen LCD display.
  • Page 2: Safety

    LoLo Alarm. Pressing the ALARM SILENCE button de-energizes a Common Alarm output ROUT or 24 Vdc sinking DOUT. The Common Alarm output can be used to activate an external bell or horn. If the JC-13D2 is alarm is configured as Auto Reset, the Alarm Output and Common Alarm output de-energize automatically when the PV drops below the (Alarm setpoint - the user set Deadband).
  • Page 3: Operation

    CLEAR 15:15:17 The History screen displays the Time/Date of the most recent 50 Alarms and Events. 8/17/20 Drum Press. Low Events include: Peak Input Value, Alarm Clear, Manual Reset, JC-13D2 power-up, etc.. ALARM 15:01:32 8/17/20 Drum Level High Touch the Up or Down arrow to advance to the next page of History.
  • Page 4: Installation

    IEC 60947-1 and -3 must be provided. Fuse: 3.15 amp Slo-Blo, 250 V, 5x20mm (Littlefuse 02153.15HXP, Belfuse 5ST 3.15-R, Preferred Utilities 16740-3.15S) Caution: To reduce the risk of fire, only replace fuse with the same type.
  • Page 5 RS485 - (24 Vdc) DC - Common (24 Vdc) 46 DCDIN 2 Optional Contact Relay 1 Closure Inputs 7 ACDIN 1 (120 Vac) 8 ACDIN 2 Relay 2 120 Vac 26 VA 50/60 Hz SDI-JC-13D2 rev 8-22-22 page 5 of 14...
  • Page 6 4-20 mA, and other 'quiet' DC wiring; but not with JC-10D2 Thermistor pulser or solenoid wiring). +2.500 Vdc * Un-Shielded Cable can be used if run in metallic conduit. 10.0k 10k@25C ohms 817.2@100C No Polarity INPUT TYPE = 'Thermistor' SDI-JC-13D2 rev 8-22-22 page 6 of 14...
  • Page 7: Menu Map

    Optional I/O Discrete Inputs DC DIN 1 Function Comm. Setup Discrete Outputs DC DIN 2 Function Discrete Outputs Comm. Setup ROUT 1 Function RS485 ROUT 2 Function Ethernet DOUT 1 Function DOUT 2 Function SDI-JC-13D2 rev 8-22-22 page 7 of 14...
  • Page 8: Menu Map (Continued)

    Alarm 2 Type Alarm 2 Delay Sec. Alarm 2 Reset Type Alarm 2 Deadband Alarm 1&2 Types Totalizer Setup Totalizer Option Zero Button Option Rate Time base Rate Multiplier Totalized Units Low Flow Cutoff SDI-JC-13D2 rev 8-22-22 page 8 of 14...
  • Page 9: Screen Settings

    The units are F or C, as selected above. Bargraph Bottom 999.9 -999.9 This is the temperature value at the bottom of the bargraph. The units are F or C, as selected above. SDI-JC-13D2 rev 8-22-22 page 9 of 14...
  • Page 10: Alarms

    99999.9 -99999.9 AOUT 0-2 4 mA = This is the scaled Input value for 4 mA output. 100.0 99999.9 -99999.9 AOUT 0-2 20 mA = This is the scaled Input value for 20 mA output. SDI-JC-13D2 rev 8-22-22 page 10 of 14...
  • Page 11: Modbus Communications

    40104 UINT8 Enumeration CH 1 Alarm 1 Type: 0=Disabled, 1=LoLo, 2=Lo, 3=Hi, 4=HiHi 40105 FLOAT CH 1 Alarm 2 Setpoint 40107 UINT8 Enumeration CH 1 Alarm 2 Type: 0=Disabled, 1=LoLo, 2=Lo, 3=Hi, 4=HiHi SDI-JC-13D2 rev 8-22-22 page 11 of 14...
  • Page 12 CH 3 Alarm 1 Type: 0=Disabled, 1=LoLo, 2=Lo, 3=Hi, 4=HiHi 40125 FLOAT CH 3 Alarm 2 Setpoint 40127 UINT8 Enumeration CH 3 Alarm 2 Type: 0=Disabled, 1=LoLo, 2=Lo, 3=Hi, 4=HiHi 40128 UINT32 CH 3 Totalizer Count SDI-JC-13D2 rev 8-22-22 page 12 of 14...
  • Page 13: Parts List

    RS485: Isolated, 4.8 - 57.6 kbaud, Modbus RTU Analog Inputs Ethernet: 10/100 Mb/s, Modbus/TCP (3) 16 bit, 5 samples/sec, 50/60Hz filter: -90db Signal Types 4-20 mA, J T/C, K T/C, 10kThermistor 0-2.3 Vdc, 0-5 Vdc, 0-10 Vdc SDI-JC-13D2 rev 8-22-22 page 13 of 14...
  • Page 14 Preferred Utilities Mfg Corp Preferred Instruments div. 31-35 South Street, Danbury CT 06810 203-743-6741 www.preferred-mfg.com SDI-JC-13D2 rev 8-22-22 page 14 of 14...
