Preferred TG-EL-D4B Series Manual

FUEL SENTRY TANK GAUGE AND
LEAK DETECTION SYSTEM
Model TG-EL-D4B-xx-0-0

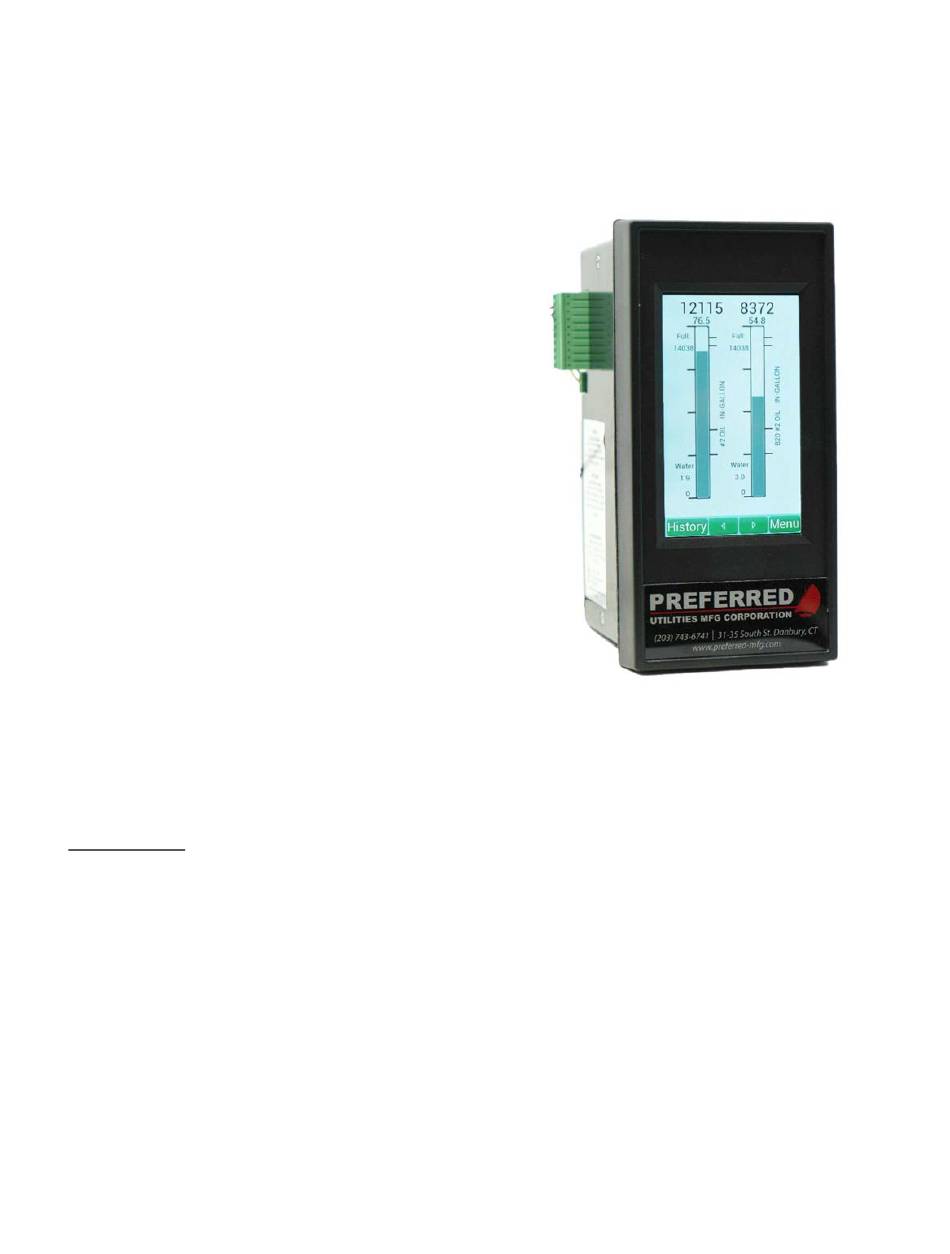

The TG-EL-D4B Tank Gauge/Fuel Management System with
Leak Detection System monitors one or two tanks. The D4B
tracks fuel deliveries and daily/weekly fuel consumption. It is a
powerful accounting tool. The leak-detection system is designed for
use with double wall tanks, vaulted tanks, single wall tanks with spill
basins, and double wall piping. The TG-EL-D4B is designed for use
with all fuel oils (No. 2 - No. 6), diesel, kerosene, jet fuel, and most
other petroleum products.
Features include:

Easy-to-read bar-graph touchscreen display

Printer option with automatic report printing

Automatic delivery report and data logging

Daily/weekly usage report and data logging

Daily HD-A2-C automatic leak sensor testing

Overfill alarm

Idle tank theft alarm

Eight Intrinsically Safe (I.S.) sensor inputs

RS485 and Ethernet Modbus

Fully field-configurable

D4B_Edit PC based configuration via USB
4-20 mA Xmtrs or switch sensors:

TG-EL-WF-x-C 4-20 mA wire float level sensor

TG-EL-HLT-x-C 4-20 mA head level sensor

Most other 4-20 mA level, head, bubbler, ultrasonic, or
magnetostrictive level sensors

Table of Contents

SAFETY .................................................................................... 2
Specifications ............................................................................ 3
Ordering Information ................................................................. 3
Features .................................................................................... 4
Alarms & Status's: ..................................................................... 5
Printer:....................................................................................... 6
Operation .................................................................................. 7
Menu Layout ............................................................................. 9
I/O Configuration Worksheet ................................................... 11
Physical Installation................................................................. 14
Wiring ...................................................................................... 15
Instruction Manual SDI-TG-EL-D4B-xx-x-0
Preferred Utilities Manufacturing Corporation

HD-A2-C 4-20 mA discriminating leak sensor

RBS or PS-LDS float leak switch

Most other contact closure leak sensors
Level Sensor Type Setup & "Stick Depth".............................. 20
Tank Dimensions and Stick Chart Types ................................ 22
Delivery Detection Setup ......................................................... 24
Theft Alarm Setup ................................................................... 25
Alarms and Status Functions Setup ........................................ 25
Printer ...................................................................................... 26
Troubleshooting & VIEW I/O ................................................. 26
Password ................................................................................ 28
Modbus ................................................................................... 29
Configuration Record .............................................................. 30
Panel Cutout Template ........................................................... 38
