OPERATION MANUAL
NCG9
NCG8
LIMITED WARRANTY
This product is warranted to be free from defects in material and/or
workmanship for a period of 1 year from date of original installation, not to
exceed 18 months from the date of manufacture.
Any component which proves to be faulty in material and/or workmanship
will be replaced or repaired (at the option of Prince Castle, Inc.) without
cost to the customer for parts and labor. This warranty covers on-location
service (i.e. trip charges and/or mileage). Travel mileage is limited to 100
miles (200 Kilometers) round trip (one trip warranty) from an authorized
service agency or its sub-service agency.
This warranty is subject to the following exceptions/conditions:
• Use of any non-genuine Prince Castle parts voids this warranty.
• All labor shall be performed during regular work hours. Overtime
premium (the incremental amount) will be charged to the customer.
• Damage caused by carelessness, neglect and/or abuse (e.g. dropping,
tampering, or altering parts, equipment damaged in shipment, by fire,
flood or an act of God) is not covered under this warranty.
• All problems due to operation at voltages other than that specified on
equipment nameplates are not covered by this warranty. Conversion to
correct voltage is the customer's responsibility.
• Normal adjustments as outlined in this manual are not covered under
warranty.
• This equipment must be serviced by Prince Castle Authorized Service
Agency or a Prince Castle Service Technician during the warranty period.
• Wearable items such as (springs, Teflon sheets, bearings) are not
Included under warranty.
5 floor, Building 8, No. 300 Dingyuan Road, Songjiang District, Shanghai, China, Zip Code 201616
Tel: +86-021-6040-1728 www.princecastle.com
600-C601 RevB_EN
®

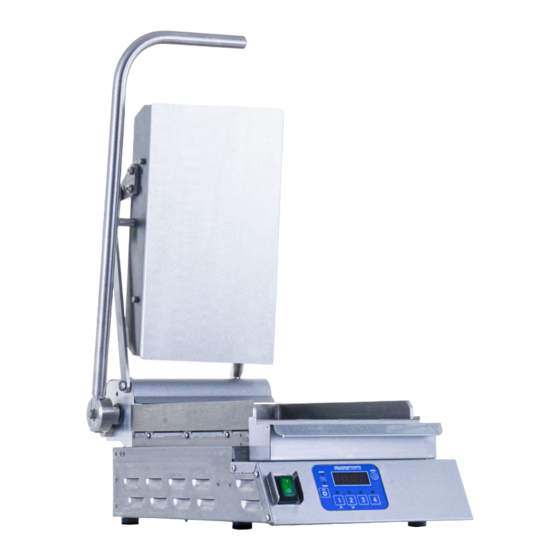

Product Identification

HEATING
DISPLAY
INDICATOR
LIGHT (TOP)
HEATING
INDICATOR LIGHT
(BOTTOM)
SET BUTTON
PRODUCT 1 &
UPPER ARROW
BUTTON
PRODUCT 2 &
LOWER ARROW
BUTTON

TABLE OF CONTENTS

Product Identification ......................................1
Safety Information ...........................................2
Model specification ...........................................2
Installation .......................................................3
Initial Start-Up .................................................4
Seasoning the Cooking Surfaces.....................4
Operating Instructions (Electronic Control)...4
Program Instructions (Electronic Control)......5
Operating Instructions (Mechanical Control).5
Daily Cleaning...................................................6
Spring adjustment.............................................7
Exploding View.................................................8
Wiring Diagram .............................................. 13
Error code table................................... ......... ...15
Prince Castle LLC (China)
NCG9&8 Series
TEMPERATURE
BUTTON/LOGO
TOP HEATER
ON/OFF
INDICATOR
LIGHT (1-4)
PRODUCT 4
BUTTON
PRODUCT 3 BUTTON
1 / 15
