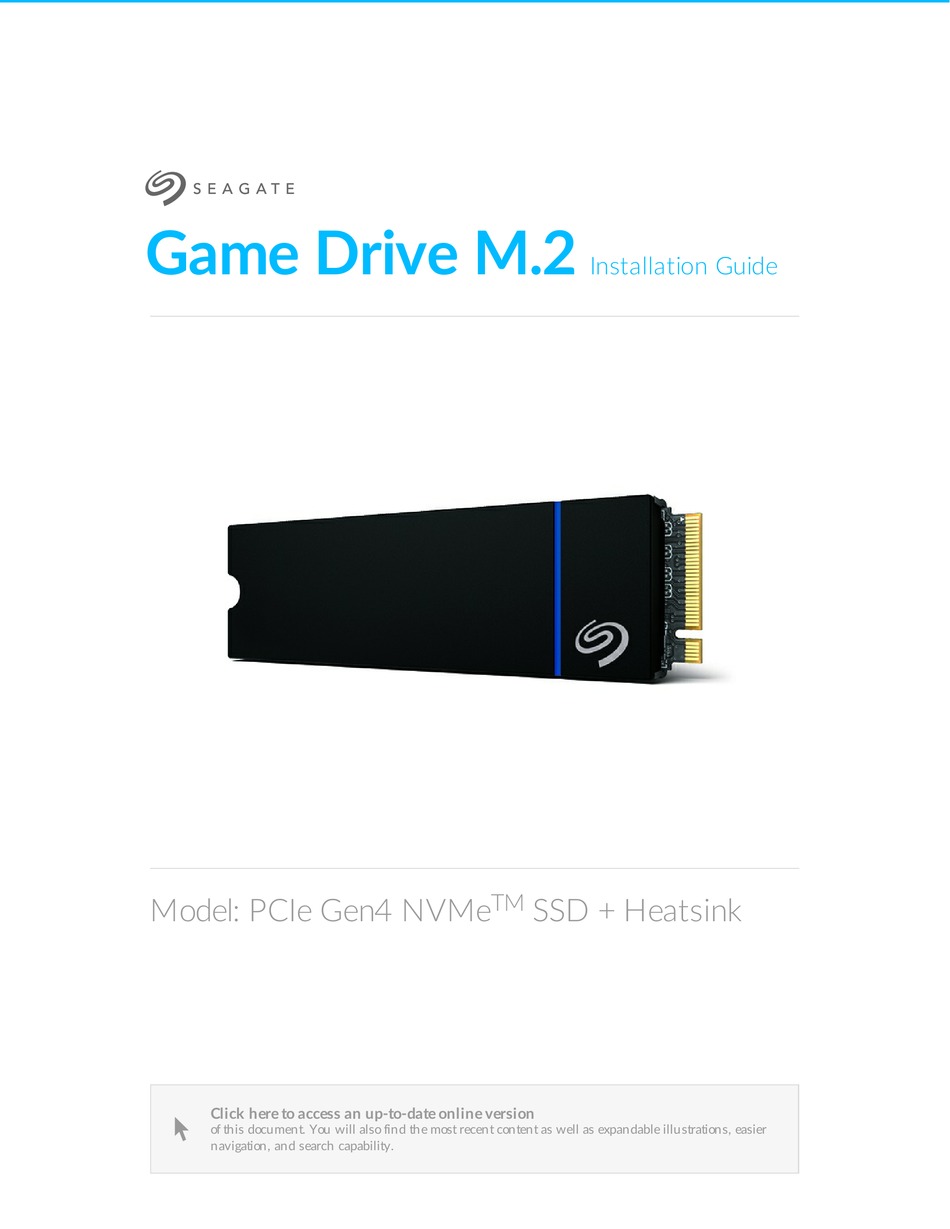

- Page 1 Game Drive M.2 Installation Guide Model: PCIe Gen4 NVMe SSD + Heatsink Click here to access an up-to-date online version of this document. You will also find the most recent content as well as expandable illustrations, easier navigation, and search capability.
- Page 2 Cont ent s Cont ent s 1 Introduction ................... .
- Page 3 Introduc on Product informa on Intended for PlayStation 5 consoles. Game Drive M.2’s heatsink is pre-installed. Removing it may damage Game Drive M.2. Dimensions of Game Drive M.2 are 80.15 mm (L) x 24.20 mm (W) x 9.50 mm (H). Verify that your system provides enough space for installation.
- Page 4 Installing Game Drive M.2 Step 1 - Turn off your console Remove all cables and devices connected to your console. Wait a while for your console to cool down. Place your console on a flat surface with a clean protective covering. Remove the base and position the console so that the logo is facing down, with the power button facing away from you.
- Page 5 Step 4 - Remove SSD screw Carefully remove the SSD screw in the slot and lift up the spacer. Move the spacer to the groove marked "80". Step 5 - Insert Game Drive M.2 Carefully insert Game Drive M.2 into the expansion connector until it is firmly seated in the slot. Game Drive M.2 9/19/22...
- Page 6 Important Make sure Game Drive M.2 is inserted all the way into the expansion connector before proceeding to the next step. If Game Drive M.2 is incorrectly inserted it may cause damage to the terminal and your console. Step 6 - Fasten Game Drive M.2 Ensure that Game Drive M.2 is flush with the spacer.
- Page 7 Step 9 - Reconnect Reattach the base and connect the AC power cord and cables. Turn on the power. If your Game Drive M.2 has never been used on a console, you should see instructions for formatting it. Game Drive M.2 9/19/22...
- Page 8 Support & Services Online support and services Go to www.seagate.com/contacts. Warranty support Go to www.seagate.com/support/warranty-and-replacements. Game Drive M.2 9/19/22...
