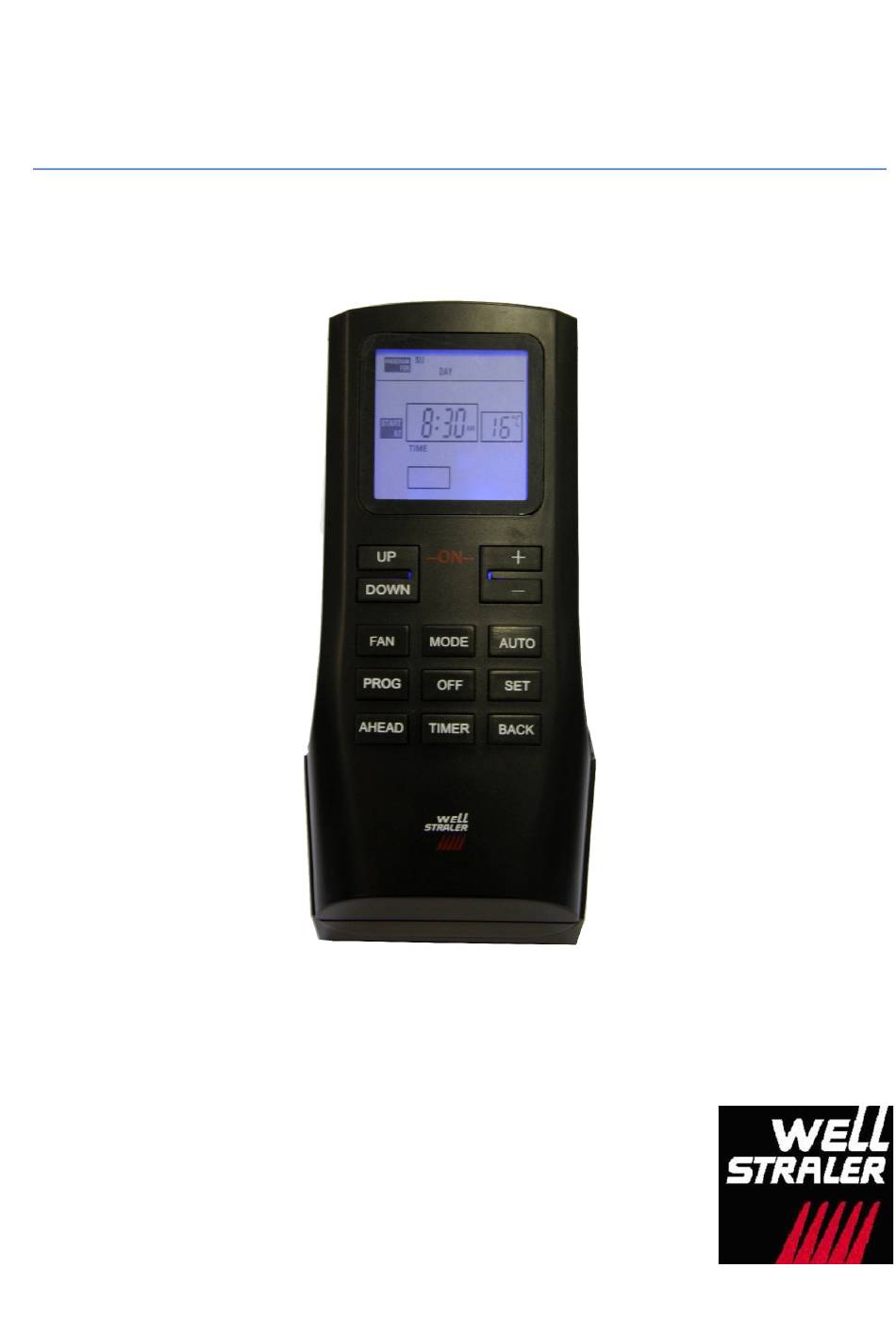

- Page 1 User Guide RC-17 WELL STRALER Hertstraat B-9473 Welle (0)53 (0)53 info@wellstraler.be...
-
Page 2: Table Of Contents
Index Introduction ..........................3 1.1. Welcome ............................3 1.2. Warranty ............................3 1.3. Security............................3 1.3.1. Built-in safeties in the control system ..................3 1.3.2. Communication safety - transmitter..................3 1.3.3. Thermo-safety – receiver......................4 1.3.4. Child Protection (CP) ........................4 1.4. Appliances with ventilator ......................4 Commands of your appliance .................... -
Page 3: Introduction
1.1. Welcome Thank you for buying your Well Straler gas heater! We are glad to have you as a customer. With this quality product you will enjoy the cosy warmth and unique flame dance for many years. Before using the heater, please read the instructions carefully and keep them in a safe place. -
Page 4: Thermo-Safety - Receiver
1.3.3. Thermo-safety – receiver The system has a thermo-safety feature that is built into the receiver. This feature is temperature-activated and it provides an extra margin of safety in case the receiver should be placed where ambient temperatures exceed 65°C. At 65°C the thermistor will automatically shut down the fireplace and the receiver will begin emitting a series of 4 beeps every 2 seconds. -
Page 5: Commands Of Your Appliance
2. Commands of your appliance Some advantages of the Well Straler new product generation: Automatic ignition without steady pilot; Precise digital temperature control in a range of ± 6 m from the heater; Wireless RF remote control of all the functions of your heater in a range of ±... -
Page 6: Initial Set-Up Programming Of Transmitter
FLAME- FLAME+ MODE MODE AUTO FLAME- FLAME+ MODE REVIEW RESET RETURN MODE AUTO FLAME- FLAME+ AHEAD TIMER BACK MODE REVIEW RETURN RESET 2.3. Initial set-up programming of transmitter MODE AUTO AHEAD TIMER BACK REVIEW RESET RETURN Follow the procedure below before first use: ... -
Page 7: Program Operation Of Remote Control
2.4. Program operation of remote control The transmitter has a factory program built-in standard program. Each day has been broken into four periods and each period has its own starting time and temperature. A chart of the built-in programs is pictured below PERIOD hour / temperature MORN... - Page 8 FLAME- FLAME+ FLAME- FLAME+ MODE MODE FLAME- FLAME+ MODE AUTO MODE AUTO FLAME- FLAME+ MODE MODE MODE AUTO REVIEW RETURN REVIEW RETURN RESET RESET MODE AUTO To make changes in the standard program: REVIEW RESET RETURN AHEAD AHEAD TIMER BACK TIMER BACK 1.
-
Page 9: Program Overview
FLAME- FLAME+ FLAME- FLAME+ MODE MODE MODE AUTO MODE AUTO REVIEW RETURN REVIEW RETURN RESET RESET 2.4.2. Program overview AHEAD AHEAD TIMER BACK TIMER BACK If you want to review the settings for either the factory program and/or your customized program, you may do so by (in OFF-mode) FLAME- FLAME+... -
Page 10: Thermo Operation (On/Off Based On Set Temp Setting)
2.5.2. Thermo operation (ON/OFF BASED ON SET TEMP SETTING) FLAME- FLAME+ MODE The system can control your appliance thermostatically when operating in THERMO mode. MODE AUTO 1. Starting in OFF mode, press MODE for REVIEW RETURN RESET 3 seconds until LCD-screen displays THERMO. -
Page 11: Adjusting Fan Speed
FLAME- FLAME+ MODE MODE AUTO FLAME- FLAME+ REVIEW RESET RETURN FLAME- FLAME+ MODE MODE MODE AUTO FLAME- FLAME+ AHEAD TIMER BACK MODE AUTO 2.5.5. Adjusting FAN speed* MODE RETURN REVIEW RESET MODE AUTO REVIEW RETURN RESET The speed of the FAN can be adjusted only in the following modes: ON - THERMO – PROGRAM. AHEAD TIMER BACK... -
Page 12: Setting The Countdown Timer
AHEAD TIMER BACK FLAME- FLAME+ MODE 2.5.8. Setting the countdown timer MODE AUTO REVIEW RETURN RESET This system can operate with a built-in COUNTDOWN timer when the transmitter is in the ON or THERMO mode (THERMO or ON must be displayed on the LCD-screen). AHEAD TIMER BACK... -
Page 13: Receiver
2.6. Receiver The receiver is built-in in your appliance and has a 3-position slide button: LEFT: REMOTE (the system only operates if the receiver receives commands from the transmitter) MIDDLE: ON (the system remains ON in low flame, and ventilator –if present- stays in normal mode) ... -
Page 14: Connecting The Receiver
2.6.3. Connecting the receiver Ventilator 230V connection EXTREMELY IMPORTANT: MAKE SURE THE WIRES ARE CONNECTED IN THE RIGHT WAY!! -
Page 15: Problem Solver
It is possible to connect an (optional) ventilator to our gas inserts with convection. The maximum power the receiver can control is 33W. All connections have been provided to connect this ventilator. This picture shows the tripolar connector. Grounding Ventilator connection 2.7.
