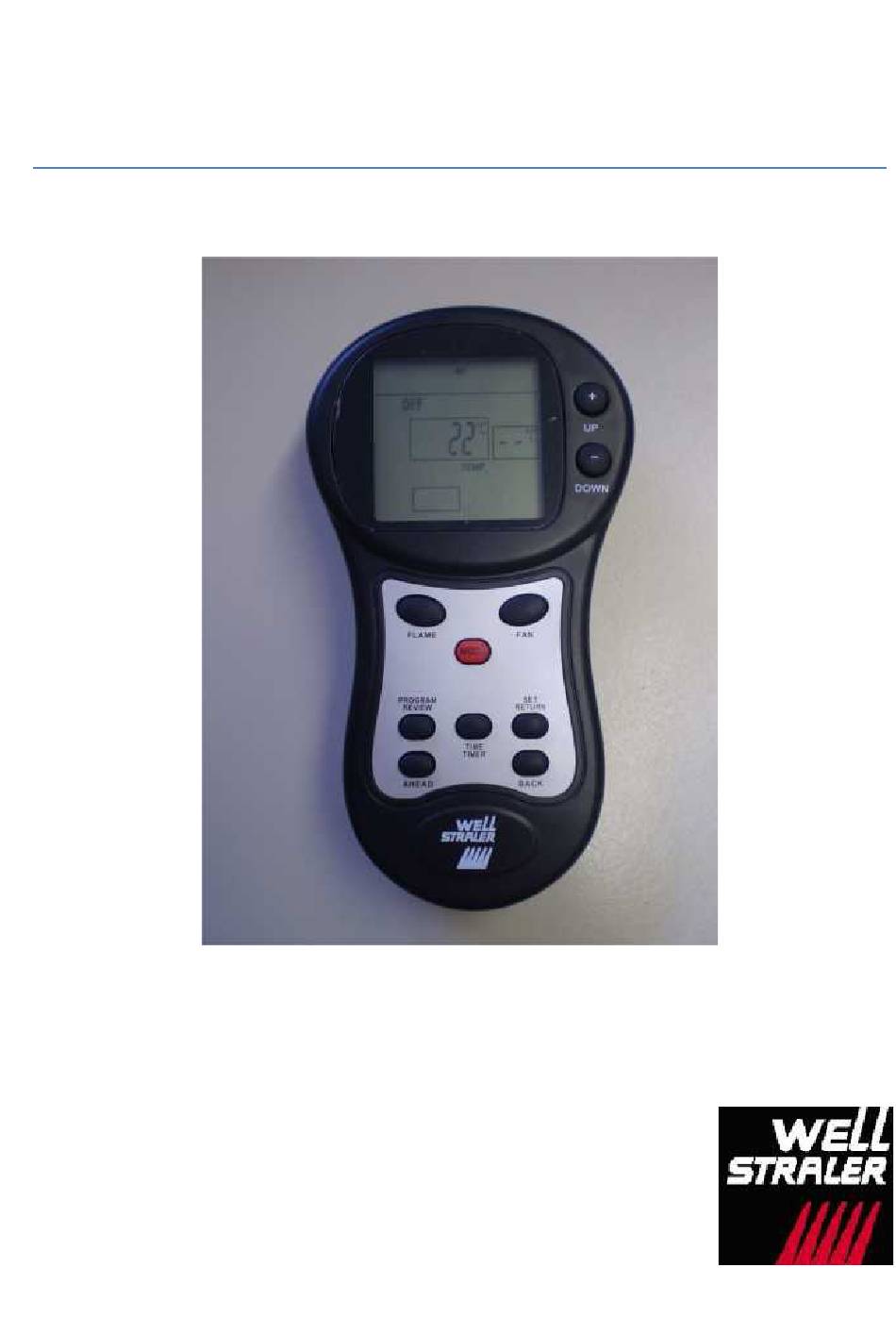

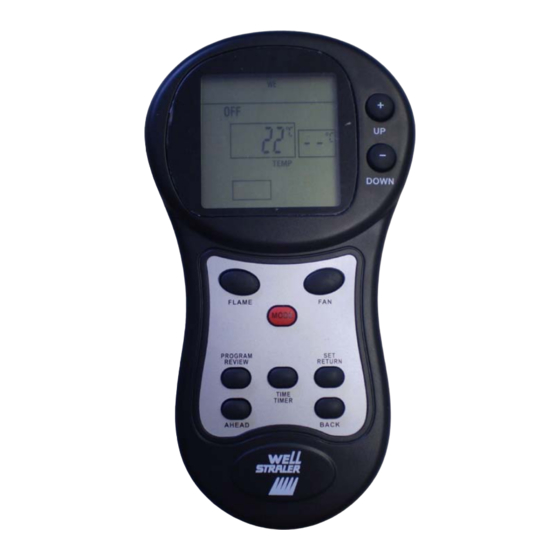

- Page 1 User Guide RC-16B WELL STRALER Hertstraat B-9473 Welle (0)53 (0)53 info@wellstraler.be...
-
Page 2: Table Of Contents
Index Introduction ..................................3 1.1. Welcome................................3 1.2. Warranty ................................3 1.3. Security.................................. 3 1.3.1. Built-in safeties in the control system ......................3 1.3.2. Thermo safety - transmitter ..........................3 1.3.3. Communication safety – transmitter ....................... 4 1.3.4. Thermo-safety – receiver..........................4 1.3.5. -
Page 3: Introduction
1. Introduction 1.1. Welcome Thank you for buying your Well Straler gas heater. We are glad to have you as a customer. With this quality product you will enjoy the cosy warmth and unique flame dance for many years. Before using the heater, please read the instructions carefully and keep them in a safe place. -
Page 4: Communication Safety - Transmitter
1.3.3. Communication safety – transmitter The communication-safety operates in all operation modes (ON-THERMO-PROGRAM): At all times and in all operating modes, the transmitter sends an RF-signal every 15 minutes to the receiver, signaling that the transmitter is within the normal operating range of ± 6 m. Should the receiver not receive a transmitter signal, the IC- software in the receiver will begin a 1 hour countdown timing function. -
Page 5: Commands Of Your Appliance
Commands of your appliance Some advantages of the Well Straler new product generation: Automatic ignition without steady pilot; Precise digital temperature control in a range of ± 6 m from the heater; Wireless RF remote control of all the functions of your heater in a range of ± 6m;... -
Page 6: Initial Set-Up Programming Of Transmitter
2.3. Initial set-up programming of transmitter Follow the procedure below before first use: Temperature setting (°C of °F) preset for °F; Current day of week SU-MO-TU-WE-TH-FR-SA; Current time of day hours and minutes. To program settings, first remove the battery cover on the back of the transmitter. If you have not already installed the 2 AAA batteries, this would be a good time to do so. -
Page 7: Program Operation Of Remote Control
2.4. Program operation of remote control The transmitter has a factory program built-in standard program. Each day has been broken into four periods and each period has its own starting time and temperature. A chart of the built-in programs is pictured below PERIOD hour / temperature MORN... - Page 8 To make changes in the standard program: 1. Press PROGRAM/REVIEW for 4 sec. The shaded boxes on the LCD-screen with the words PROGRAM FOR and START AT will begin to flash. The current day, period, time and set temperature FLAME of the built-in factory program will also be displayed.
-
Page 9: Program Overview
2.4.2. Program overview If you want to review the settings for either the factory program and/or your customized program, you may do so by pressing the PROGRAM/ FLAME REVIEW button for 1 second. By pushing this MODE button repeatedly you can review the complete program. -
Page 10: Thermo Operation (On/Off Based On Set Temp Setting)
2.5.2. Thermo operation (ON/OFF BASED ON SET TEMP SETTING) The system can control your appliance thermostatically when operating in THERMO mode. 1. Press MODE repeatedly until LCD-screen displays THERMO. FLAME 2. Press UP/DOWN to set the desired room MODE temperature. The highest SET temperature is 32°C (99°F), the lowest SET temperature is 6°C PROGRAM REVIEW... -
Page 11: Adjusting Fan Speed
2.5.5. Adjusting FAN speed The speed of the FAN can be adjusted only in the following modes: ON - THERMO – PROGRAM. The FAN operates automatically in LOW speed (FAN LOW) whenever the fire is on for 5 minutes FLAME and stays on for approximately 15 minutes after the MODE burner is turned off. -
Page 12: Setting The Countdown Timer
2.5.8. Setting the countdown timer This system can operate with a built-in COUNTDOWN timer when the transmitter is in the ON or THERMO mode (THERMO or ON must be displayed on the LCD-screen). When the set time period has elapsed, the device will automatically switch off. 1. -
Page 13: Receiver
2.6. Receiver The receiver is built-in in your appliance and has a 3-position slide button: LEFT: REMOTE (the system only operates if the receiver receives commands from the transmitter) MIDDLE: ON (the system remains ON in low flame until the slide switch is placed in the OFF or REMOTE position) ... -
Page 15: Problem Solver
2.7. Problem solver PROBLEM CAUSE SOLUTION The appliance does not react The receiver is in ‘OFF’ position Place the receiver button in ‘REMOTE’ position when the MODE-button is The receiver does not match to the Execute the ‘LEARN’ procedure pressed. transmitter.
