Front Panel Controls - SV Sound Prime Wireless Pro SoundBase Manual

Unpacking and Preparing Your Prime Wireless Pro SoundBase
1. Place Prime Wireless Pro SoundBase in desired location.
2. Remove protective plastic film from front panel display by gently peeling off using the tab in the
lower right corner.
3. Set Power Cord aside for later use.
4. Locate the 2 x AAA batteries and install them in the Remote Control.

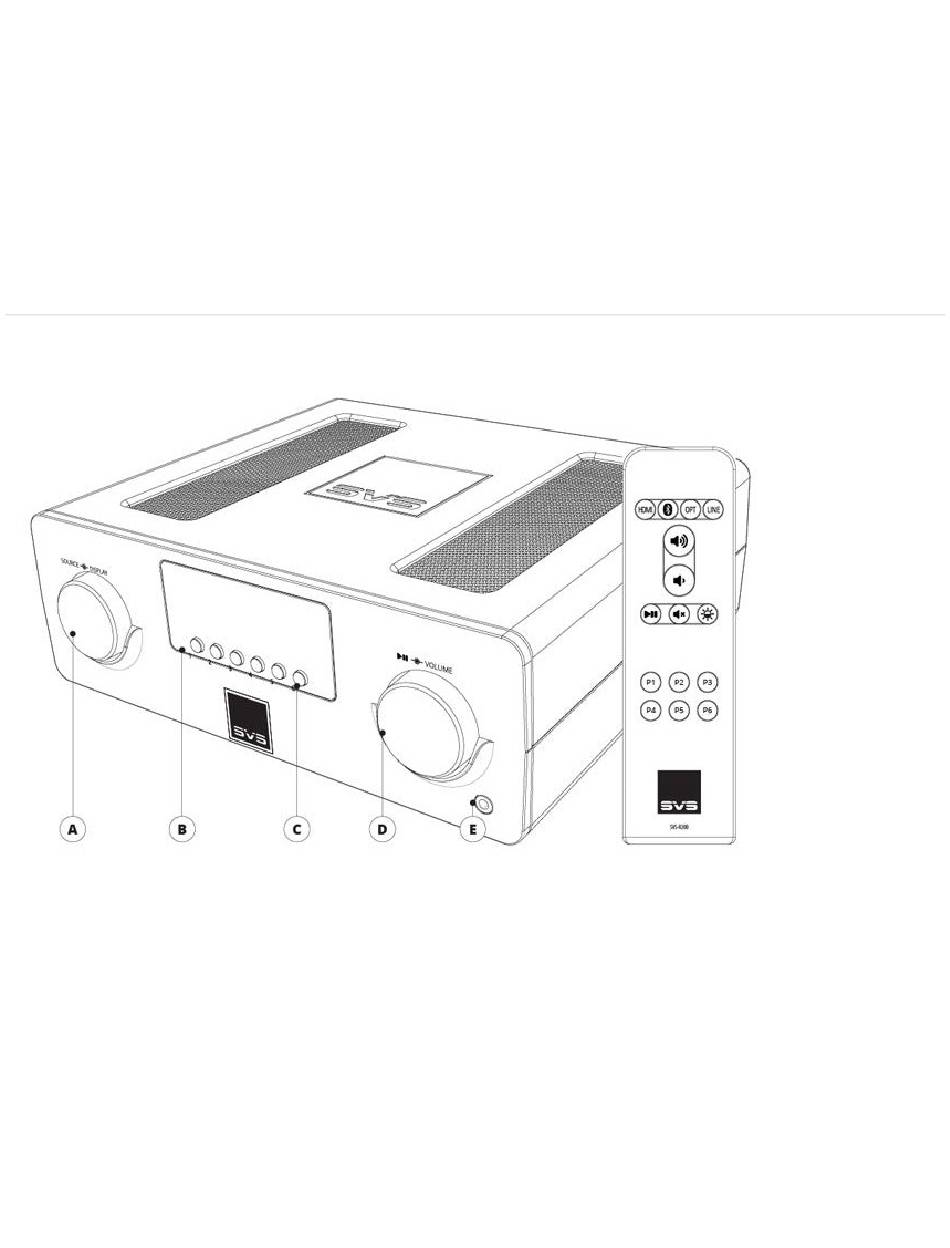

Front Panel Controls

Source & Display Control
Rotate the knob to change the input. Press the knob to dim or turn off the display.
Front Panel OLED Display
Indicates the selected audio source, volume level, pause, mute, and track information (when available). Also provides
feedback when setting and selecting presets.
Backlit Preset Buttons
For setting and selecting presets.
Volume Control, Play/Pause, & Mute
Rotate the knob to adjust volume.
Headphone Output
Connect headphones for private listening.
