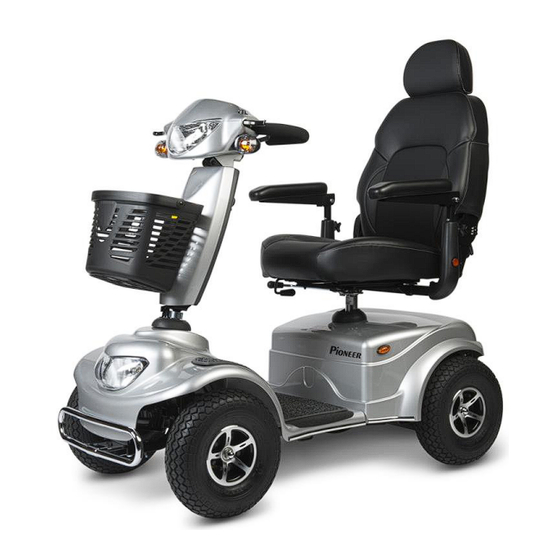

S148
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pioneer S148 and is the answer not in the manual?

Questions and answers

David Hartman
February 28, 2025

How to set the time on the eclipse pioneer s148

0
1 comments:
Mr. Anderson
February 28, 2025

To set the time on the Eclipse Pioneer S148 scooter:

1. Turn the key switch off.
2. Press and hold both the headlight button and the half-speed button for 3 seconds.
3. While holding the buttons, turn the key switch on.
4. Release both buttons; the display will enter setting mode.
5. Press the hazard light button to cycle through the settings (AM/PM, hour, minute, °C/°F, km/mile, and kph/mph).
6. Use the left or right indicator button to adjust the selected setting.
7. Leave all buttons untouched for more than 5 seconds to save the settings and return to drive mode.

This answer is automatically generated

0

Related Manuals for Eclipse Pioneer S148

Summary of Contents for Eclipse Pioneer S148

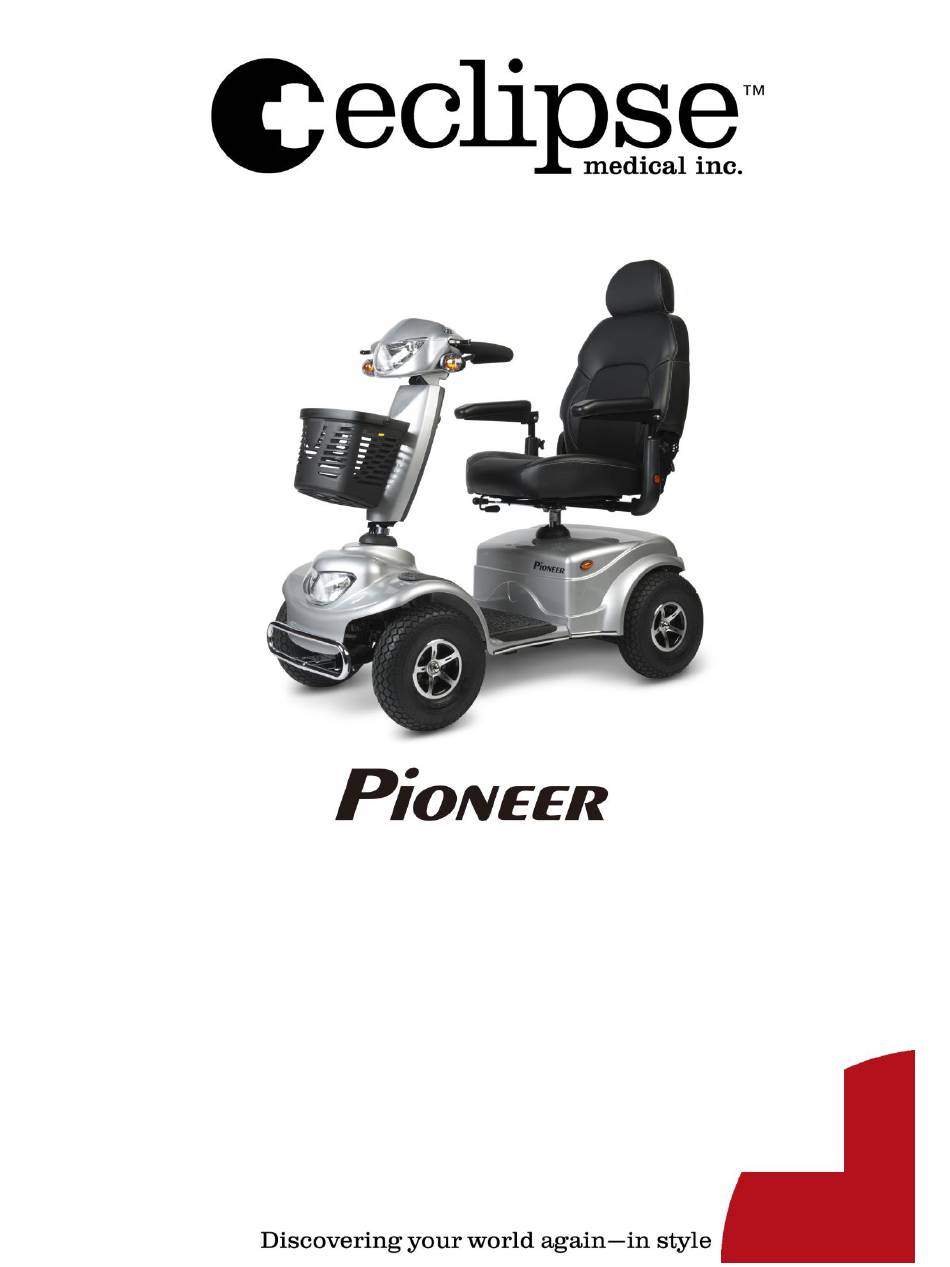

  • Page 1 S148 Owner’s Manual...

  • Page 2: Table Of Contents

    Table of Contents Contents Introduction ............................ 3 EMI Warning........................... 4 Safety Guidelines ........................... 5 Safety Summery ..........................9 Features ............................10 Free Wheel Mode ......................... 16 Operating Your Scooter ........................ 17 Batteries and Charging ......................... 20 Care and Maintenance ......................... 23 Trouble Shooting ..........................

  • Page 3: Introduction

    Introduction Congratulations on the purchase of your Eclipse scooter. Please carefully read this owner’s manual before attempting to use your scooter. After reading the manual if you still have any questions or concerns please feel free to contact your local authorized dealer.

  • Page 4: Emi Warning

    EMI Warning Electromagnetic interference This vehicle immunity level which should protect from Electromagnetic Interference (EMI) from Radio Wave Sources. The rapid development of electronics, especially in the area of communications, has saturated our environment with electromagnetic (radio) waves that are emitted by television, radio and communication signals. These EM waves are invisible, and their strength increases as one approach the source.

  • Page 5: Safety Guidelines

    If there is any information in this manual which you don't understand, or if you require additional assistance for setup or operation, please contact your local Eclipse Medical dealer. Failure to follow the instructions, warnings, and notes in this manual and those located on your product can result in personal injury or product damage and will void your product warranty.
  • Page 6 WARNING Do not carry passengers on your scooter or exceed the maximum weight capacity. Carrying passengers on your scooter may affect the center of gravity, resulting in a tip or a fall. Incline information Most buildings have ramps with specified degree of inclination, designed for easy and safe access. Pay attention when driving down an incline and keep the scooter's speed adjustment set to the slowest speed setting to ensure a safe controlled descent.
  • Page 7 Braking information Your scooter is equipped with a powerful braking system: Electromagnetic regenerative brake: Uses electricity to rapidly slow the vehicle when the throttle control lever returns to the center/stop position and act as a parking brake. Manual brake: Activates mechanically when power is removed from the system for any reason. The manual brake is not a parking brake.
  • Page 8 Stairs and elevators Electric scooters are not designed to travel up or down on stairs or escalators. Always use an elevator. Batteries Scooter batteries are very heavy and should be lifted by two people. Always protect the batteries from freezing. Charging a frozen battery may result in damage to the battery. Transport Do not remain seated in your scooter while traveling in a motor vehicle.

  • Page 9: Safety Summery

    Do not expose the scooter to direct rain or high humidity as it may cause it to malfunction (electrically or mechanically). • Always make sure that the batteries are sufficiently charged before setting out on a journey. • Do not use parts, accessories or adapters other than those authorized by Eclipse Medical Inc.

  • Page 10: Features

    Features Controls (Digital dashboard) The tiller includes a speed adjustment knob, throttle control lever, LCD display, half speed button, hazard light button, headlight button, turn signal buttons, and horn button. WARNING User should not modify the controller parameters; it may result in personal injury and damage to your scooter.
  • Page 11 Turn Signals (6 & 7) Right turn signal button (6): • Pressing the button will activate the right turn signal lights. Pressing a second time will turn them off. Left turn signal button (7): • Pressing the button will activate the left turn signal lights. Pressing a second time will turn them off.
  • Page 12 Key Switch (10) Insert the key into the key switch and turn to a vertical position. The scooter is on and ready to drive. When the key is turned to a horizontal position, the scooter is OFF. Tiller Angle Adjustment Lever (11) The tiller angle adjustment lever allows you to position the tiller closer or further away from you.
  • Page 13 3. Odometer The LCD display shows km’s or miles driven. 4. Temperature The LCD display shows current air temperature. 5. Time The LCD display shows current time. 6. Diagnostic fault code If your scooter requires s ervice an image of a wrench will flash on the LCD display along with a code number.
  • Page 14 Adjusting Your Scooter Seat Seat swivel adjustment The seat swivel lever located on the right side of the side allows the seat to rotate in 45-degree increments. You may use this feature to make it easier to transfer in and out of the seat. 1.
  • Page 15 Armrest Width Adjustment The armrest width can be adjusted inward or outward. 1. Loosen the armrest adjustment knobs. 2. Slide the armrests in or out to the desired width. 3. Tighten the armrest adjustment knobs. Armrest height adjustment The armrest height can be adjusted up or down. 1.

  • Page 16: Free Wheel Mode

    Free Wheel Mode Free-wheeling is used when you want to move your unit without riding on it. If for reasons of convenience you need to free wheel your scooter, follow the instructions below. 1. To activate manually, turn the scooter off and remove key. 2.

  • Page 17: Operating Your Scooter

    Operating Your Scooter Getting onto your scooter For your first drive, make sure that you and your scooter are on a level surface. 1. Make sure the scooter is turn is off before sitting on it. 2. Stand at the side of your scooter. 3.
  • Page 18 turn sharply. It will still go gently and with complete stability. Practice in an open area until you are proficient. Reversing requires attention. Be sure your ‘speed control dial’ is turned to ‘slow’ before you reverse. Push the left thumb reverse lever. Remember; when you reverse you must steer in the opposite direction of the way you want to go.
  • Page 19 Control Over Grass, Gravel and Inclines The scooter performs admirably on grass, gravel and on hills. BUT YOU MUST NOT EXCEED THE PARAMETERS ESTABLISHED IN THIS MANUAL. Please refer to the ‘Rules for Safe Use' section. Safety must come first. If you are unsure about a situation, avoid it. Packed gravel, such as on driveways or roads, will present few problems.

  • Page 20: Batteries And Charging

    Batteries and Charging **MANDATORY** Read the battery charging instructions in this manual and in the manual supplied with the battery charger before charging the batteries. Batteries and Charging Your scooter is equipped with maintenance free, sealed lead acid batteries. The batteries require no maintenance other than ensuring that they are properly charged.
  • Page 21 6. When the batteries are fully charged, unplug the charger power cord from the electrical outlet and then from the scooter charger port. **PROHIBITED** • Never use an extension cord to plug in your battery charger. Plug the charger directly into a properly wired standard electrical outlet.
  • Page 22 • If you use your scooter once a week or less, charge its batteries at least once a week for 12 to 14 hours at a time. • Keep your scooter's batteries fully charged. • Avoid fully discharging your scooter's batteries. Doing this will shorten the life of the batteries. How can I ensure maximum battery life? Fully charged deep-cycle batteries provide reliable performance and extended battery life.

  • Page 23: Care And Maintenance

    Care and Maintenance Your scooter requires a minimal amount of care and maintenance. If you do not feel confident in your ability to perform the maintenance listed below, you may schedule inspection and maintenance at your authorized dealer. The following areas require periodic inspection and / or care and maintenance.
  • Page 24 ABS Plastic Shrouds • The front tiller shroud, front shroud, and the rear shroud are formed from durable ABS plastic and are coated with an advanced formula urethane paint. • A light application of car wax will help the shrouds retain their high gloss. Motor Brushes The motor brushes are housed inside of the motor assembly.

  • Page 25: Trouble Shooting

    Trouble Shooting Any electromechanical device occasionally requires some troubleshooting. However, most of the problems that may arise can usually be solved with a bit of thought and common sense. Many of these problems occur because the batteries are not fully charged or because the batteries are worn down and can no longer hold a charge.

  • Page 26: Warranty

    This warranty only covers failures due to defects in materials or workmanship which occurs during normal use and does not cover damage that occurs in shipment or failures which are caused by products not supplied by Eclipse Medical Inc. or failures resulting from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, modification, commercial use, or by anyone other than an authorized dealer, or damage that is attributable to acts of God.

  • Page 27: Specifications

    Specifications S148 Dimensions: L x W x H cm (in) 130(51) x 64(25) x 114(45) Total Weight w/ Batteries kg (lb) 110 (242) Battery _V_Ah x Pcs 12V 50Ah x 2 Charger 24V 5A, Off Board Tires 12” Motor HP / DC24V 2.3 / 1750W (Max) Max.

  • Page 28: Accessories

    Dual Cane Holder CANOPY Scooter Canopy OXYHOLDER Oxygen Holder REARTOTE Rear foldable storage bag WALKHOLDER Walker Holder Eclipse Medical Inc. 110 – 725 Eaton Way Delta, B.C. V3M 6S5 Canada Tel. (604) 540-0114 Fax. (604) 540-0172 www.eclipsemedical.com Eclipse Medical Inc.
