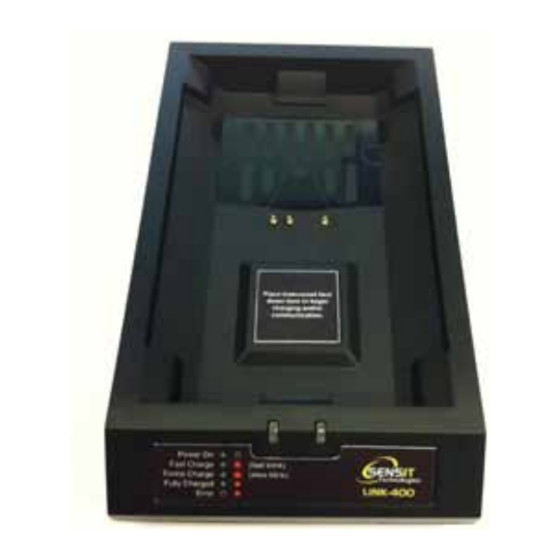

LINK-400
DATA TRANSFER AND CHARGING STATION
F O R U S E W I T H S E N S I T ® P 4 0 0 G A S M O N I TO R S
OPERATION MANUAL
Read and Understand Instructions prior to use.
For use in areas known to be free of combustible gas hazards.
For use in areas that are clean and dry.
Manufactured by:
SENSIT Technologies
851 Transport Drive • Valparaiso, IN 46383 (USA)
Phone: (219) 465-2700 • www.gasleaksensors.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SENSIT Technologies LINK-400
Summary of Contents for SENSIT Technologies LINK-400
- Page 1 LINK-400 DATA TRANSFER AND CHARGING STATION F O R U S E W I T H S E N S I T ® P 4 0 0 G A S M O N I TO R S OPERATION MANUAL Read and Understand Instructions prior to use.
- Page 3 LINK-400 OPERATION MANUAL TABLE OF CONTENTS 4 ....Description 4 ....What is included 5 ....Features 5 ....Connection 6 ....LED Charging Status Indications 7 ....Operating Temperature 7 ....Power Supply 7 ....NiMH Battery Recharging 7 ....Communication...
- Page 4 Description The Link-400 device allows the user to connect a P400 personal gas monitor to communicate with a PC using a USB port. The user can then run the SmartLink software to download logs for easy viewing and saving. Furthermore, the Link-400 can recharge P400 instruments that are equipped with the NiMH battery packs.
- Page 5 Features CRADLE CHARGING PINS COMMUNICATION PIN STATUS INDICATORS USB PORT Connection The Link-400 requires one USB cable (type A-male to type B-male) for both power and communication.
- Page 6 LED Charging Status Indications The green and red LEDs indicate the status of the Link-400. Refer to the table below: Green LED Red LED Status Power on. No P400 (with NiMH pack) connected. Fast Blink P400 with NiMH battery pack is being fast charged.
- Page 7 Link-400 will indicate a trickle charge until the pack returns to an acceptable temperature. Power Supply The Link-400 requires a 5V input voltage at a rated current of at least 1000mA or can be powered from the computers USB port. NiMH Battery Recharging When powered from a USB port on a PC, the charge current is reduced to prevent overloading the PC.
- Page 8 Warranty Your Sensit Link-400 is warranted to be free from defects in materials and workmanship for a period of two years after purchase. If within the warranty period the instrument should become inoperative from such defects the instrument will be repaired or replaced at our option. This...
