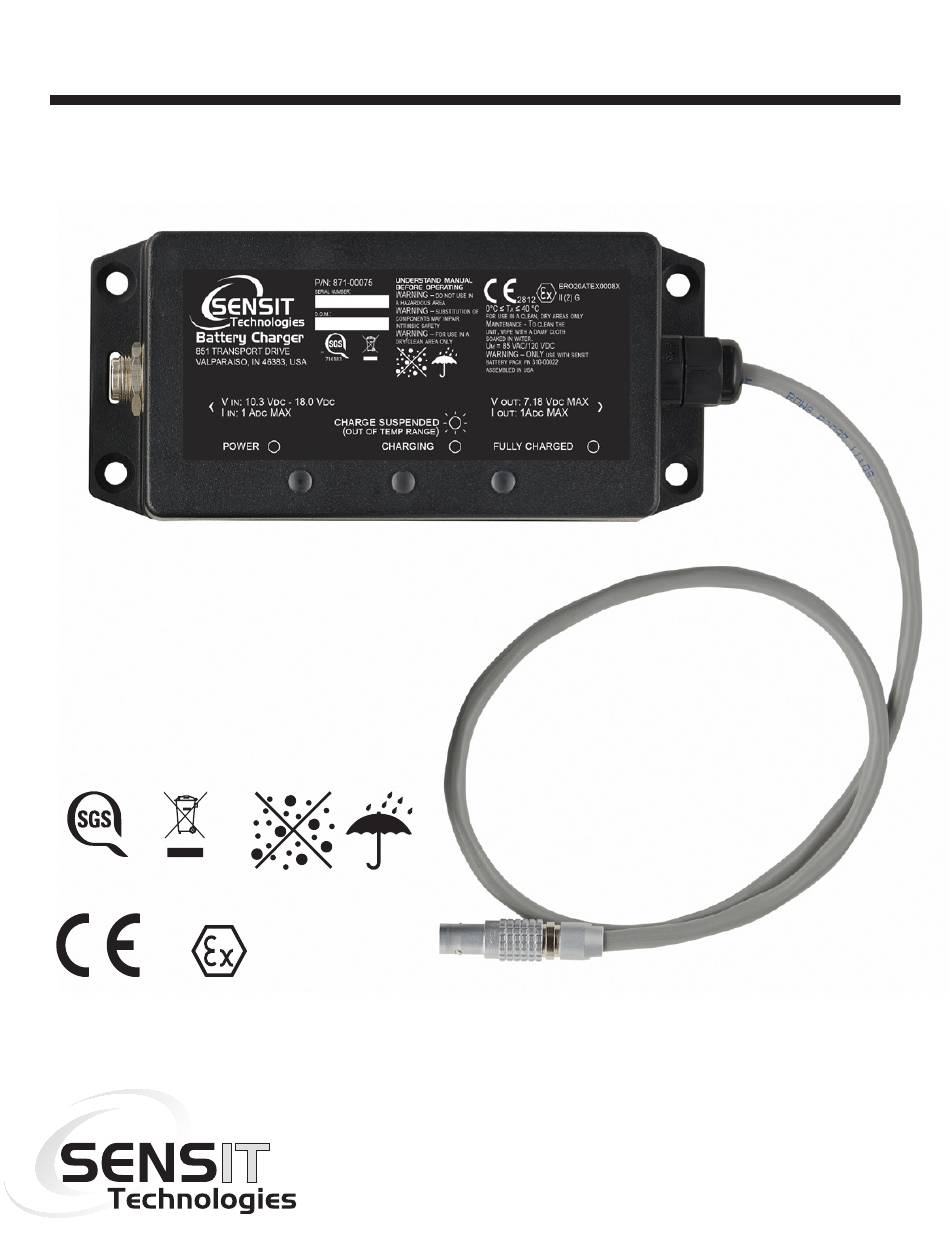

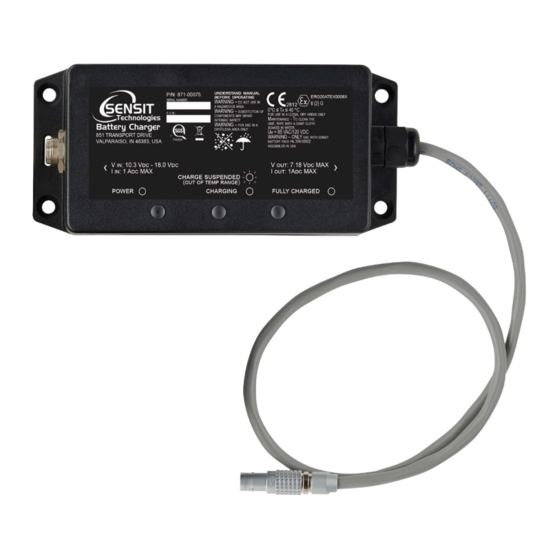

- Page 1 INSTRUCTION MANUAL SENSIT BATTERY CHARGER ® P/N: 871-00075 710183 ERO20ATEX0008X II (2) G 2812 Read and understand instructions before use. 851 Transport Drive • Valparaiso, IN 46383 (USA) Phone: 219.465.2700 • www.gasleaksensors.com...
- Page 2 WARNINGS ⚠ WARNING: Charger shall only be used in a non-hazardous area. ⚠ WARNING: Use only SENSIT Charger (871-00075) for PowerStick (310-00022) ⚠ WARNING: Charge only in a temperature range of 0° to 40° C (32° to 104° F). ⚠ WARNING: To prevent risk of ignition of a flammable atmosphere, battery pack must only be charged in an area known to be non-hazardous.
- Page 3 ( 310 - 00022 ) INSTALLATION / REPLACEMENT ⚠ WARNING: Intrinsically Safe for Use in Class I, Groups C and D, T3 Hazardous Locations when used in a SENSIT Technologies Gas Leak Detector 911-00000-XX. ⚠ WARNING: Use only SENSIT Charger (871-00075).
- Page 4 POWERSTICK ( 310 - 00022 ) INSTALLATION Positive Side Negative Side Recharging the PowerStick is necessary when the display icon displays an empty battery silhouette and flashes a countdown timer in seconds indicating the maximum time before instrument shut down. This can be done while the PowerStick is installed in the instrument or independently.
- Page 5 POWERSTICK REMOVAL Remove the battery sleeve cover by removing the retaining screw (#10 Torx). Depressing the locking tab on the front of the handle with a coin or flat object and pull the handle away from the top or display area of the instrument.
- Page 6 750-00089-DWG-A AD/DC Adapter Assembly: * Mfg pn: PhiHong PSAC12R-120 * SENSIT PN: 871-00077 (International adapters) 871-00078 (North American adapter) * Input: 100-240VAC, 0.5A, 50/60Hz * Output: 12VDC SENSIT Battery Charger: * SENSIT PN: 871-00075 SENSIT PowerStick: * SENSIT PN: 310-00022...
- Page 7 POWERSTICK CHARGING ⚠ WARNING: Use only SENSIT Charger (871-00075). ⚠ WARNING: To prevent risk of ignition of a flammable atmosphere, battery pack must only be charged in an area known to be non- hazardous. ⚠ WARNING:: Charging must be done in a dry/dust free environment.
- Page 8 NOTES ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________...
- Page 9 NOTES ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________...
- Page 10 NOTES ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________...
- Page 11 Sensit Technologies LLC has met its national obligations to the EU WEEE Directive. Sensit Technologies LLC has also elected to join WEEE Compliance Schemes in some countries to help manage customer returns at end-of-life.
-
Page 12: Warranty
Chargers out of warranty will be repaired for a service charge. Internal repair or maintenance must be completed by a SENSIT Technologies authorized technician. Violation will void warranty. Units must be returned postpaid, insured and to the attention of the Service Dept.
